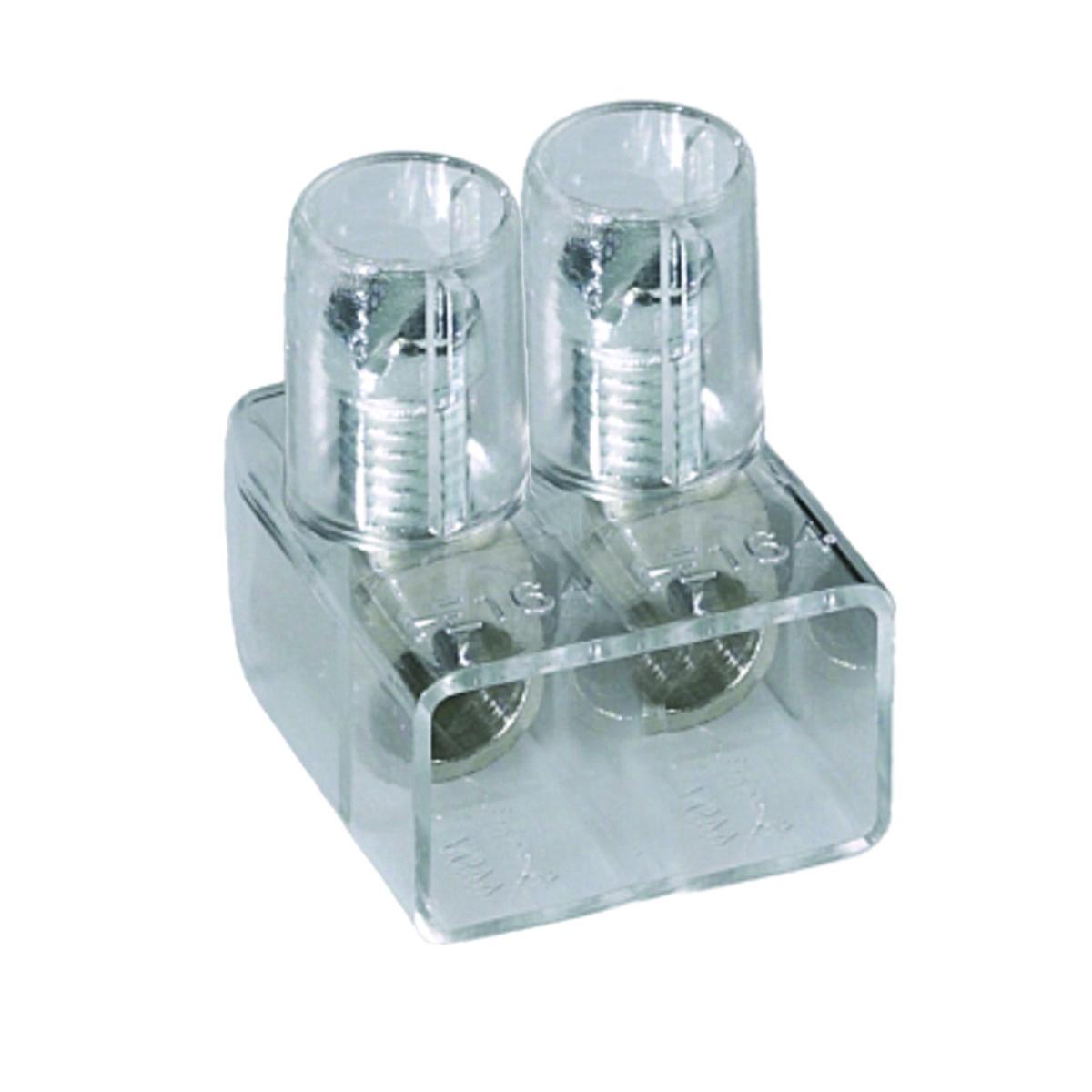

Top clamp HE
TOP CLAMP HE1101 2x10 (50)
Article number: Suppl. article no:
1440881
HE1101 POLYKARB
to see price and stock
Top clamp suitable for connecting one or more wired conductors in an installation box, the internal wiring system of appliances or to lighting fixtures.
- Article number: 1440881
- Suppl. article no: HE1101 POLYKARB
- Ean no: 7392370000111
- Material class QE919B
Technical data
- Packagin Size: 50 ST
- Type: HE1101
- Number of poles: 1
- Number of clamp positions per pole: 2
- Colour: Other
- Connectable conductor cross section solid-core: 10 mm²
- Width: 16.2 mm
- Rated voltage: 400 V
- Type of electrical connection 1: Screw connection
- Connection position: Sideways
- Closing plate required: No
- Operating temperature: 125 °C
- Explosion-tested version 'Ex e': No
- Material insulation body: Thermoplastic
- Mounting method: Other
- Rated current In: 20 A
- Transparent: Yes
