Rutab

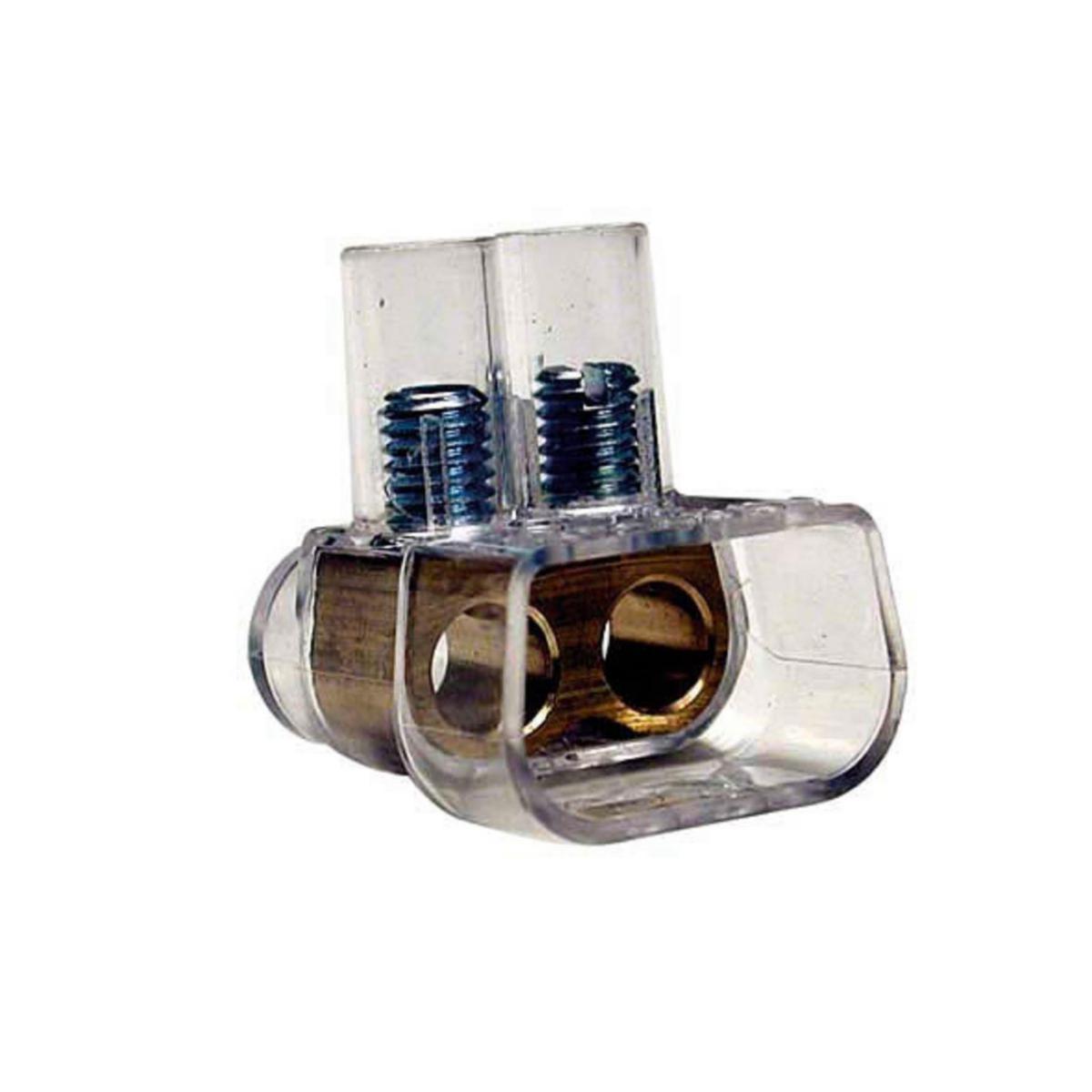

Connection terminal double
TERMINAL BLOCK 2X10MM2
Article number: Suppl. article no:
1440833
1440833
to see price and stock
Transparent polycarbonate cover (UL94-VO), brass clamp and galvanized steel screw. Halogen-free. Max area is indicated for coupling two wires with the same area, 6 mm² meaning that two 6mm² conductors can be connected in the clamp. It is also possible to connect multiple wires with the same maximum area as two wires with the specified maximum area, so for 6 mm² there can be max 8 wires of 1.5 mm² or 4 wires of 2.5 mm².
Material Plastic Polycarbonate transparent UL94-V0
Material Insert Brass
Material Screws Galvanised steel
Temperature range up to +85°C
Standard EN 60998-1:2004, EN 60335-1:2006
EU Customs Statistics No. 85369010
UNSPSC code 39121407
Halogen-free
Material Plastic Polycarbonate transparent UL94-V0
Material Insert Brass
Material Screws Galvanised steel
Temperature range up to +85°C
Standard EN 60998-1:2004, EN 60335-1:2006
EU Customs Statistics No. 85369010
UNSPSC code 39121407
Halogen-free
- Article number: 1440833
- Suppl. article no: 1440833
- Ean no: 7332291016778
- Material class QE9120
Technical data
- Packagin Size: 1 FRP/10 FRP
- Number of poles: 1
- Number of clamp positions per pole: 2
- Connectable conductor cross section solid-core: 10 mm²
- Connectable conductor cross section multi-wired: 10 mm²
- Rated voltage: 400 V
- Type of electrical connection 1: Screw connection
- Material insulation body: Other
- Transparent: Yes
