Rutab

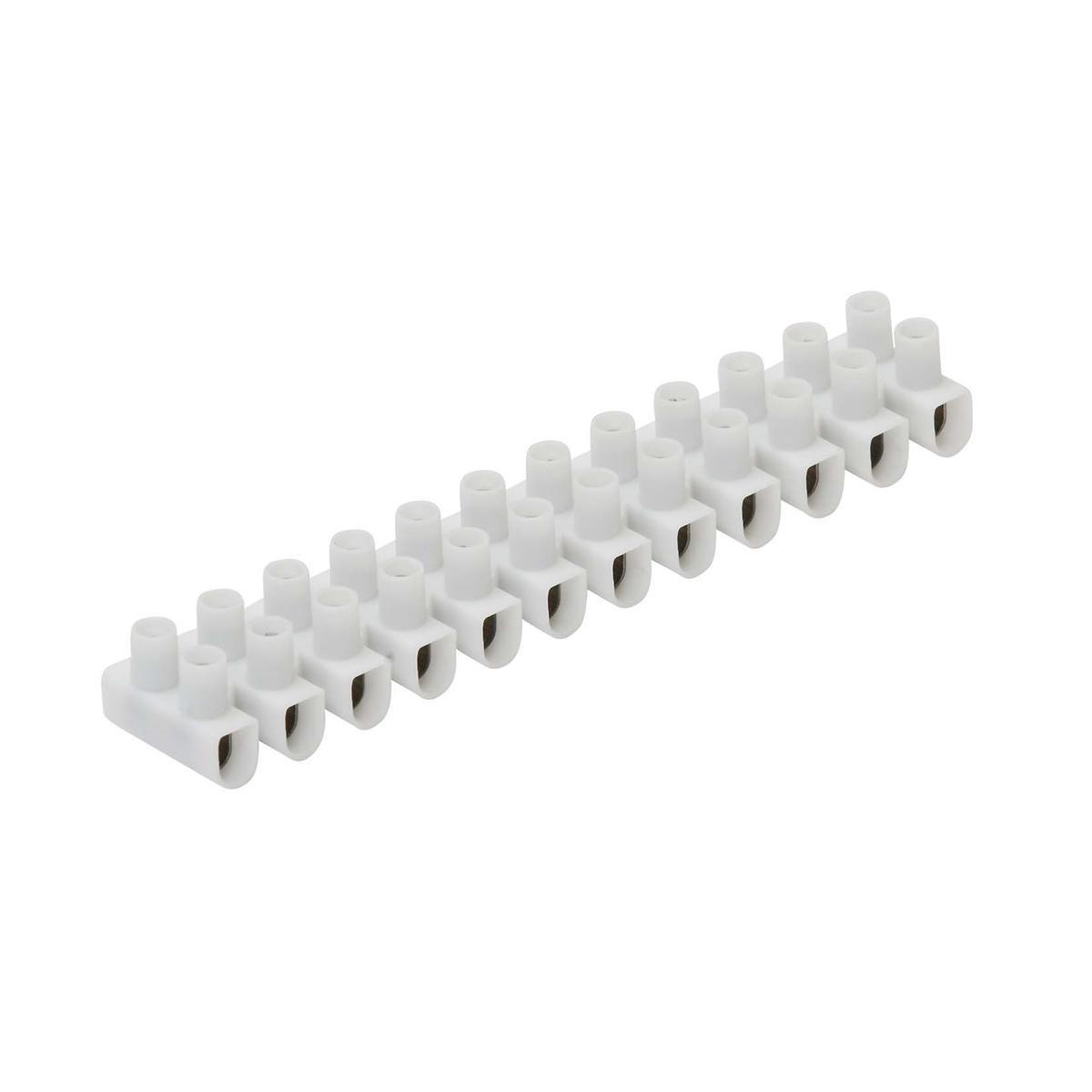

Connection strip 12 pole, T 85
CONECTOR STRIP PP 1-4MM2
Article number: Suppl. article no:
1441172
1441172
to see price and stock
Soft white strip of self-extinguishing HDPE, low without base. S-marked, N, D, FI, VDE, ÖVE, CCA and others.
- Article number: 1441172
- Suppl. article no: 1441172
- Ean no: 9006604141669
- Material class QE9120
Technical data
- Packagin Size: 1 ST/10 ST
- Number of poles: 12
- Number of clamp positions per pole: 2
- Colour: White
- Connectable conductor cross section solid-core: 1-4 mm²
- Connectable conductor cross section fine-strand without cable end sleeve: 1-2.5 mm²
- Width: 94.9 mm
- Depth: 16.6 mm
- Height: 13 mm
- Connectable conductor cross section multi-wired: 1-2.5 mm²
- Rated voltage: 450 V
- Type of electrical connection 1: Screw connection
- Material insulation body: Other
- Mounting method: Direct mounting
- REACH Date: 2022-12-01
- REACH Information obligation: No
