Rutab

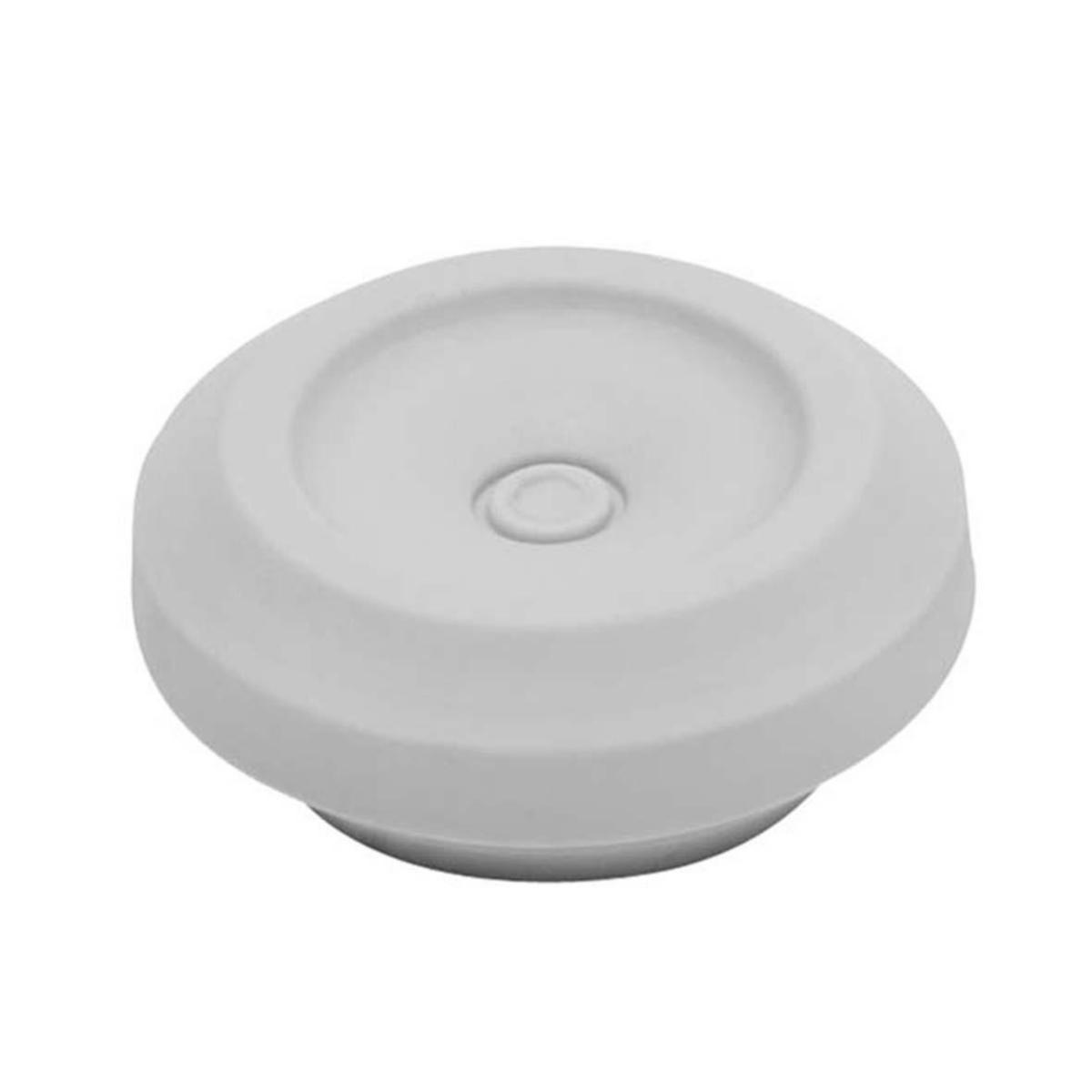

Bushing TSS - Rutab
TSS RAL7035 M16
Article number: Suppl. article no:
1475711
1475711
to see price and stock
TSS is an inexpensive and simple grommet that replaces twisting sleeves in unthreaded holes with a thickness of 0.5-4.5 mm. Suitable for a large range of cable diameters with retained enclosure class. (IP67). The cable can also be angled without affecting the IP class. No tools are needed for assembly, the cable can be easily pushed through the TSS' pop-out membrane.
- Article number: 1475711
- Suppl. article no: 1475711
- Ean no: 7394270100373
- Material class QE750B
Technical data
- Packagin Size: 1 PCS/50 PCS/4000 PCS
- Nominal diameter: 16 mm
- Sealing range: 5-10 mm
- For wall thickness: 0.5-3 mm
- Model: Trimmable (cut away)
- Colour: Grey
- Material: Plastic
- Degree of protection (IP): IP67
- Halogen free: Yes
- REACH Date: 2022-03-23
- REACH Information obligation: No
