Lapp
Cable gland ST-M

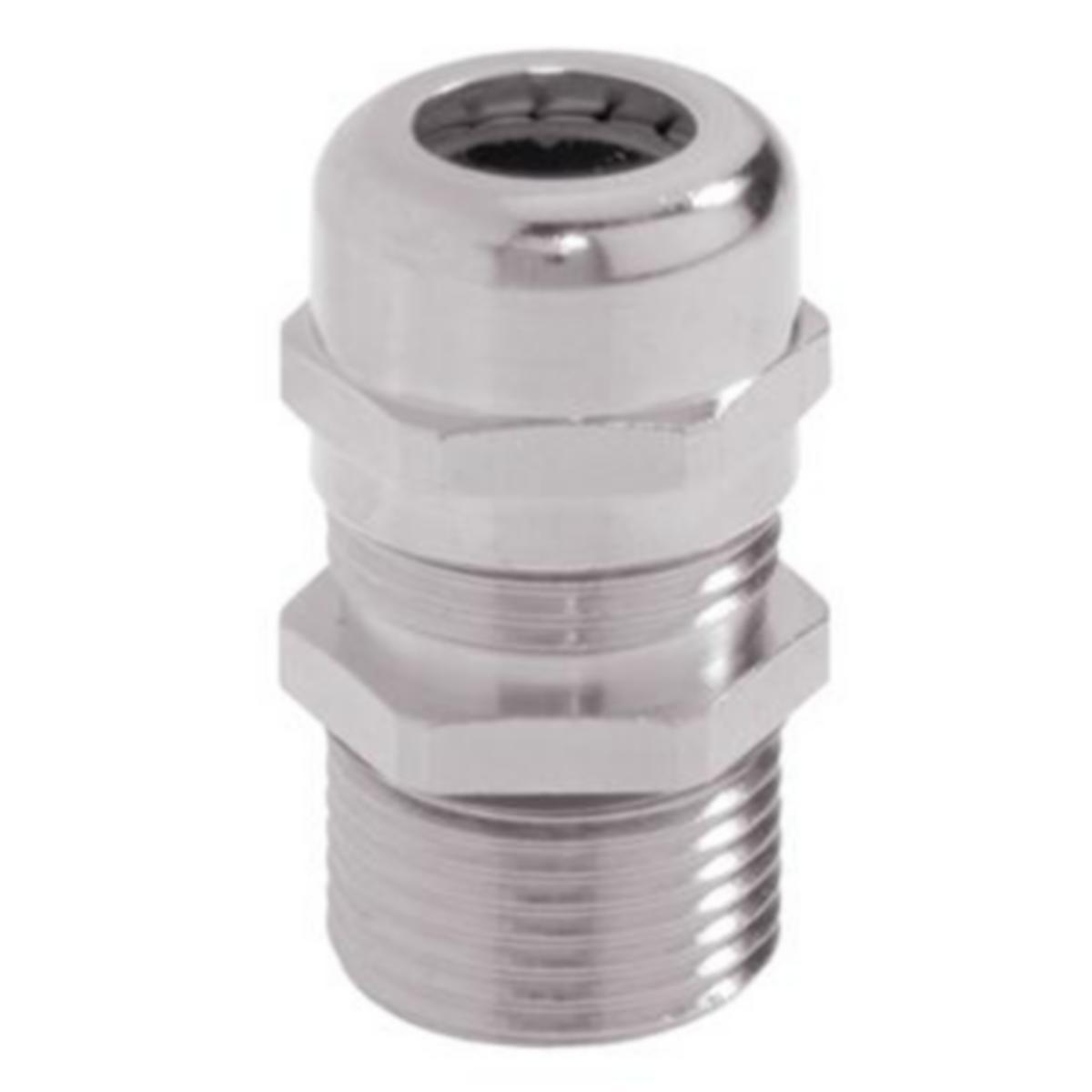

CABLE GLAND BRASS MS-M16 53112010
Article number: Suppl. article no:
1476741
53112010
to see price and stock
SKINTOP® MS-M, robust screw connection in nickel-plated brass for cables up to Ø 98 mm, mechanically durable and with good chemical resistance.
- Article number: 1476741
- Suppl. article no: 53112010
- Ean no: 4044773174137
- Material class QE7560
Technical data
- Model: Straight
- Thread type: Metric
- Nominal thread size metric/PG: 16
- Suitable for cable diameter: 4.5-10 mm
- Pitch thread: 1.5 mm
- Thread length: 7 mm
- Colour: Other
- Wrench width: 20 mm
- Material: Metal
- Material quality: Brass
- Multi seal area: No
- EMC-version: No
- With strain relief: Yes
- Type of sealing: Sealing ring
- Degree of protection (IP): IP68
- Operating temperature: -40-100 °C
- Explosion-tested version: No
- With locknut: No
- Flat cable coupling: No
- Glass-fibre reinforced: No
- Bend radius protection/trumpet flare: No
- Halogen free: No
- Separable screw gland: No
- Surface protection: Nickel-plated
- For Ex-zone gas: None
- For armoured cable: No
- Snapping in opening: No
- Screened: No
- Shock resistant: Yes
- REACH Date: 2022-04-04
- REACH contains candidate substances: Bly
- REACH Information obligation: Yes
