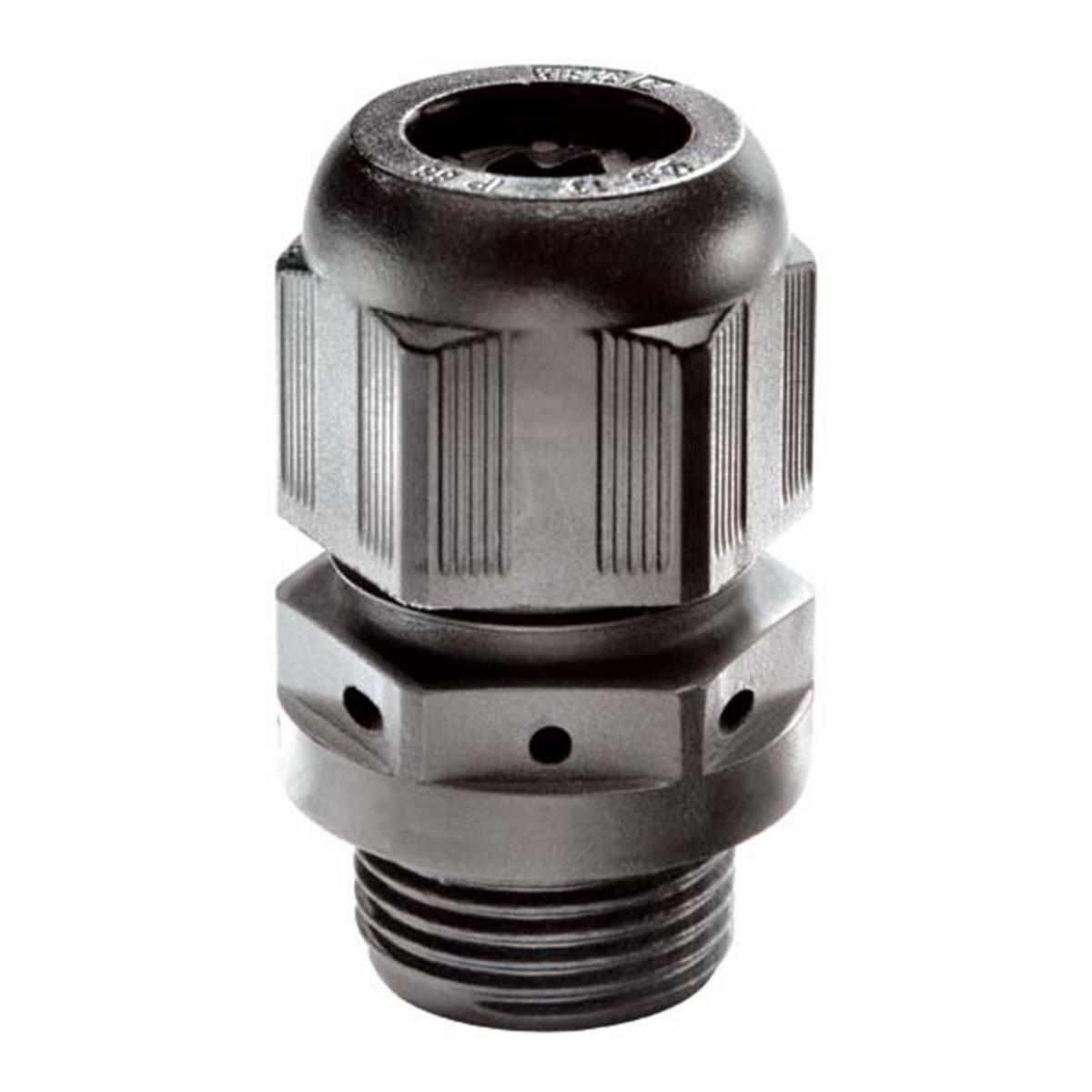

Cable gland plastic with membrane, Ventgland

CABLE GLAND VG PA M20
Article number:
1476193
Suppl. article no:
1476193





 to see price and stock
By using VentGLAND, you can gain many advantages in machine and engine design, lighting manufacturing or industrial tool manufacturing. Use VentGLAND in marine environments and wherever electrical products need to be protected from water. Cable gland and pressure equalization function in the same product. Reduces condensation to a minimum. Meets all important requirements for a cable gland. Big cost savings. No additional components. No extra installation.
  • Article number:
    1476193
  • Suppl. article no:
    1476193
  • Ean no:
    7332291013500
  • Material class
    QE750B
Technical data
  • Model: Straight
  • Thread type: Metric
  • Nominal thread size metric/PG: 20
  • Suitable for cable diameter: 6-13 mm
  • Pitch thread: 1.5 mm
  • Thread length: 10 mm
  • Colour: Black
  • RAL-number: 9005
  • Wrench width: 24 mm
  • Material: Plastic
  • Material quality: Polyamide (PA)
  • Multi seal area: No
  • EMC-version: No
  • Type of sealing: Sealing ring
  • Degree of protection (IP): IP68
  • Operating temperature: -40-100 °C
  • Explosion-tested version: No
  • With locknut: No
  • Flat cable coupling: No
  • Glass-fibre reinforced: Yes
  • Bend radius protection/trumpet flare: No
  • Halogen free: Yes
  • For armoured cable: No
  • Hexagon angular dimension: 27 mm
  • Shock resistant: Yes
