Rutab

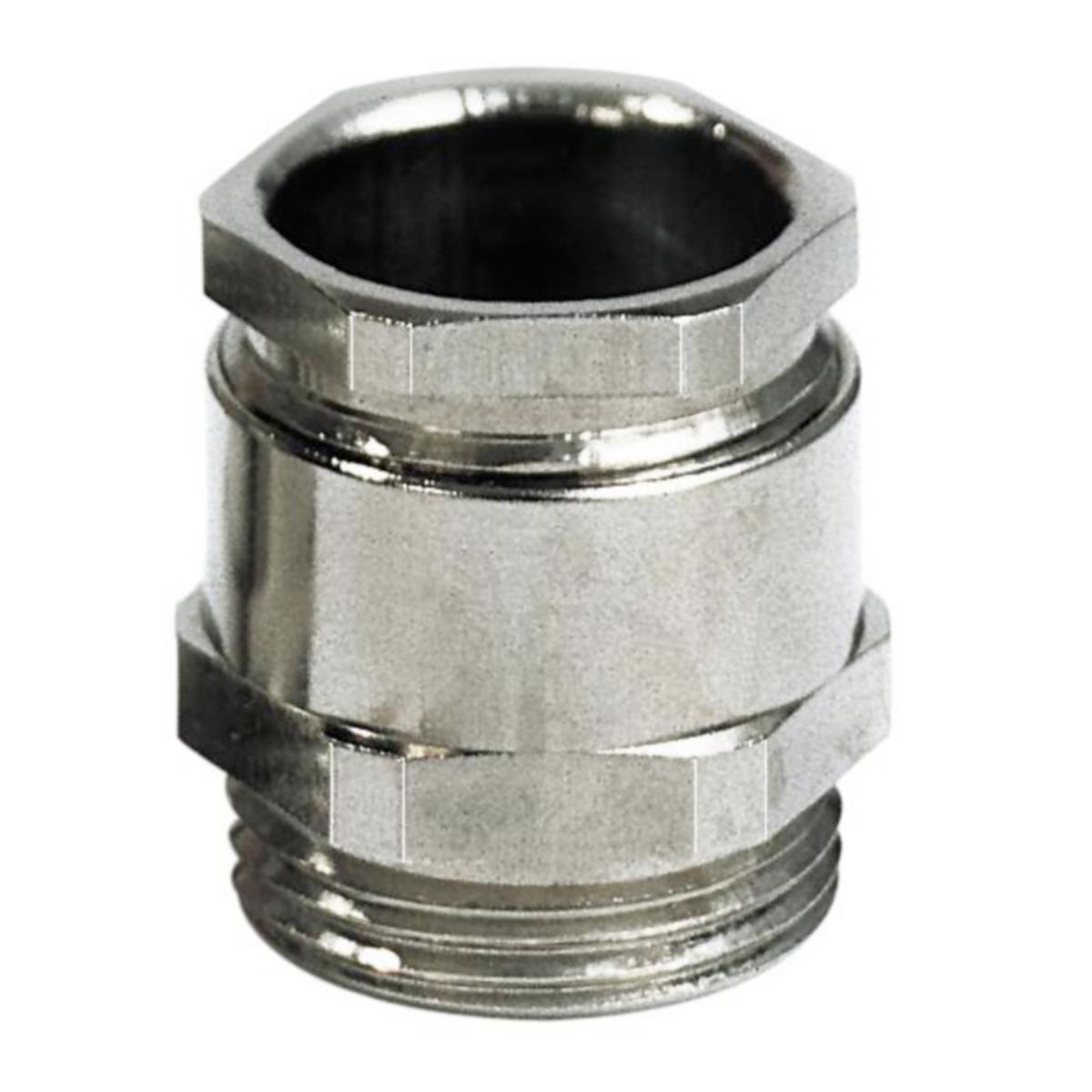

Cable gland Brass, Metric thread
CABLE GLAND MULTIPLE PERF M16 12M1609PL
Article number: Suppl. article no:
1476071
1476071
to see price and stock
Cable gland made of nickel-plated brass with metric thread. Comes with threaded hexagonal outer sleeve in accordance with EN 50262 and cuttable neoprene seal and two plates of galvanized steel. 1476070: Only supplied with fixed seal 4-8 mm.
- Article number: 1476071
- Suppl. article no: 1476071
- Ean no: 7332291007493
- Material class QE750B
Technical data
- Packagin Size: 1 ST/100 ST
- Model: Straight
- Thread type: Metric
- Nominal thread size metric/PG: 16
- Suitable for cable diameter: 5-10 mm
- Pitch thread: 1.5 mm
- Thread length: 5 mm
- Wrench width: 18 mm
- Material: Metal
- Material quality: Brass
- Multi seal area: No
- EMC-version: No
- Type of sealing: Cut-out ring
- Degree of protection (IP): IP54
- Operating temperature: -20-80 °C
- Explosion-tested version: No
- With locknut: No
- Flat cable coupling: No
- Bend radius protection/trumpet flare: No
- Halogen free: Yes
- Surface protection: Nickel-plated
- For armoured cable: No
- Hexagon angular dimension: 20 mm
- Shock resistant: Yes
- REACH Date: 2023-03-15
- REACH contains candidate substances: Bly
- REACH Information obligation: Yes
