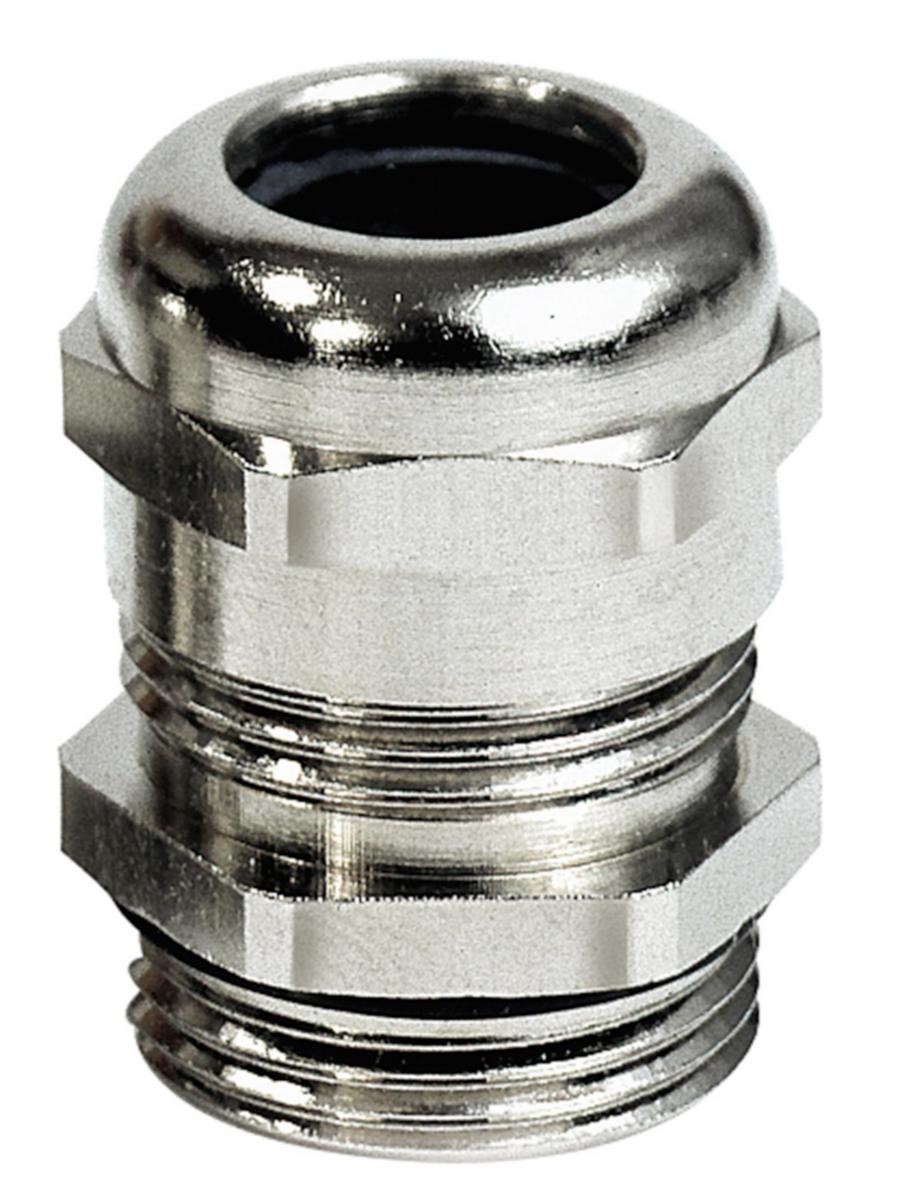

Cable gland Brass "Perfect"
CABLE GLAND BRASS M16 5-9 50.616 M
Article number: Suppl. article no:
1476002
1476002
to see price and stock
Made of nickel-plated brass with metric thread. Good strain relief features and an insulating inner surface with neoprene seal and o-ring at the outer thread.
- Article number: 1476002
- Suppl. article no: 1476002
- Ean no: 4024092025396
- Material class QE7500
Technical data
- Packagin Size: 1 ST/100 ST
- Model: Straight
- Thread type: Metric
- Nominal thread size metric/PG: 16
- Suitable for cable diameter: 5-9 mm
- Pitch thread: 1.5 mm
- Thread length: 5 mm
- Wrench width: 17 mm
- Material: Metal
- Material quality: Brass
- Multi seal area: No
- EMC-version: No
- With strain relief: Yes
- Type of sealing: Sealing ring
- Degree of protection (IP): IP68
- Operating temperature: -20-100 °C
- Explosion-tested version: No
- With locknut: No
- Flat cable coupling: No
- Bend radius protection/trumpet flare: No
- Halogen free: Yes
- Surface protection: Nickel-plated
- For armoured cable: No
- Hexagon angular dimension: 19 mm
- Shock resistant: Yes
- REACH Date: 2022-03-23
- REACH contains candidate substances: Bly
- REACH Information obligation: Yes
