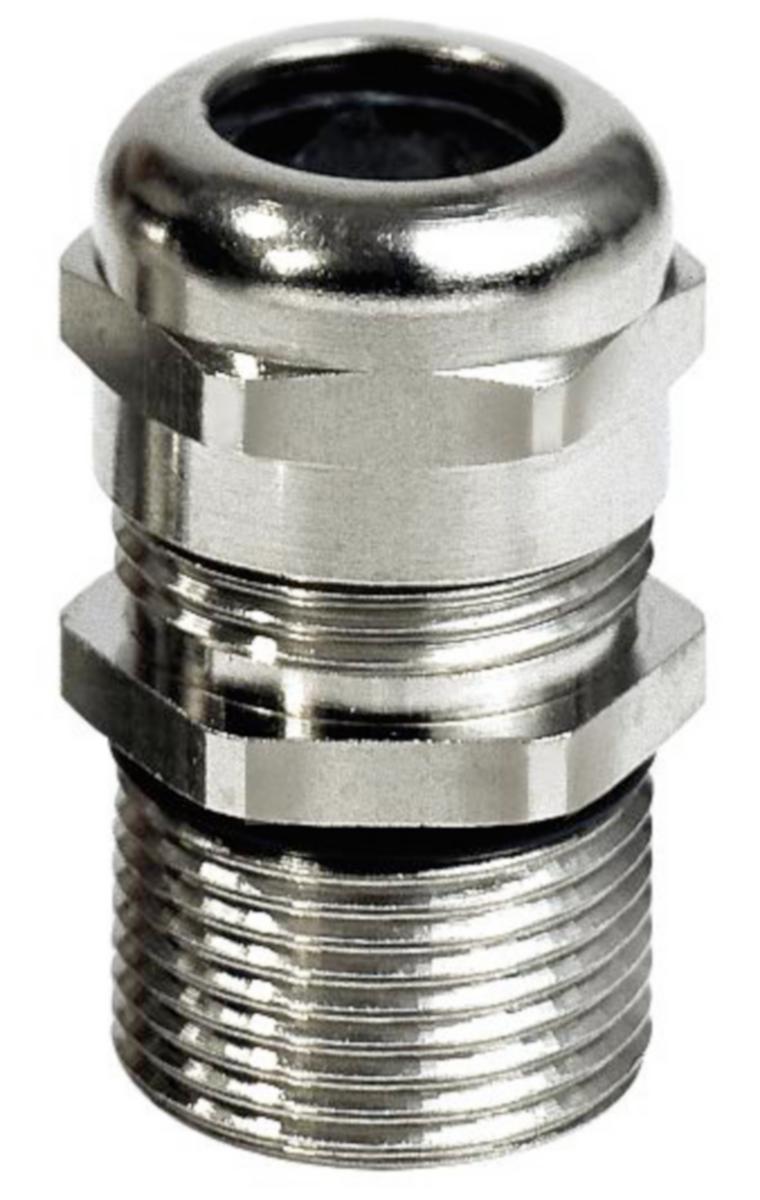

Cable gland brass “Perfect" EMC Metric long thread
CABLE GLAND BRASS EMC M20 LT Long thread 50.620M/EMV/L
Article number: Suppl. article no:
1476033
1476033
to see price and stock
EMC PERFECT cable gland made of nickel-plated brass designed for shielded cable with braid. Equipped with metric thread. Easy to mount - the cable's shield is pressed down to the bottom of the cable gland using the plastic insert. Very good strain relief properties. Supplied with neoprene seal and Buna N O-ring on the outside thread. Protection class IP68 up to 5 bar
- Article number: 1476033
- Suppl. article no: 1476033
- Ean no: 7332291004485
- Material class QE750A
Technical data
- Packagin Size: 1 ST/100 ST
- Model: Straight
- Thread type: Metric
- Nominal thread size metric/PG: 20
- Suitable for cable diameter: 9-13 mm
- Pitch thread: 1.5 mm
- Thread length: 10 mm
- Wrench width: 22 mm
- Material: Metal
- Material quality: Brass
- Multi seal area: No
- EMC-version: Yes
- With strain relief: Yes
- Type of sealing: Sealing ring
- Degree of protection (IP): IP68
- Operating temperature: -20-100 °C
- Explosion-tested version: No
- With locknut: No
- Flat cable coupling: No
- Bend radius protection/trumpet flare: No
- Halogen free: Yes
- Surface protection: Nickel-plated
- For armoured cable: No
- Hexagon angular dimension: 24 mm
- Shock resistant: Yes
- REACH Date: 2022-03-23
- REACH contains candidate substances: Bly
- REACH Information obligation: Yes
