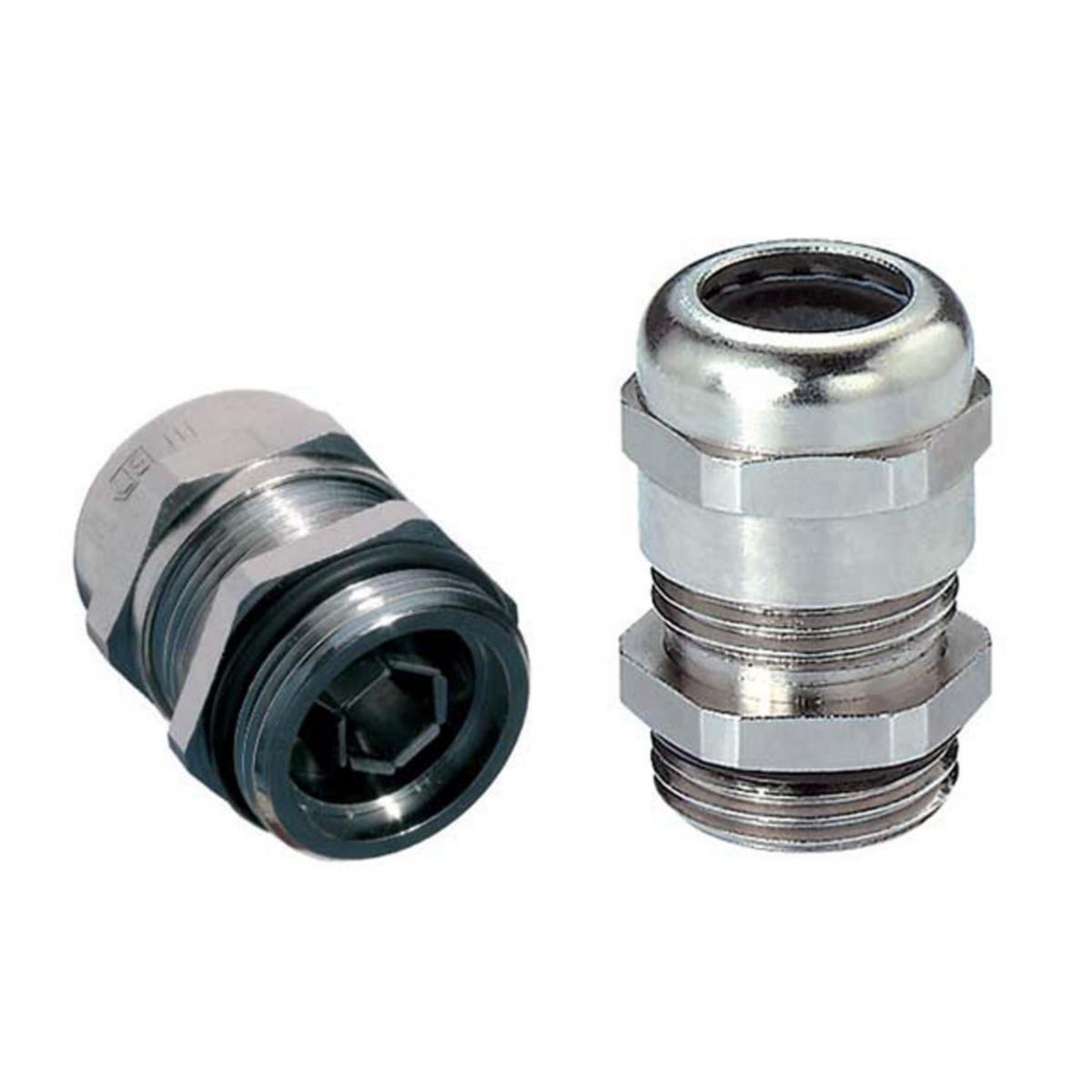

Cable gland EMC
CABLE GLAND BRASS PERF EMC M50
Article number: Suppl. article no:
1475927
1475927
to see price and stock
EMC cable gland with contact springs. For shielded cable. Integrated tension relief. Quick and simple EMC connection via contact springs. The construction of the grille insert prevents the cable getting twisted under tension
- Article number: 1475927
- Suppl. article no: 1475927
- Material class QE750B
Technical data
- Packagin Size: 1 ST/5 ST/5 ST
- Model: Straight
- Thread type: Metric
- Nominal thread size metric/PG: 50
- Suitable for cable diameter: 24-35 mm
- Pitch thread: 1.5 mm
- Thread length: 9 mm
- Colour: Silver
- Wrench width: 55 mm
- Material: Metal
- Material quality: Brass
- Multi seal area: No
- EMC-version: Yes
- With strain relief: Yes
- Type of sealing: Sealing ring
- Degree of protection (IP): IP68
- Operating temperature: -20-100 °C
- Explosion-tested version: No
- With locknut: No
- Flat cable coupling: No
- Bend radius protection/trumpet flare: No
- Halogen free: Yes
- Surface protection: Nickel-plated
- For armoured cable: No
- Hexagon angular dimension: 60 mm
- Shock resistant: Yes
- REACH Date: 2022-03-23
- REACH contains candidate substances: Bly
- REACH Information obligation: Yes
