Elko

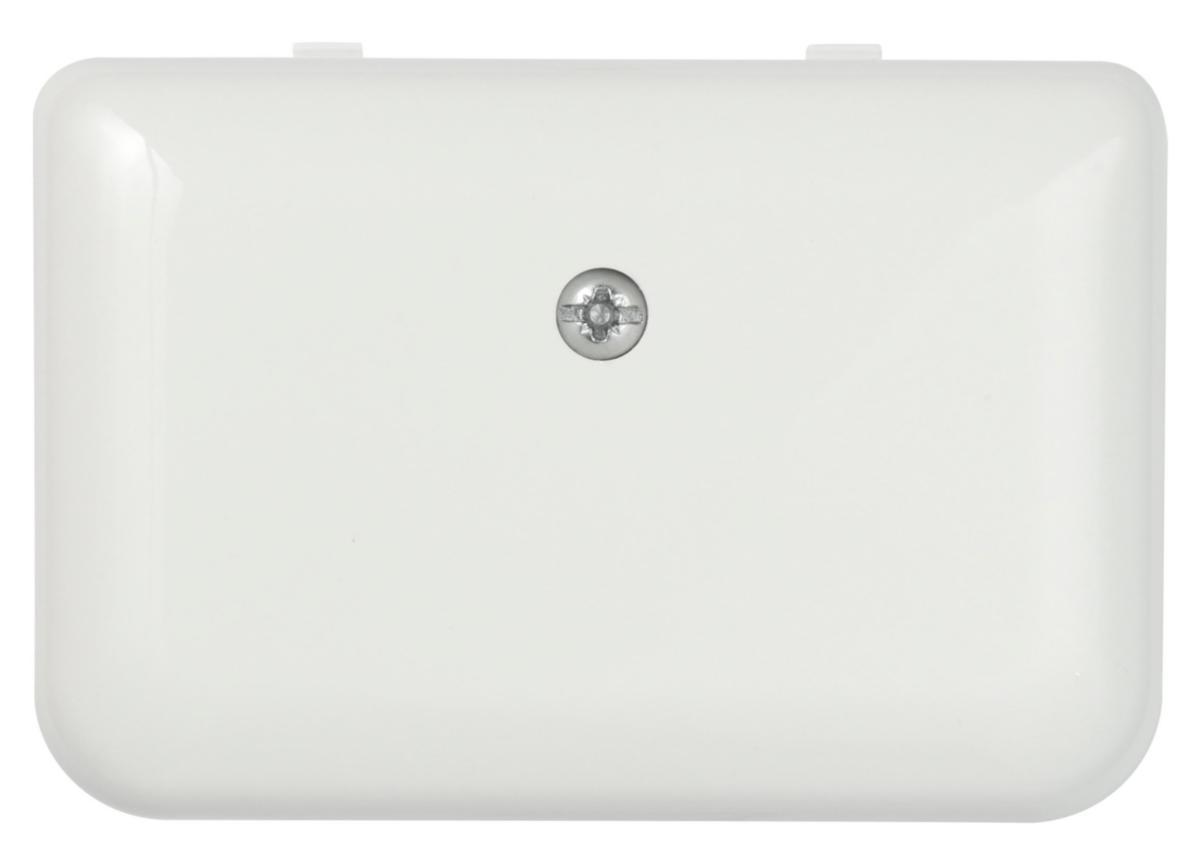

Ball stud box IP21 without terminal block, Elko

JUNCTION BOX EKO07226
Article number:
1438300
Suppl. article no:
EKO07226
‌
‌
‌
‌
‌
 to see price and stock

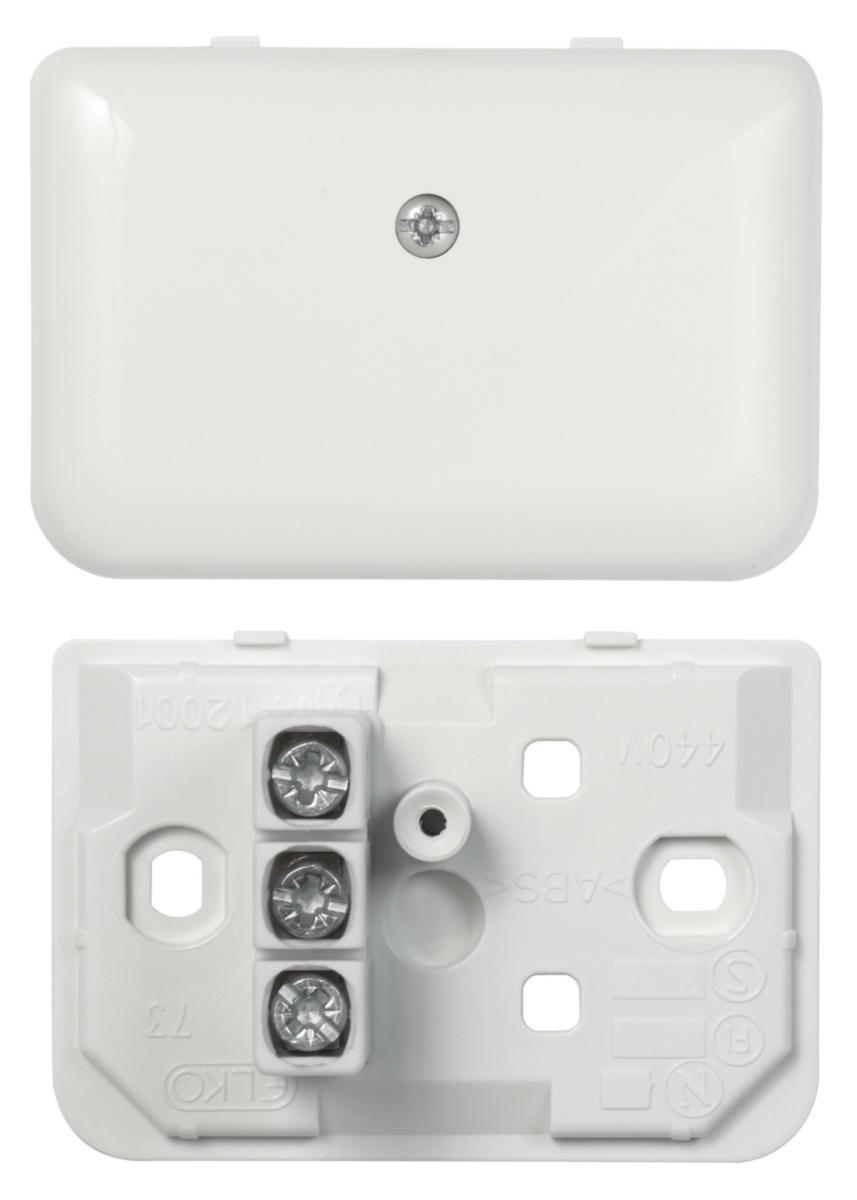

Ball box made of halogen-free thermoplastic. Place for up to three connection terminals. Outlets are made with ELKO's box knife or cutter. Comes without connection terminal blocks
Rated voltage 400V.
Dimensions 64x83x28mm.
Enclosure class: IP20
Mountain white
  • Article number:
    1438300
  • Suppl. article no:
    EKO07226
  • Ean no:
    27020160072263
  • Material class
    QE7000
Technical data
  • Packagin Size: 1 ST/100 ST/100 ST
  • Max. conductor cross section: 2.5 mm²
  • Width: 47 mm
  • Length: 69 mm
  • Depth: 28 mm
  • Cover attachment: Screwed
  • Equipped with: Clamp
  • Colour: White
  • RAL-number: 9010
  • Material: Plastic
  • Shape: Square
  • Inlet from the rear: Yes
  • Type of housing feed-through: None
  • Mounting method: Wall-/ceiling mounting
  • Degree of protection (IP): IP20
  • Halogen free: Yes
  • REACH Date: 2022-08-09
  • REACH Information obligation: No
  • Connection type: Screwed terminal
