Elko

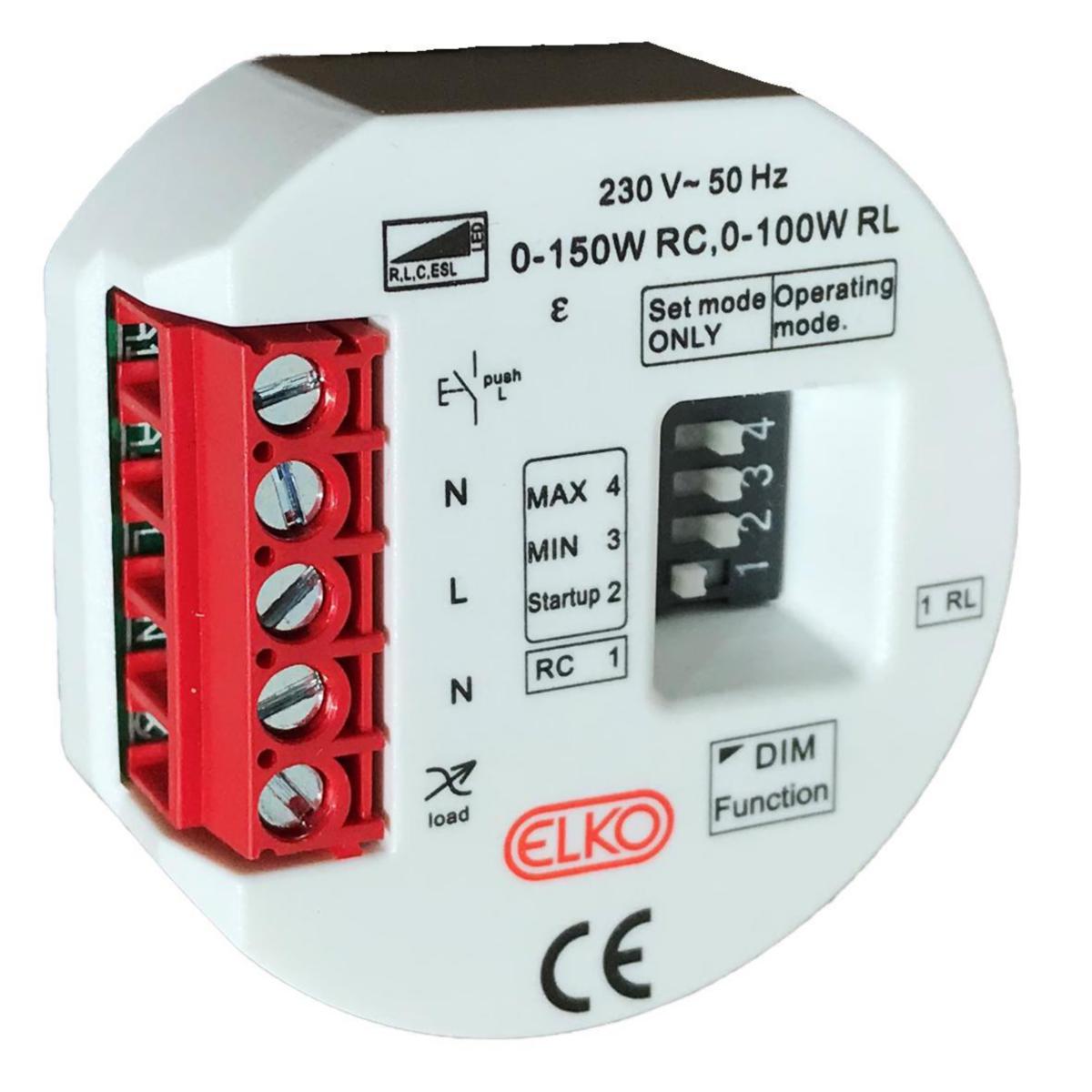

Dimmer puck 3-wire
DIMMER PUCK 3-WIRE 150W LED EKO06966
Article number: Suppl. article no:
1363242
EKO06966
to see price and stock
Built-in dimmer, intended for optional installation between impulse switch and load. Small design makes it suitable for mounting in the box behind the impulse switch. Settings for minimum level, maximum level and for minimum start level. Adjustable dimmer technology between front edge RL and rear edge RC. Electronic short-circuit and automatic overload protection. Settings for minimum level, maximum level and for minimum start level. Adjustable dimmer technology between front edge RL and rear edge RC. Requires zero
- Article number: 1363242
- Suppl. article no: EKO06966
- Ean no: 7020160696601
- Material class QH4600
Technical data
- Packagin Size: 1 ST/10 ST
- App control via Bluetooth: No
- Control voltage: 7-230 V
- Nominal voltage: 220-240 V
- Dimming phase cut-off (trailing edge): Yes
- Dimming phase cut-on (leading edge): Yes
- Nominal power inductive load: 0-100 VA
- Nominal power capacitive load: 0-150 VA
- Nominal power resistive load: 0-150 W
- Applicable with button: Yes
- Method of operation: Push button
- Light value memory: Yes
- Type of load: Universal and LED Retrofit
- Serial dimmer: Yes
- Device width: 47 mm
- Device depth: 18.3 mm
- Device height: 48 mm
- Min. depth of built-in installation box: 40 mm
- Core cross section: 0.5-2.5 mm²
- Mounting method: Built-in installation
- Frequency: 50-60 Hz
- Colour: White
- Halogen free: Yes
- Applicable with infrared button: No
- Applicable with presence indicator: No
- Applicable with movement sensor: No
- Applicable with time switch/timer: No
- Applicable with transmission button: No
- Material: Plastic
- Material quality: Thermoplastic
- Assembly arrangement: Modular device for domestic switching devices
- Substation input: No
- Transparent: No
- Type of fastening: Other
- Surface finishing: Matt
- Surface protection: Untreated
- Connection type: Screwed terminal
- REACH Date: 2022-08-09
- REACH Information obligation: No
