Elko

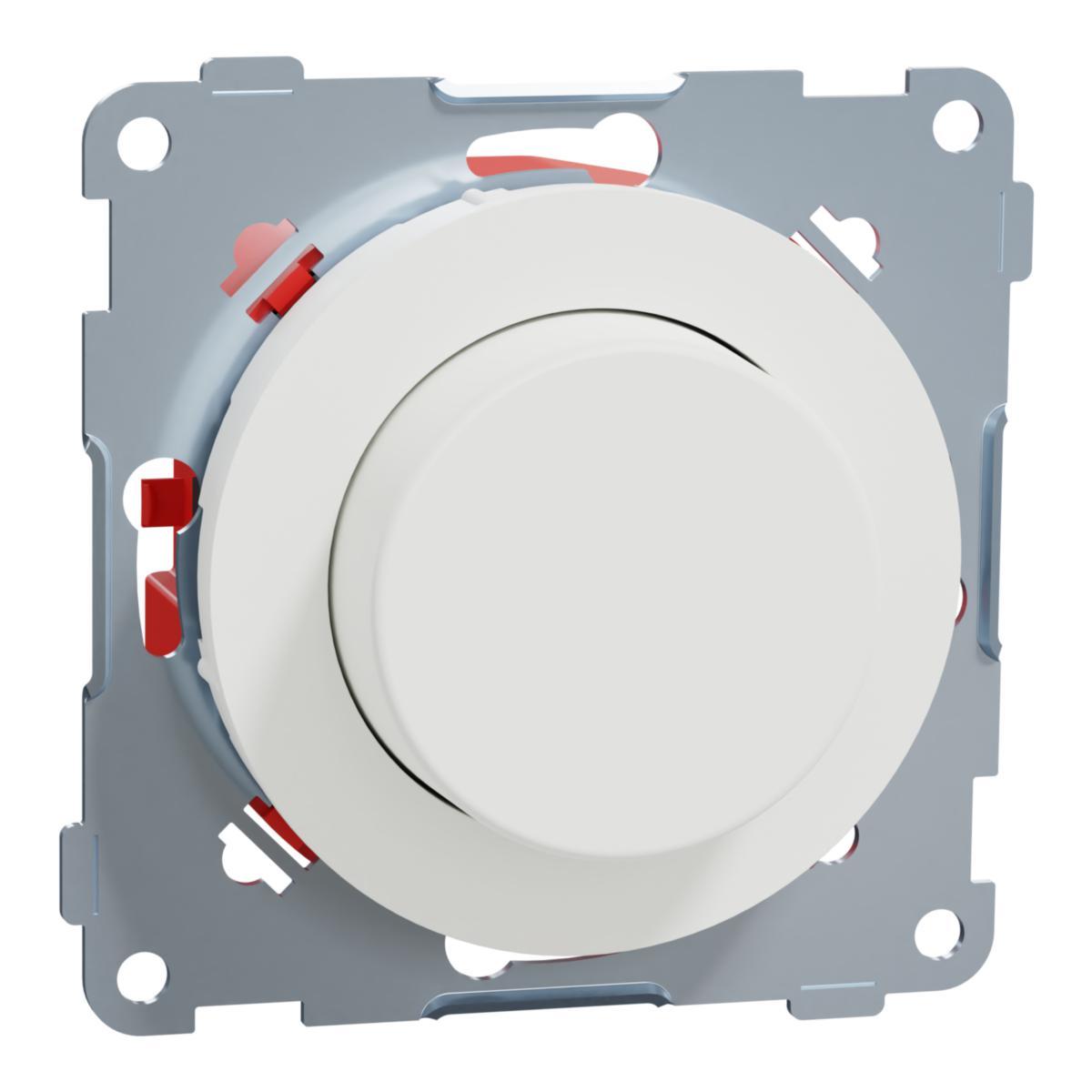

Dimmer 1-10V, One
Rotary dimmer 1-10V
Article number: Suppl. article no:
1360914
EKO50099
to see price and stock
Dimmer, ELKO, One, recessed, 1-10V, rotary, 1-pole, HF device, , IP21, screw connection.
- Article number: 1360914
- Suppl. article no: EKO50099
- Ean no: 7020160500991
- Material class QH4600
Technical data
- Packagin Size: 1 PCS/5 PCS
- Type: EKO50099
- Product series: One
- Type of load: Electronic ballast 1-10 V
- Dimming phase cut-off (trailing edge): No
- Dimming phase cut-on (leading edge): No
- Method of operation: Turn button
- Colour: White
- Type of fastening: Mounting with screw
- Suitable for degree of protection (IP): IP21
- RAL-number (similar): 9003
- Mounting method: Flush-mounted
- Surface finishing: Matt
- Applicable with button: No
- Applicable with presence indicator: No
- Applicable with movement sensor: No
- Applicable with time switch/timer: No
- Applicable with transmission button: No
- Frequency: 50 Hz
- Device width: 71 mm
- Device depth: 47 mm
- Device height: 71 mm
- Light value memory: No
- Nominal voltage: 230 V
- Assembly arrangement: Basic element with full cover plate
- Serial dimmer: No
- Number of units: 1
- App control via Bluetooth: No
- Halogen free: Yes
- Applicable with infrared button: No
- Compatible with Amazon Alexa: No
- Compatible with Apple HomeKit: No
- Compatible with Google Assistant: No
- Core cross section: 1.5-2.5 mm²
- Material: Plastic
- Material quality: Thermoplastic
- IFTTT support available: No
- Min. depth of built-in installation box: 29 mm
- Min. brightness controllable: Yes
- Substation input: No
- Control voltage: 1-10 V
- Transparent: No
- Connection type: Screwed terminal
- Surface protection: Untreated
- REACH Date: 2024-03-01
- REACH contains candidate substances: Bly
- REACH Information obligation: Yes
