Schneider Electric

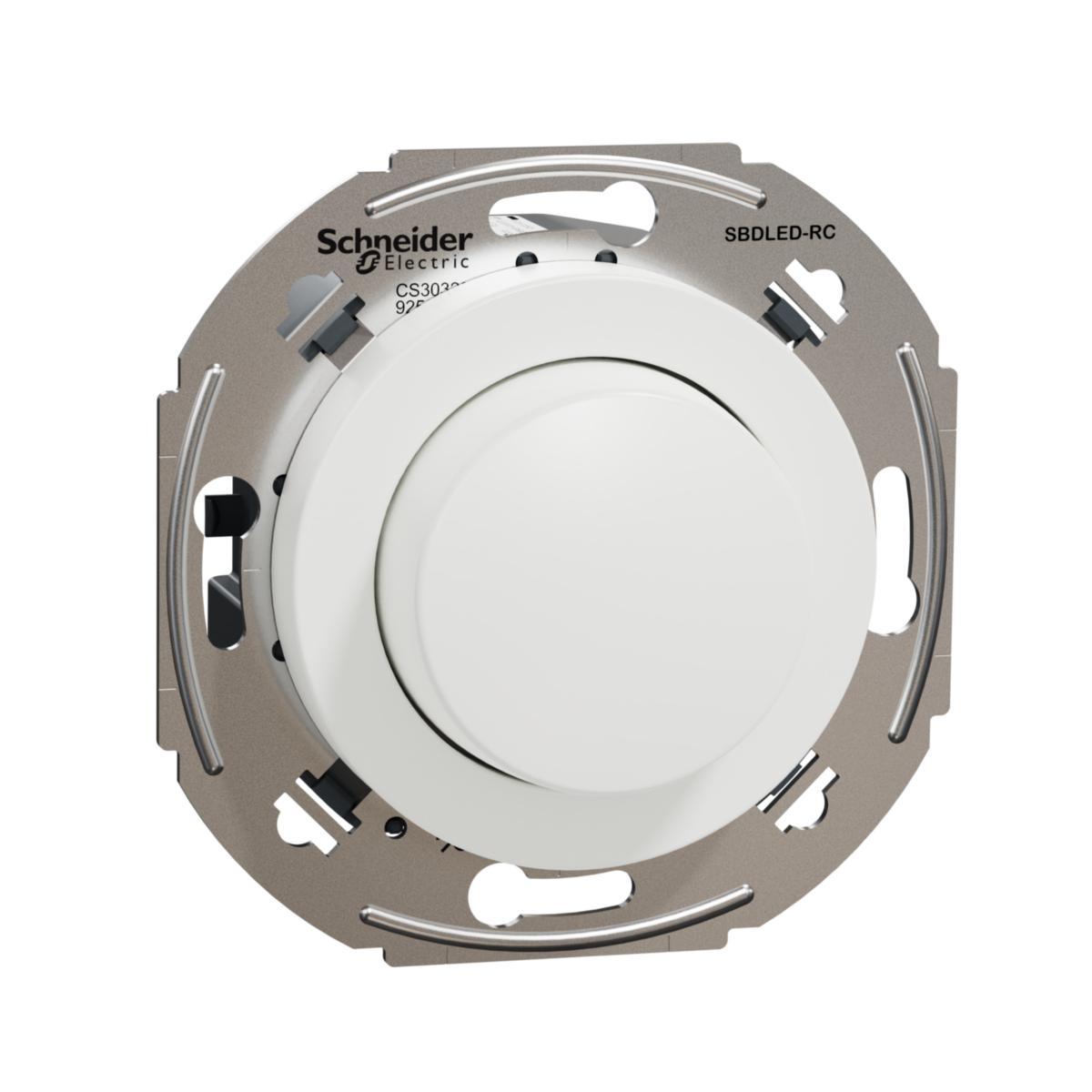

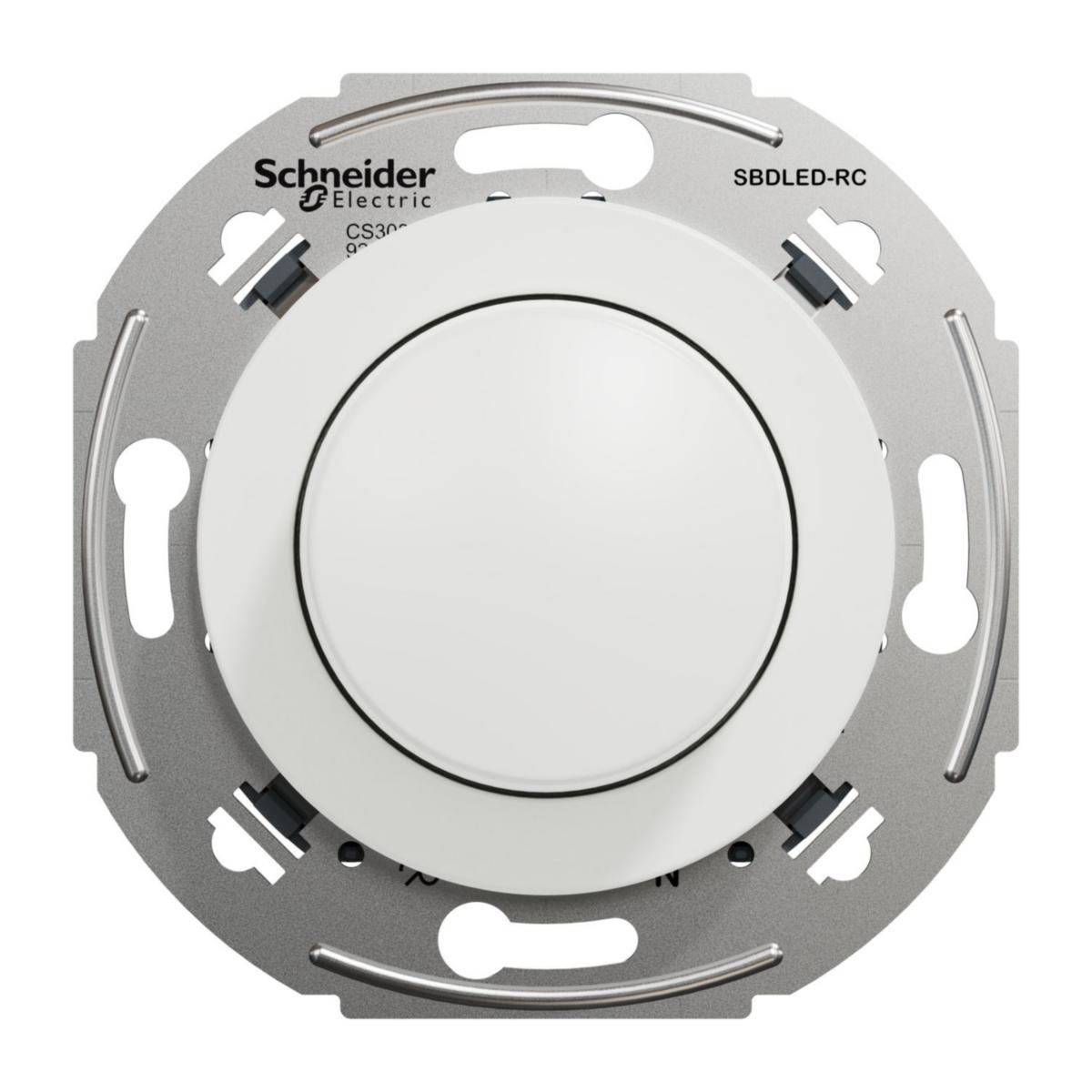

Dimmer LED Renova RC 1-370W
RENOVA LED ROTARY DIMMER LED WDE011628
Article number: Suppl. article no:
1360758
WDE011628
to see price and stock
LED rotary dimmer, 1-370W / VA for light control. When adjusting the rear edge controlled LED lamp (RC) 1-200VA. Incandescent, 230V halogen lamps (R) and most types of electronic (C) transformers 1-370W / VA, screw connection. With the possibility of connecting neutral conductors for better dimming performance, especially for lower loads down to 1W. Without neutral conductor, my power is 3W. Switching on and off via pressure on knob, stair switching. For recessed mounting in device box c / c 60mm, for surface mounting box 35mm is used. Complemented with any Renova frame.
- Article number: 1360758
- Suppl. article no: WDE011628
- Ean no: 3606481056641
- Material class QH2201
Technical data
- Packagin Size: 1 ST/36 ST/36 ST
- Type: WDE011628
- Product series: Renova
- Colour: White
- Type of load: Capacitive load
- Nominal power capacitive load: 10-370 VA
- Nominal power resistive load: 10-370 W
- RAL-number (similar): 9003
- Assembly arrangement: Basic element with central cover plate
- Nominal voltage: 230 V
- App control via Bluetooth: No
- Min. depth of built-in installation box: 40 mm
- Device width: 71 mm
- Device height: 71 mm
- Device depth: 29 mm
- Dimming phase cut-off (trailing edge): Yes
- Dimming phase cut-on (leading edge): No
- Core cross section: 1.5-2.5 mm²
- Type of fastening: Mounting with claw and screw
- Mounting method: Flush-mounted
- Method of operation: Turn/push button
- Frequency: 50-60 Hz
- Serial dimmer: No
- Material quality: Thermoplastic
- Material: Plastic
- Halogen free: Yes
- Light value memory: Yes
- Suitable for degree of protection (IP): IP20
- Applicable with button: Yes
- Applicable with movement sensor: No
- Applicable with presence indicator: No
- Applicable with time switch/timer: No
- Applicable with transmission button: No
- Applicable with infrared button: No
- Transparent: No
- Surface finishing: Glossy
- Surface protection: Untreated
- Substation input: Yes
- Compatible with Amazon Alexa: No
- Compatible with Apple HomeKit: No
- Compatible with Google Assistant: No
- Max. switching power LED: 200 W
- IFTTT support available: No
- Impact strength: IK02
- Connection type: Screwed terminal
- REACH Date: 2022-07-20
- REACH contains candidate substances: Bly | 1,2-dimetoxietan, Dimethyl Glycol, 1,2-dimethoxyethane
- REACH Information obligation: Yes
