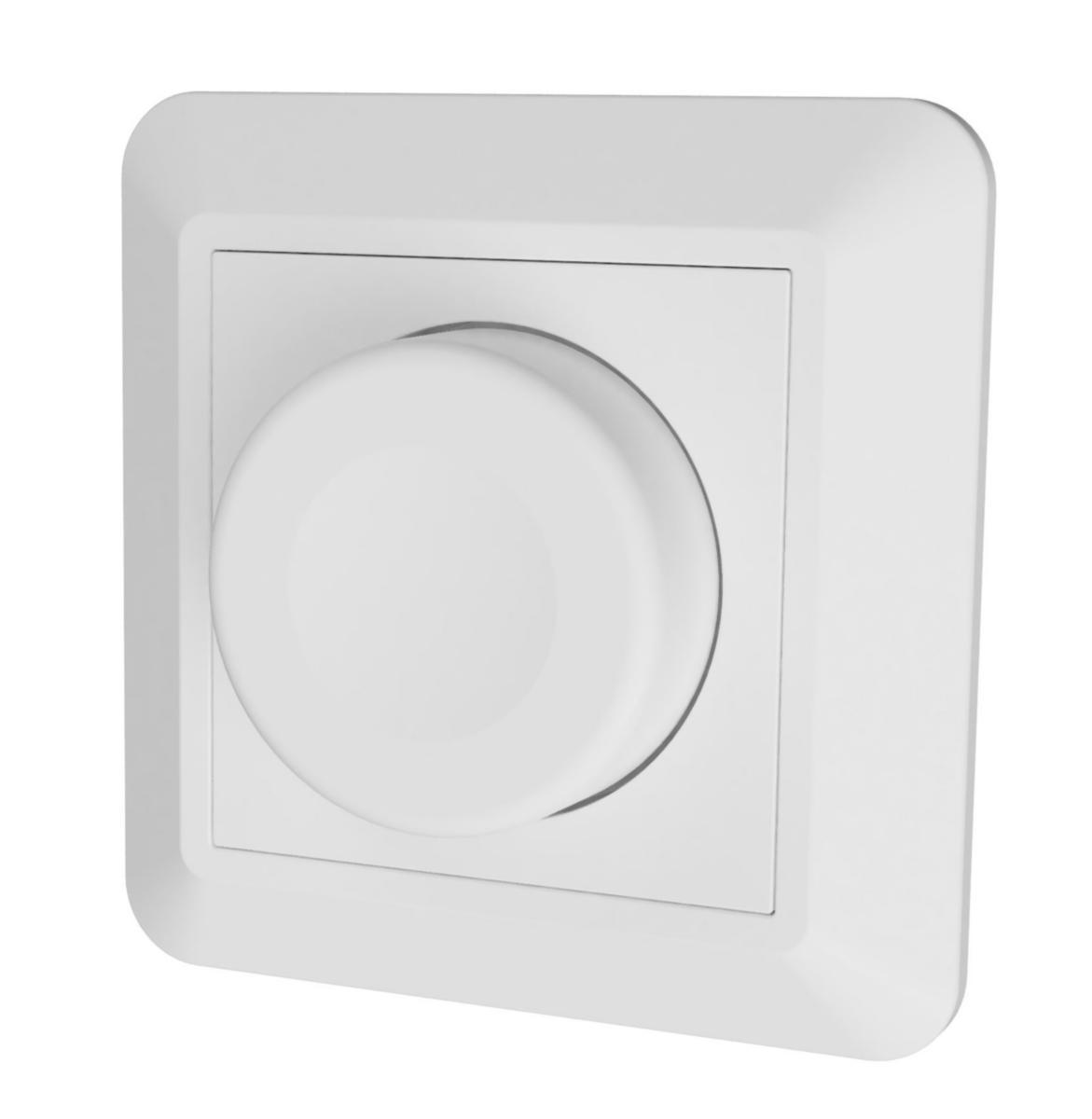

Dimmer aDim 350
DIMMER ADIM 350
Article number: Suppl. article no:
1360711
1430204
to see price and stock
Recessed rotary dimmer that is optimized for LED lighting but also works with a light bulb and halogen. The dimmer also has the option to adjustable min. Level. Center plate 56mmx56mm RAL 9016 included. Black dimmer knob and center plate (RAL9005) are available as accessories.
- Article number: 1360711
- Suppl. article no: 1430204
- Ean no: 7333123057488
- Material class QH8880
Technical data
- Colour: White
- Type of load: Universal and LED Retrofit
- Nominal power inductive load: 10-350 VA
- Nominal power resistive load: 10-350 W
- Max. switching power LED: 180 W
- RAL-number (similar): 9016
- Assembly arrangement: Basic element with housing top
- Nominal voltage: 220-240 V
- Control voltage: 210-240 V
- App control via Bluetooth: No
- Serial dimmer: No
- Device width: 83.5 mm
- Device height: 83.5 mm
- Device depth: 22 mm
- Dimming phase cut-off (trailing edge): Yes
- Dimming phase cut-on (leading edge): No
- Core cross section: 1.5-2.5 mm²
- Type of fastening: Mounting with screw
- Mounting method: Flush-mounted
- Method of operation: Turn/push button
- Frequency: 50 Hz
- Min. depth of built-in installation box: 22 mm
- Material: Plastic
- Halogen free: No
- Light value memory: No
- Suitable for degree of protection (IP): IP20
- Applicable with button: Yes
- Applicable with movement sensor: No
- Applicable with presence indicator: No
- Applicable with time switch/timer: No
- Applicable with transmission button: No
- Applicable with infrared button: No
- Transparent: No
- Surface finishing: Glossy
- Substation input: No
- Connection type: Screwed terminal
