AhlsellProductsElectricInstallation equipment 11-1813 Motion, time, light controlLight regulationDimmer turn/push
Schneider Electric

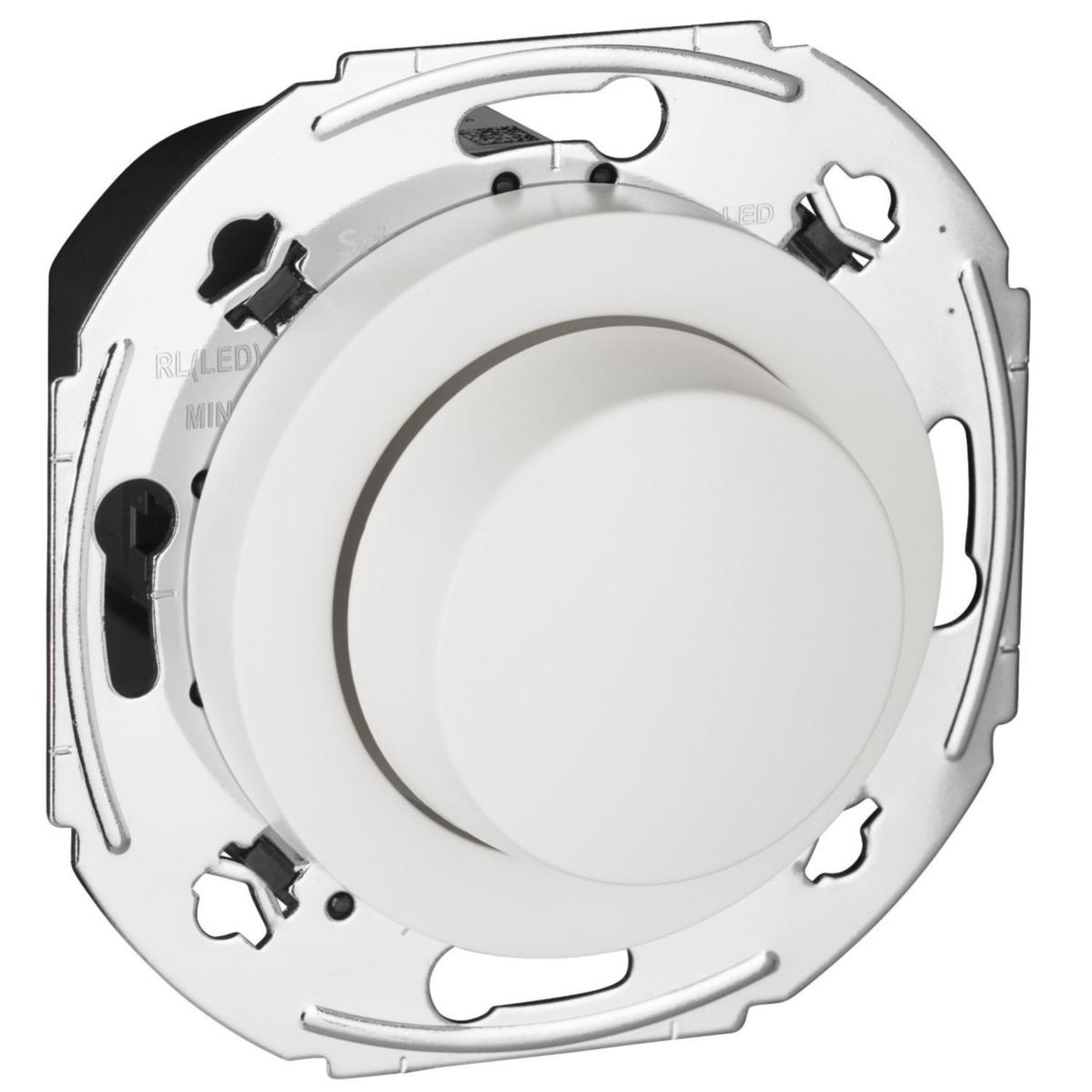

Dimmer LED uni, Renova
LED ROTARY DIMMER 400W WDE011626
Article number: Suppl. article no:
1360258
WDE011626
to see price and stock
LED universal dimmer, 4-400W / VA rotary dimmer for light control. When adjusting the rear edge controlled LED lamp (RC) 4-200VA. Front edge controlled LED lamp (RL) 4-40VA. Incandescent lamps, 230V halogen lamps (R) and most types of electronic (C) / conventional transformers (L)
- Article number: 1360258
- Suppl. article no: WDE011626
- Ean no: 3606481003768
- Material class QH2201
Technical data
- Product series: Renova
- Colour: White
- Type of load: Universal and LED Retrofit
- Nominal power inductive load: 4-40 VA
- Nominal power capacitive load: 4-200 VA
- Nominal power resistive load: 4-400 W
- Assembly arrangement: Basic element with central cover plate
- Nominal voltage: 230 V
- App control via Bluetooth: No
- Min. depth of built-in installation box: 46 mm
- Device width: 71 mm
- Device height: 71 mm
- Device depth: 51 mm
- Dimming phase cut-off (trailing edge): Yes
- Dimming phase cut-on (leading edge): Yes
- Core cross section: 2.5 mm²
- Type of fastening: Mounting with screw
- Mounting method: Flush-mounted
- Method of operation: Turn/push button
- Frequency: 50-60 Hz
- Serial dimmer: Yes
- Material quality: Thermoplastic
- Material: Plastic
- Halogen free: Yes
- Light value memory: Yes
- Suitable for degree of protection (IP): IP20
- Applicable with button: No
- Applicable with movement sensor: No
- Applicable with presence indicator: No
- Applicable with time switch/timer: No
- Applicable with transmission button: No
- Applicable with infrared button: No
- Transparent: No
- Surface finishing: Glossy
- Surface protection: Untreated
- Substation input: No
- Connection type: Screwed terminal
- REACH Date: 2022-07-20
- REACH contains candidate substances: Bly
- REACH Information obligation: Yes
