Schneider Electric

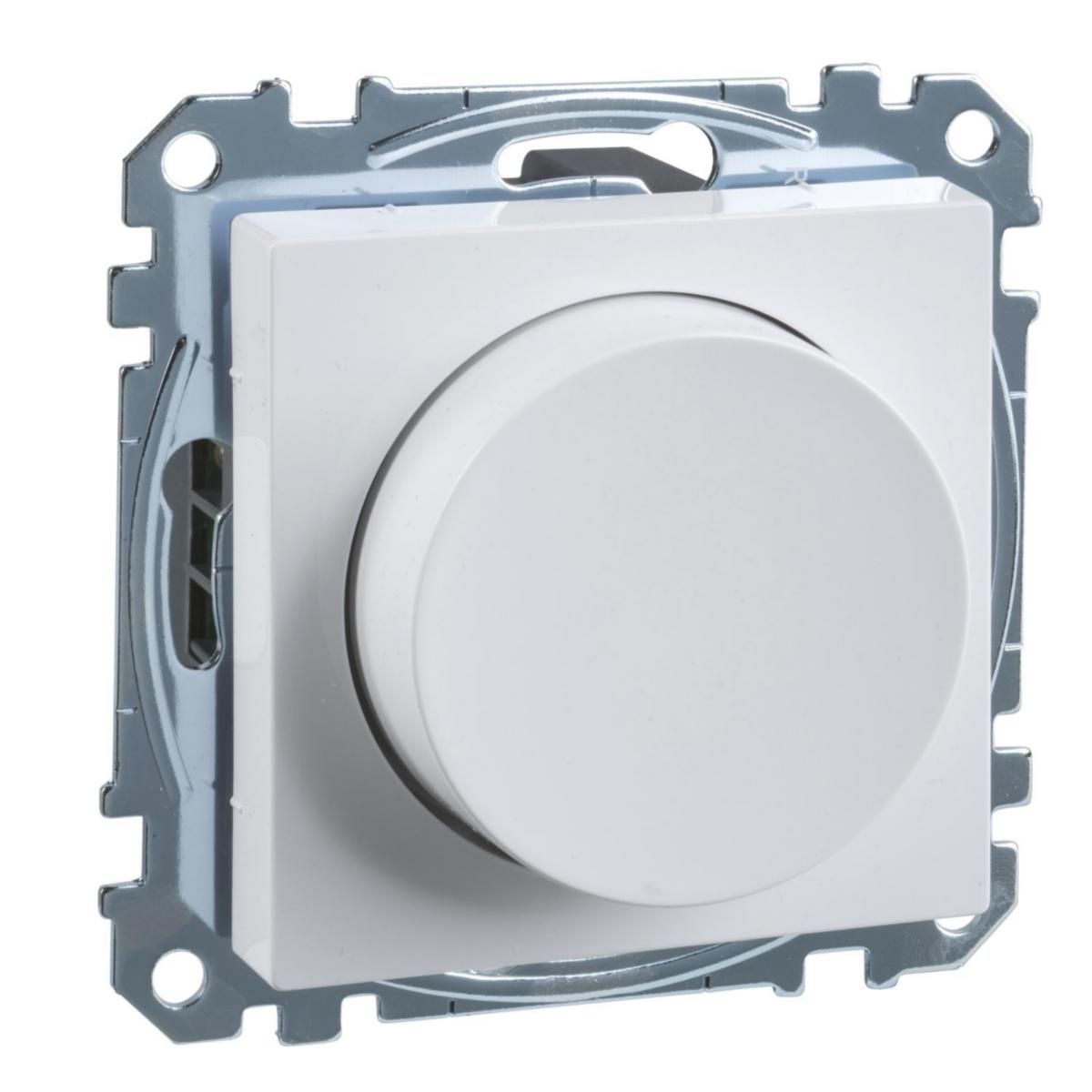

LED universaldimmer, Schneider Exxact
EXXACT UNI LED DIM 400W WHITE BAKKANT 4-200VA FRAM 4-40VA
Article number: Suppl. article no:
1360113
WDE002299
to see price and stock
To shop with us, you need a registered company and a customer number.
![Produkten är miljöbedömd av SundaHus Produkten är miljöbedömd av SundaHus](/globalassets/site-images/sv_icons/step/shb.jpg)
![Produkten är bedömd hos Byggvarubedömningen med totalbedömningen Accepteras. Produkten är bedömd hos Byggvarubedömningen med totalbedömningen Accepteras.](/globalassets/site-images/sv_icons/step/accepteras.png)
![Denna produkt innehåller ett eller flera ämnen på kandidatförteckningen. Denna produkt innehåller ett eller flera ämnen på kandidatförteckningen.](/globalassets/site-images/sv_icons/step/reachinformationrequestobligation.png)
Front (thyristor) or rear edge dimmer (transistor dimmer)
Universal dimmer automatically identifies connected load. It is not possible to mix inductive and capacitive loads.
For resistive/capacitive or resistive/inductive loads such as 230V halogen lamps, dimmable 230V LEDs, dimmable conventional or electronic transformers.
Can be supplemented with LED Nightlight using a kit consisting of white LED light mounted on the insert and a light guide mounted on the centre plate.
It is also possible to change the centre plate to a transparent colour insert or brushed steel.
For recessed IP20 mounting in an apparatus box c/c 60 mm or externally in surface-mounted box 35 mm.
Can be upgraded to IP44,sealing kit is used for recessed mounting and for external mounting
a surface-mounted box is used in IP44.Supplemented with optional Exxact frame.
Universal dimmer automatically identifies connected load. It is not possible to mix inductive and capacitive loads.
For resistive/capacitive or resistive/inductive loads such as 230V halogen lamps, dimmable 230V LEDs, dimmable conventional or electronic transformers.
Can be supplemented with LED Nightlight using a kit consisting of white LED light mounted on the insert and a light guide mounted on the centre plate.
It is also possible to change the centre plate to a transparent colour insert or brushed steel.
For recessed IP20 mounting in an apparatus box c/c 60 mm or externally in surface-mounted box 35 mm.
Can be upgraded to IP44,sealing kit is used for recessed mounting and for external mounting
a surface-mounted box is used in IP44.Supplemented with optional Exxact frame.
- Article number: 1360113
- Suppl. article no: WDE002299
- Ean no: 3606480686092
- Material class QH2201
Technical data
- Packagin Size: 1 PCS/16 PCS
- Type: WDE002299
- Product series: Exxact
- Colour: White
- Type of load: Universal and LED Retrofit
- Nominal power inductive load: 4-40 VA
- Nominal power capacitive load: 4-200 VA
- Nominal power resistive load: 4-400 W
- RAL-number (similar): 9003
- Assembly arrangement: Basic element with central cover plate
- Nominal voltage: 230 V
- App control via Bluetooth: No
- Serial dimmer: No
- Device width: 71 mm
- Device height: 71 mm
- Device depth: 29 mm
- Dimming phase cut-off (trailing edge): Yes
- Dimming phase cut-on (leading edge): Yes
- Core cross section: 1.5-2.5 mm²
- Type of fastening: Mounting with screw
- Mounting method: Flush-mounted
- Method of operation: Turn/push button
- Frequency: 50 Hz
- Min. depth of built-in installation box: 40 mm
- Material quality: Other
- Material: Other
- Halogen free: Yes
- Light value memory: No
- Suitable for degree of protection (IP): IP20
- Applicable with button: No
- Applicable with movement sensor: No
- Applicable with presence indicator: No
- Applicable with time switch/timer: No
- Applicable with transmission button: No
- Applicable with infrared button: No
- Transparent: No
- Surface finishing: Glossy
- Surface protection: Untreated
- Substation input: Yes
- Impact strength: IK02
- Connection type: Screwed terminal
- REACH contains candidate substances: Bly
- REACH Date: 2022-07-20
- REACH Information obligation: Yes
