Schneider Electric

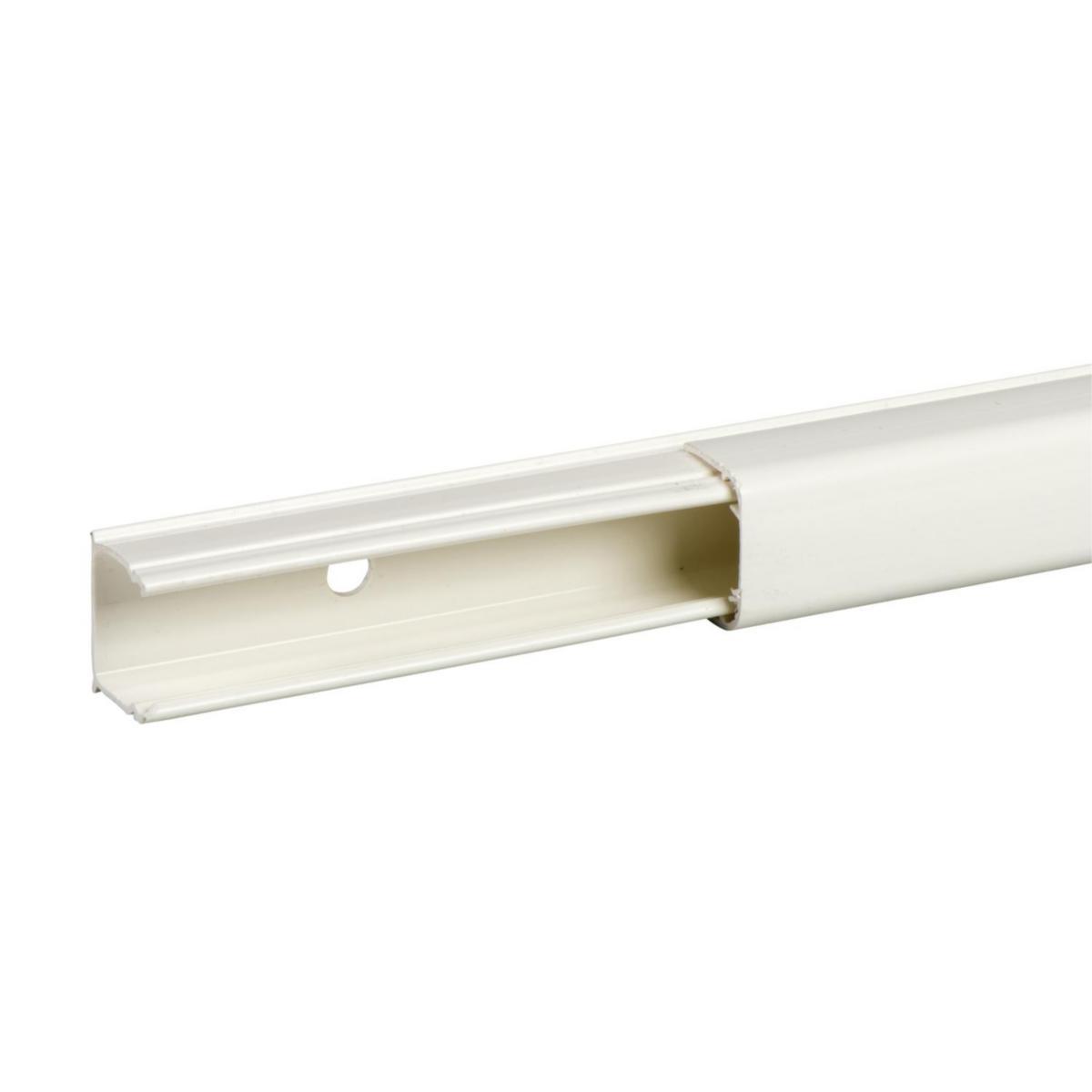

Mini trunking Optiline 1820, Schneider-Electric
MINI 18X20 1-COMP HF POLAR WH ISM14330P
Article number: Suppl. article no:
1169605
ISM14330P
to see price and stock
To shop with us, you need a registered company and a customer number.
OptiLine mini-duct for high- and low-voltage power lines; hole-punched bottom section. Plastic version approved for single-insulated cable. Please use a screw E1534909, which has an insulating collar. Tape installation only for low voltage. Removal requires tools. Available in lead- and cadmium-free PVC, halogen-free plastic, and aluminium
- Article number: 1169605
- Suppl. article no: ISM14330P
- Ean no: 3606480683008
- Material class QD5100
Technical data
- Packagin Size: 1 PCS/20 PCS/720 PCS
- Type: ISM14330P
- Product series: OptiLine
- Width: 18 mm
- Height: 20 mm
- Length: 2100 mm
- Colour: White
- RAL-number: 9003
- Type of fastening: Bottom perforation
- Material: Plastic
- Halogen free: Yes
- Material quality: Polycarbonate (PC)/ABS
- With cable fixing clip: No
- Number of permanent partitions: 0
- Number of plug-in partitions: 0
- Delivery on roll: No
- Suitable for circuit integrity: No
- With duct connector: No
- With protective foil: No
- Cover model: Loose
- Transparent: No
- Surface protection: Untreated
- Pre-stamping: No
- Anti-bacterial treatment: No
- Operating temperature: -25-60 °C
- Degree of protection (IP): IP40
- Impact strength: IK07
- Useful cross section: 246 mm²
- REACH Date: 2022-07-20
- REACH Information obligation: No
