Schneider Electric
Supply ducts, TIR+ lead free PVC with perforated reverse side
FEEDER TRUNKING TIR+ T4040 5427000
Article number: Suppl. article no:
1159150
5427000
to see price and stock
To shop with us, you need a registered company and a customer number.

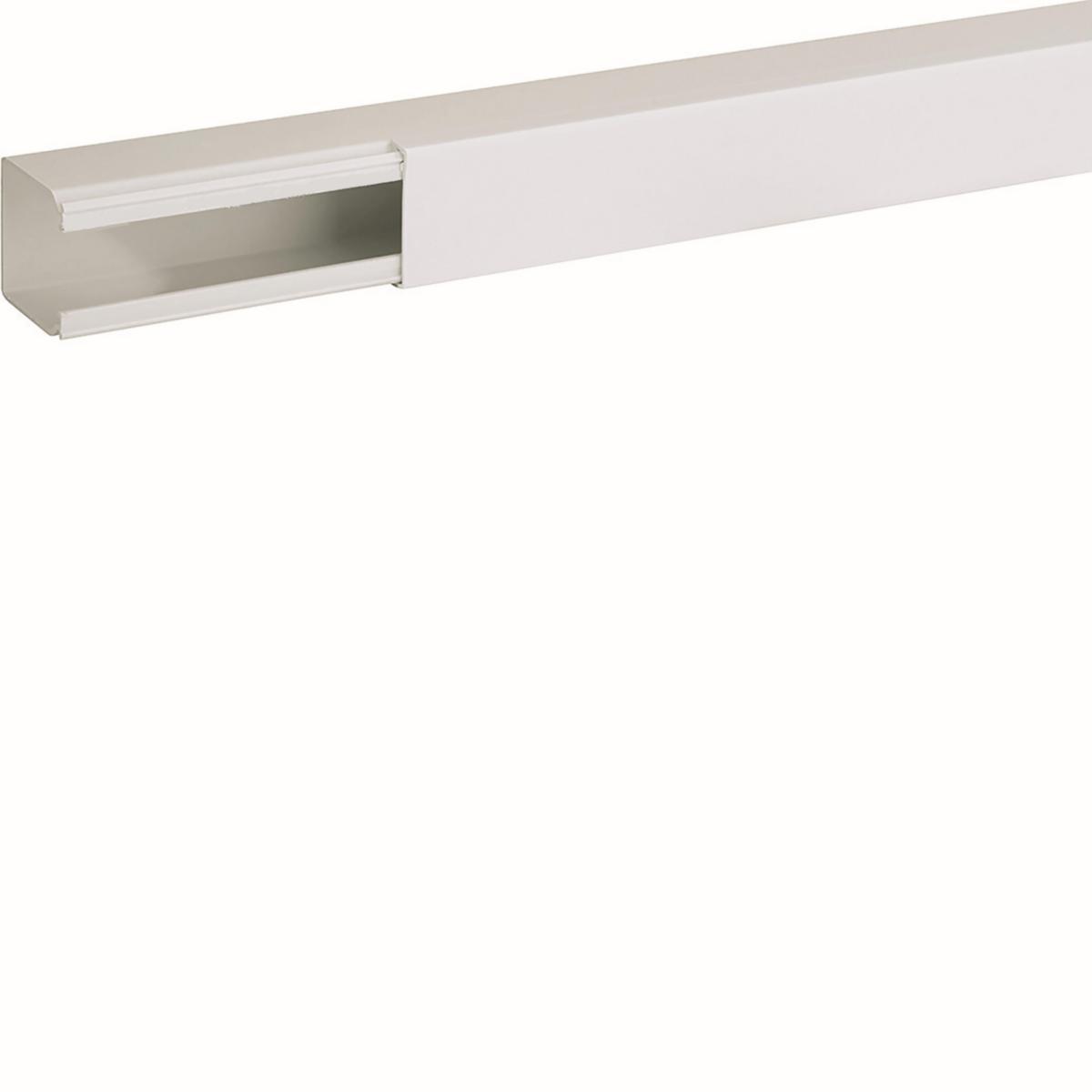

Duct type TIR+ with cover. The duct’s bottom perforated in accordance with DIN standard. Partition walls and accessories are mounted with fastening buttons that are twisted into the perforated bottom.
- Article number: 1159150
- Suppl. article no: 5427000
- Ean no: 7315885427006
- Material class QD0300
Technical data
- Packagin Size: 1 ST/4 ST/20000 ST/96 ST
- Type: 5427000
- Product series: TIR+
- Width: 40 mm
- Height: 40 mm
- Length: 2500 mm
- Colour: White
- RAL-number: 9010
- Type of fastening: Bottom perforation
- Material: Plastic
- Halogen free: No
- Material quality: Polyvinyl chloride (PVC)
- With cable fixing clip: No
- Number of permanent partitions: 0
- Number of plug-in partitions: 0
- Delivery on roll: No
- Suitable for circuit integrity: No
- With duct connector: No
- With protective foil: No
- Cover model: Loose
- Transparent: No
- Surface protection: Untreated
- Pre-stamping: No
- Anti-bacterial treatment: No
- Operating temperature: -25-60 °C
- Degree of protection (IP): IP40
- Impact strength: IK07
- Useful cross section: 1600 mm²
- REACH Date: 2022-07-20
- REACH Information obligation: No
