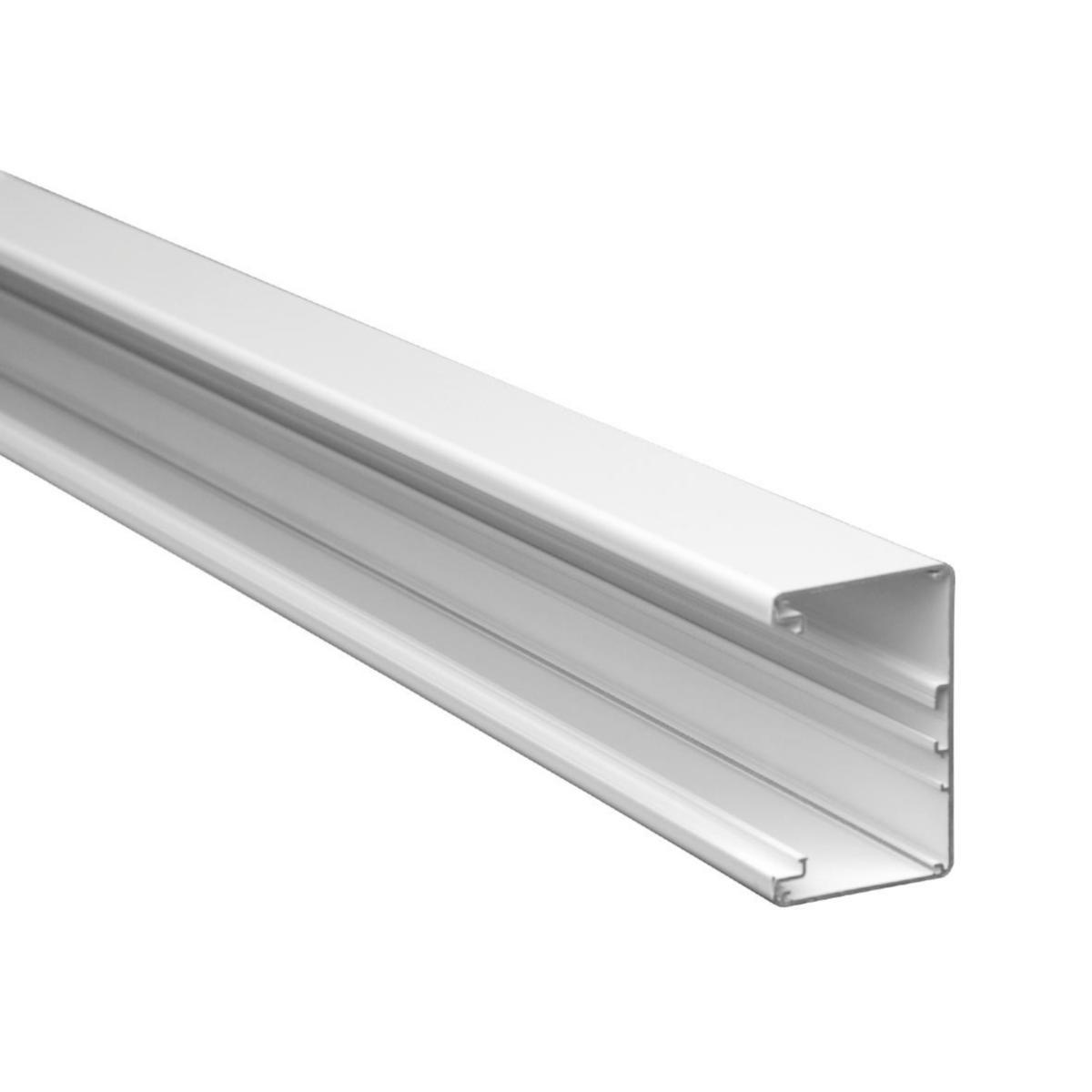

Installation ducting TB 1010
WALL TRUNKING 100/80X65 MM, 3M
Article number: Suppl. article no:
1179351
TB1010-3
to see price and stock
The cable space can be sectioned off using intermediate shelves. In the duct, there are grooves for the TBM 1 earthing plate. This duct cannot be installed on a wall rack.
- Article number: 1179351
- Suppl. article no: TB1010-3
- Ean no: 7394333403212
- Material class QD720A
Technical data
- Packagin Size: 1 ST/4 ST/180 ST
- Type: TB1010-3
- Width: 100 mm
- Depth: 65 mm
- Length: 3000 mm
- Colour: White
- RAL-number: 9010
- Number of covers: 1
- Covers included: No
- Cover width 1: 80 mm
- Material: Aluminium
- Material quality: Other
- Bottom perforation: No
- Halogen free: Yes
- Symmetric: No
- Construction type rectangular: Yes
- Surface protection: Coated
- Construction rear wall (inner side): Continuous other profile
- With protective foil: Yes
- Number of plug-in partitions: 1
- With duct connector: No
- Mounting method cover: Inner lying
- With cable fixing clip: No
- Useful cross section: 6500 mm²
- REACH Date: 2021-06-17
- GWP-tot (A1-A3): 14,4840 kgCO2e/ST
- REACH Information obligation: No
