Raychem

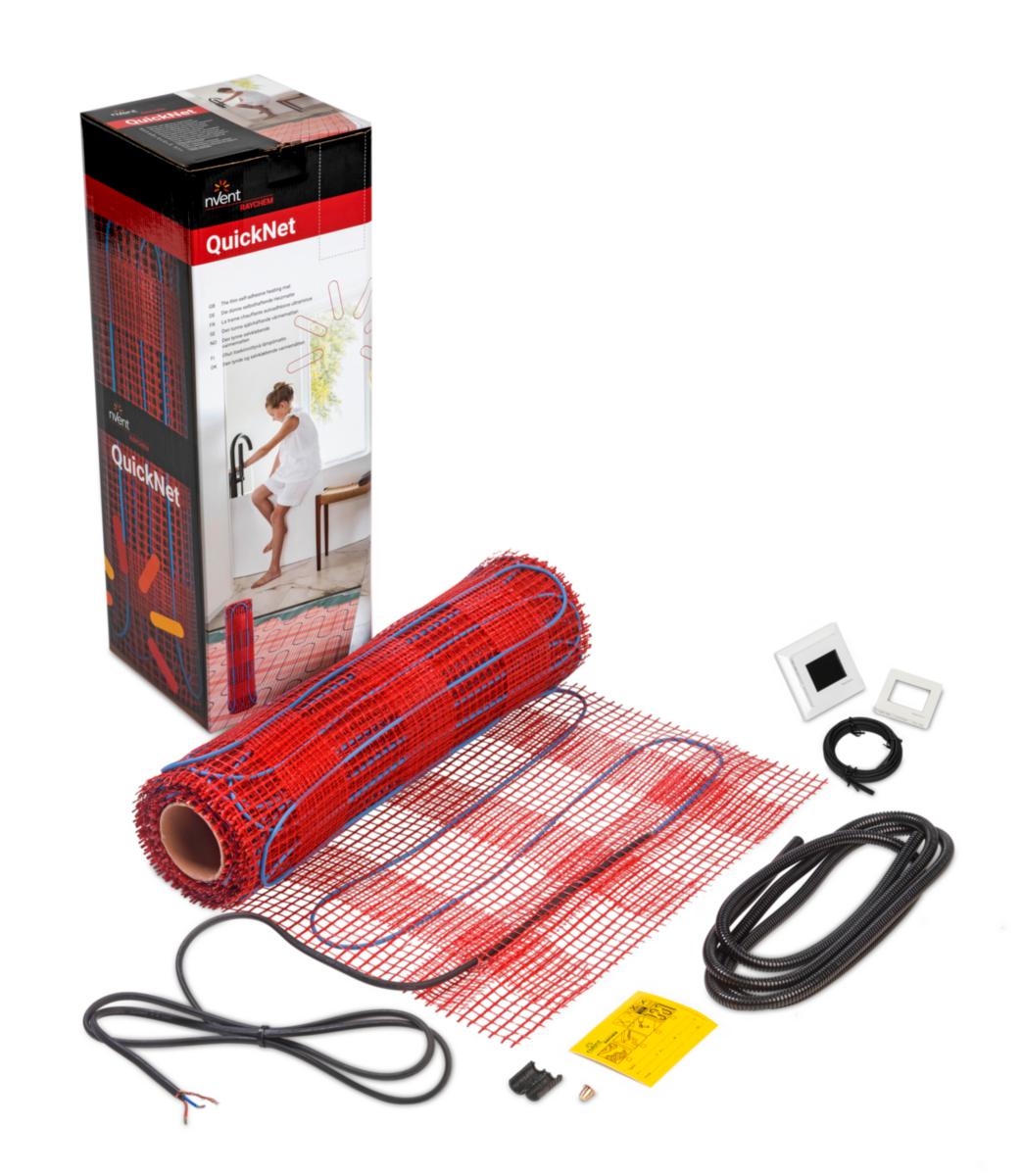

Floor heating mat QuickNet-90, with thermostat
QUICKNET-90 3.0M2 SENZ R-QN-N-3.0M2/SENZ
Article number: Suppl. article no:
8940403
SZ18300433
to see price and stock
To shop with us, you need a registered company and a customer number.
Thin environmentally friendly PVC-free dual-conductor cable with halogen-free housing, which is fully assembled on the net, only 3.5 mm. The carpet can be installed in leveling compound under clinker, parquet, laminate and wooden floor where low building height is desired. With an increased amount of glue on the net, the carpet now attaches even better. The cables can easily be detached from the grid and re-attached. Can be mounted directly on combustible surfaces. The system meets the requirements for ECO design. 2.5 meter cold cable. Width 500 mm.
- Article number: 8940403
- Suppl. article no: SZ18300433
- Ean no: 5414506019810
- Replaces art.nbr: 8948403
- Material class QX5520
Technical data
- Packagin Size: 1 ST/32 ST
- Type: R-QN-N-3.0M2/SENZ
- Connected load: 0-275 W
- Surface: 3 m²
- Power: 90 W/m²
- Length: 6000 mm
- Heating conductor load: 8.1 W/m
- Thickness: 3.5 mm
- Number of cold conductors: 1
- Length of cold conductors: 2500 mm
- Width: 500 mm
- Model: Other
- Fixation thermal conductor: Glued
- With room temperature controller: Yes
- Connection voltage: 230 V
- With support mat: Yes
- Suitable for damp space: Yes
- Suitable as roof surface heating: No
- Suitable as outdoor surface heating: No
- With floor temperature sensor: Yes
- Self-adhesive: Yes
- With controller: Yes
- REACH Date: 2021-09-08
- REACH Information obligation: No
