Ebeco
Floor heating film Foil Kit, with EB-Therm 500
FOIL KIT 6 M2. 43 CM FOIL KIT 230 V
Article number: Suppl. article no:
8961020
8961020
to see price and stock
To shop with us, you need a registered company and a customer number.

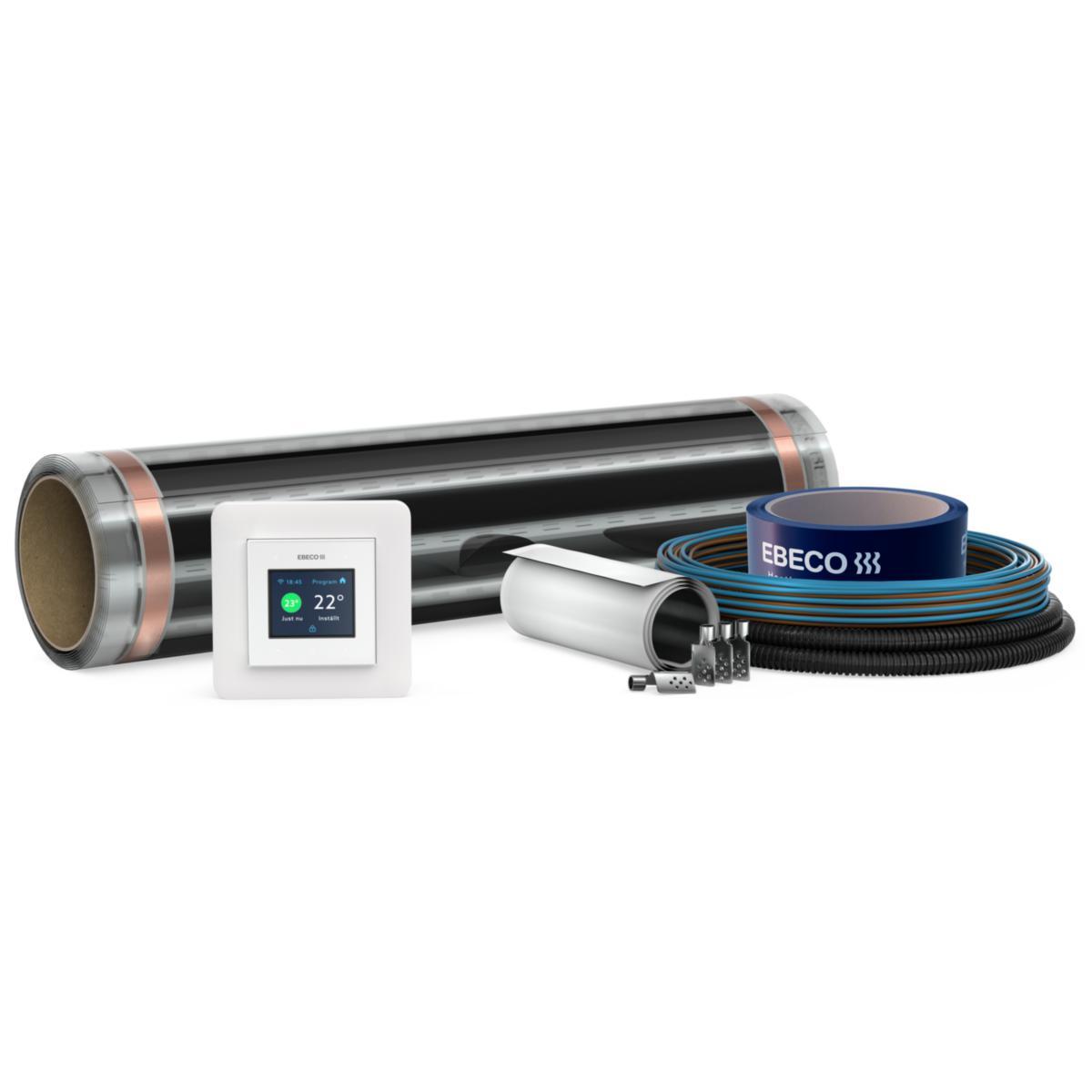

The floor heating foil kit is installed on floor structures made of concrete, plasterboard or chipboard. The halogen- and PVC-free foil is durable and reliable. Building height only 0.3 mm. The foil is connected with double insulated connection cables and connection terminals. Controlled with the EB-Therm 500 thermostat with two preset energy saving programs. The kit includes: underfloor heating film, thermostat EB-Therm 500, tape, connection terminals, RTK cables and coil hose. Always install with Ebisol for an energy-efficient system.
- Article number: 8961020
- Suppl. article no: 8961020
- Ean no: 7330778610204
- Material class QX4820
Technical data
- Connected load: 351 W
- Surface: 6 m²
- Power: 65 W/m²
- Resistance: 151 Ohm
- Length: 13500 mm
- Heating conductor load: 26 W/m
- Thickness: 0.3 mm
- Number of cold conductors: 1
- Length of cold conductors: 6250 mm
- Width: 430 mm
- Model: Heating cable
- Fixation thermal conductor: Other
- With room temperature controller: Yes
- Connection voltage: 230 V
- With support mat: No
- Suitable for damp space: No
- Suitable as roof surface heating: No
- Suitable as outdoor surface heating: No
- With floor temperature sensor: Yes
- Self-adhesive: No
- With controller: Yes
- REACH Date: 2021-06-30
- REACH Information obligation: No
