El-Björn

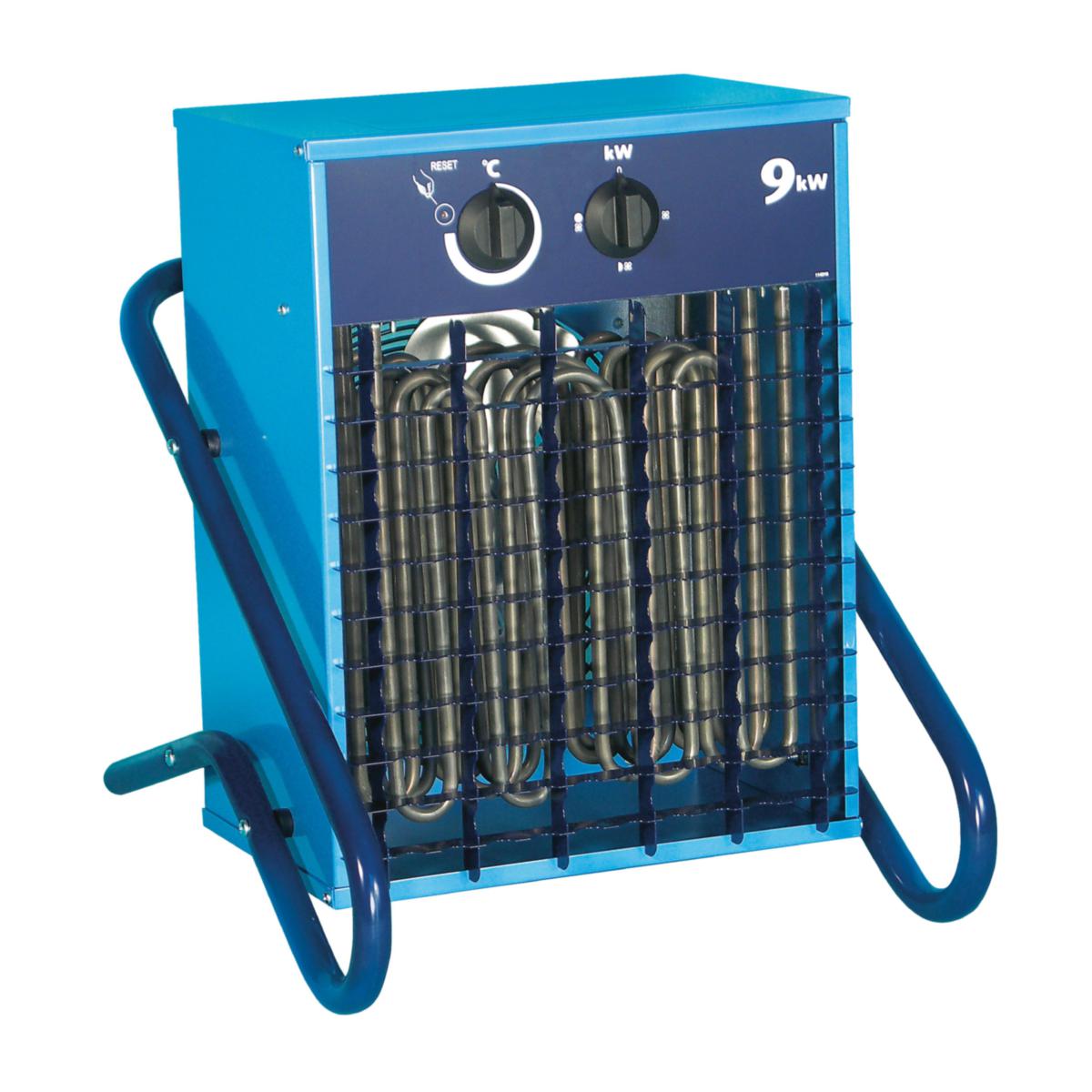

Heating fan VF9B / 400V
FANHEATER 9 KW 0
Article number: Suppl. article no:
8726334
VF 9B
to see price and stock
Robust construction in corrosion-resistant galvanized sheet steel
Powerful fan motor with low noise level
The elements are designed for optimal airflow and fast heating
The guide grille on the front holds the airflow together and provides a long throw
Designed for both temporary and permanent heating, IP 44 means that it can withstand humid spaces
Stepless thermostat 5 ° - 35 °
16A CEE intake directly on the fan
The overheating protection is reset manually on the control panel
Does not load N (zero)
Mechanical thermostat for room temperature control
Incoming 5-pole / 400V 16A CEE 416-6 1 pc
Powerful fan motor with low noise level
The elements are designed for optimal airflow and fast heating
The guide grille on the front holds the airflow together and provides a long throw
Designed for both temporary and permanent heating, IP 44 means that it can withstand humid spaces
Stepless thermostat 5 ° - 35 °
16A CEE intake directly on the fan
The overheating protection is reset manually on the control panel
Does not load N (zero)
Mechanical thermostat for room temperature control
Incoming 5-pole / 400V 16A CEE 416-6 1 pc
- Article number: 8726334
- Suppl. article no: VF 9B
- Ean no: 7392274263346
- Material class QX3001
Technical data
- Packagin Size: 1 ST/12 ST/12 ST
- Type: VF 9B
- Air volume: 750 m³/h
- Width: 36 mm
- Rated current: 13 A
- Deep: 41 mm
- Degree of protection (IP): IP44
- Height: 43 mm
- Weight: 12 kg
- Information: Power: 0-4.5-9 kW
- Noise level: 50 dB(A)
