Ensto

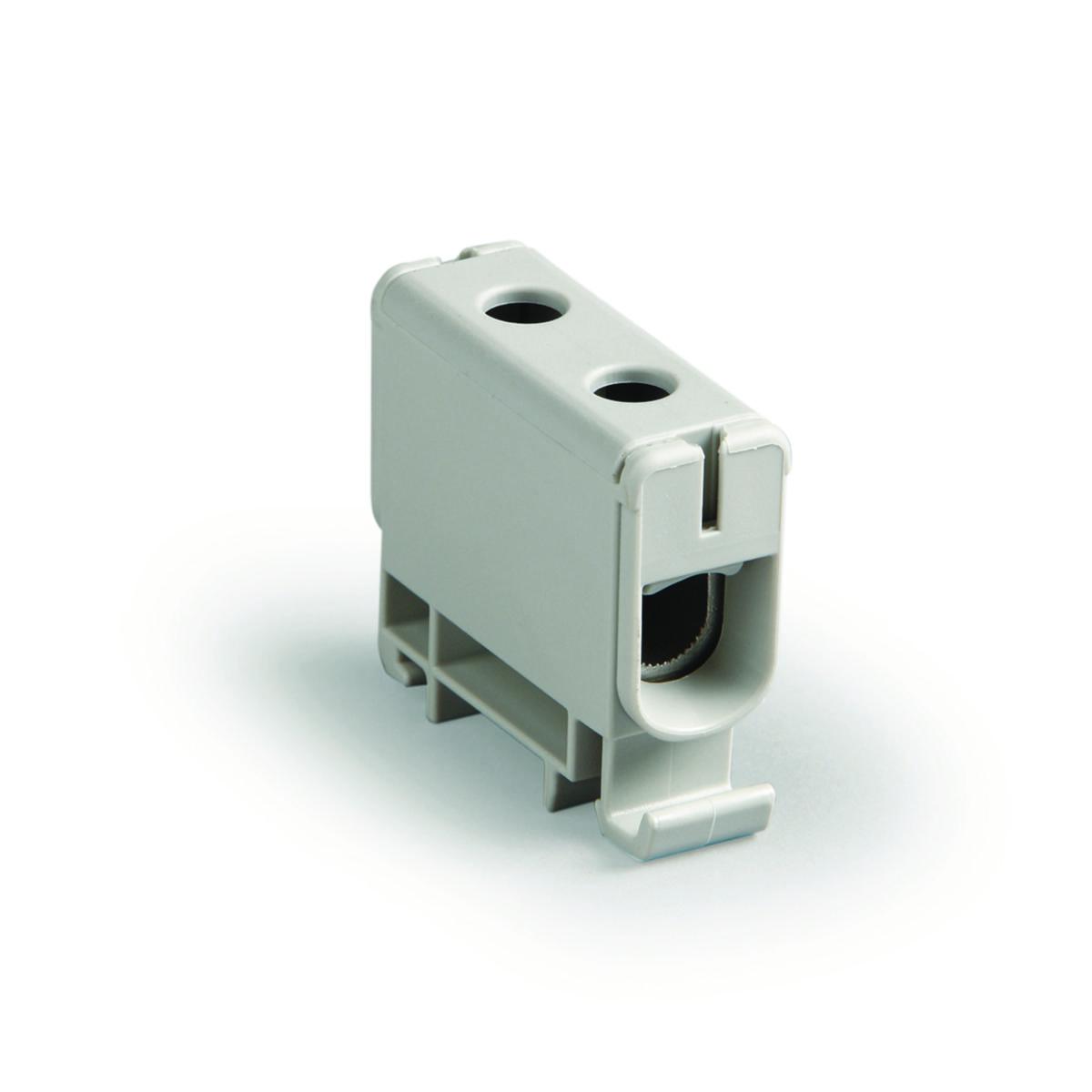

Universal clamp KE
GREY, AL/CU 50 MM² KE 61
Article number: Suppl. article no:
2673531E
KE61
to see price and stock
The clamps are easy and quick to install and covers a large area with few sizes. The clamps are mounted on the DIN rail and are available in grey, blue, and yellow/green design.
• Covers from 2.5 mm² - 240 mm²
• Förtenta to handle both Cu (copper) and Al (aluminium)
• Greased and grooved contact surfaces for a reliable connection
• Only two connection screws
• Available in single and double versions
• Covers from 2.5 mm² - 240 mm²
• Förtenta to handle both Cu (copper) and Al (aluminium)
• Greased and grooved contact surfaces for a reliable connection
• Only two connection screws
• Available in single and double versions
- Article number: 2673531E
- Suppl. article no: KE61
- Ean no: 6418677191817
- Material class QM7300
Technical data
- Packagin Size: 1 PCS/3 PCS/3 PCS/30 PCS
- Type: KE 61
- Colour: Grey
- Connectable conductor cross section multi-wired: 2.5-50 mm²
- Rated current In: 145 A
- Rated voltage: 800 V
- Width/grid dimension: 17.8 mm
- Connectable conductor cross section solid-core: 2.5-50 mm²
- Connectable conductor cross section fine-strand with cable end sleeve: 2.5-35 mm²
- Type of electrical connection 1: Screw connection
- Type of electrical connection 2: Screw connection
- Number of levels: 1
- Number of clamp positions per level: 2
- Mounting method: DIN rail (top hat rail) 35 mm
- Material insulation body: Thermoplastic
- Connectable conductor cross section fine-strand without cable end sleeve: 2.5-35 mm²
- Operating temperature: -5-80 °C
- Inflammability class of insulation material according to UL94: V2
- Length: 49 mm
- Connection position: Sideways
- REACH Date: 2022-06-22
- Al: 6-50 mm²
- Colour: Grey
- REACH Information obligation: No
