Elektro Linden

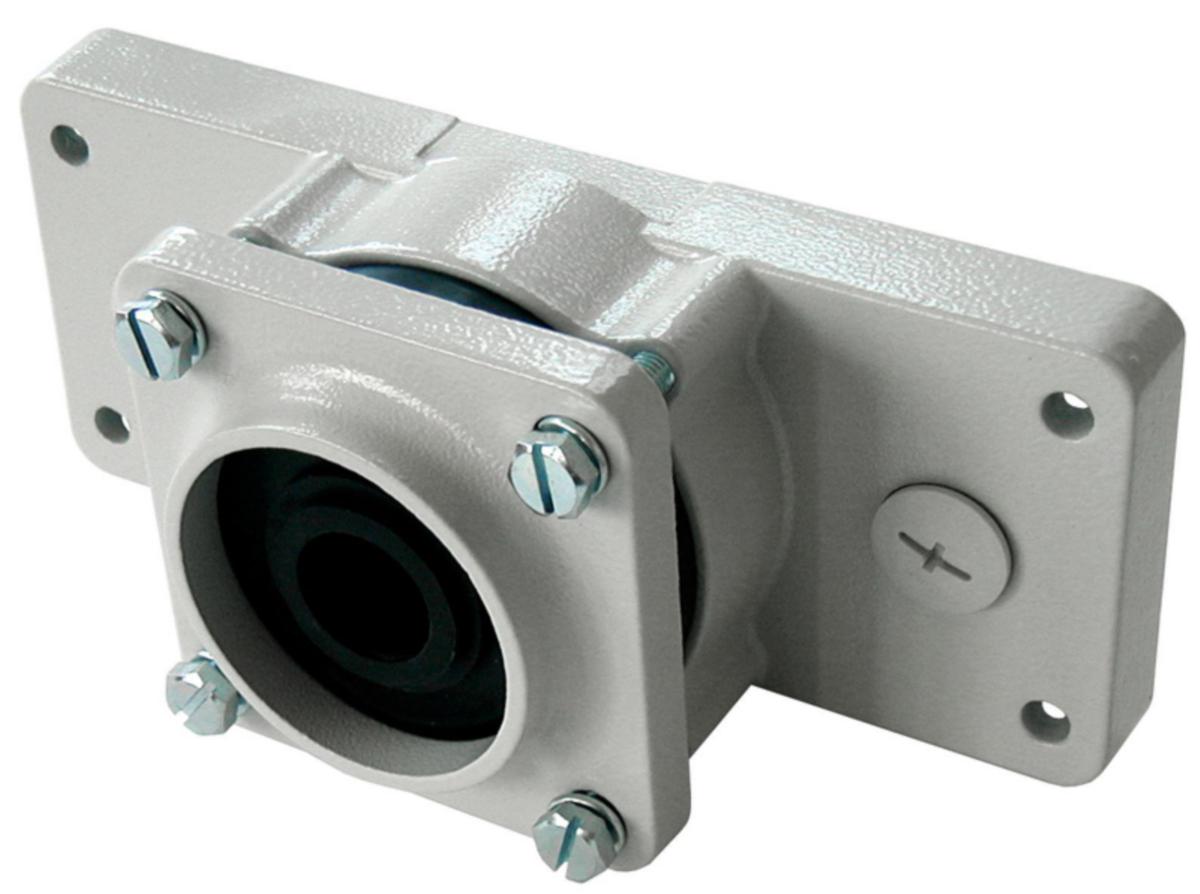

Earth cable flange in alloy FL 21, low
FLANGE LNPA 2115/16 LOW 20-60 LNPA 2115/16
Article number: Suppl. article no:
2635218
LNPA 2115/16
to see price and stock
To shop with us, you need a registered company and a customer number.
Light metal flanges for connection of plastic ground cable. The flanges are supplied with neoprene gasket, so called onion packing. The sleeves have a powerful pressure washer that provides some strain relief for the cable. All flanges are fitted with 2 threaded holes for cable screwing M20, excl. 26 352 28. IP67.
- Article number: 2635218
- Suppl. article no: LNPA 2115/16
- Material class QM7500
Technical data
- Type: LNPA 2115/16
- Design: Light alloy
- Gland plate type according to SEN 280901: FL21
- Flange size: FL 21
- Number of connector holes: 1
- Material: Aluminium
- Suitable for cable diameter: 20-60 mm
- Height: 83 mm
- Cable area: 16-300 mm²
- Max gasket size: 60 mm
- Min gasket size: 20 mm
- REACH Date: 2021-07-05
- REACH Information obligation: No
