Fibox

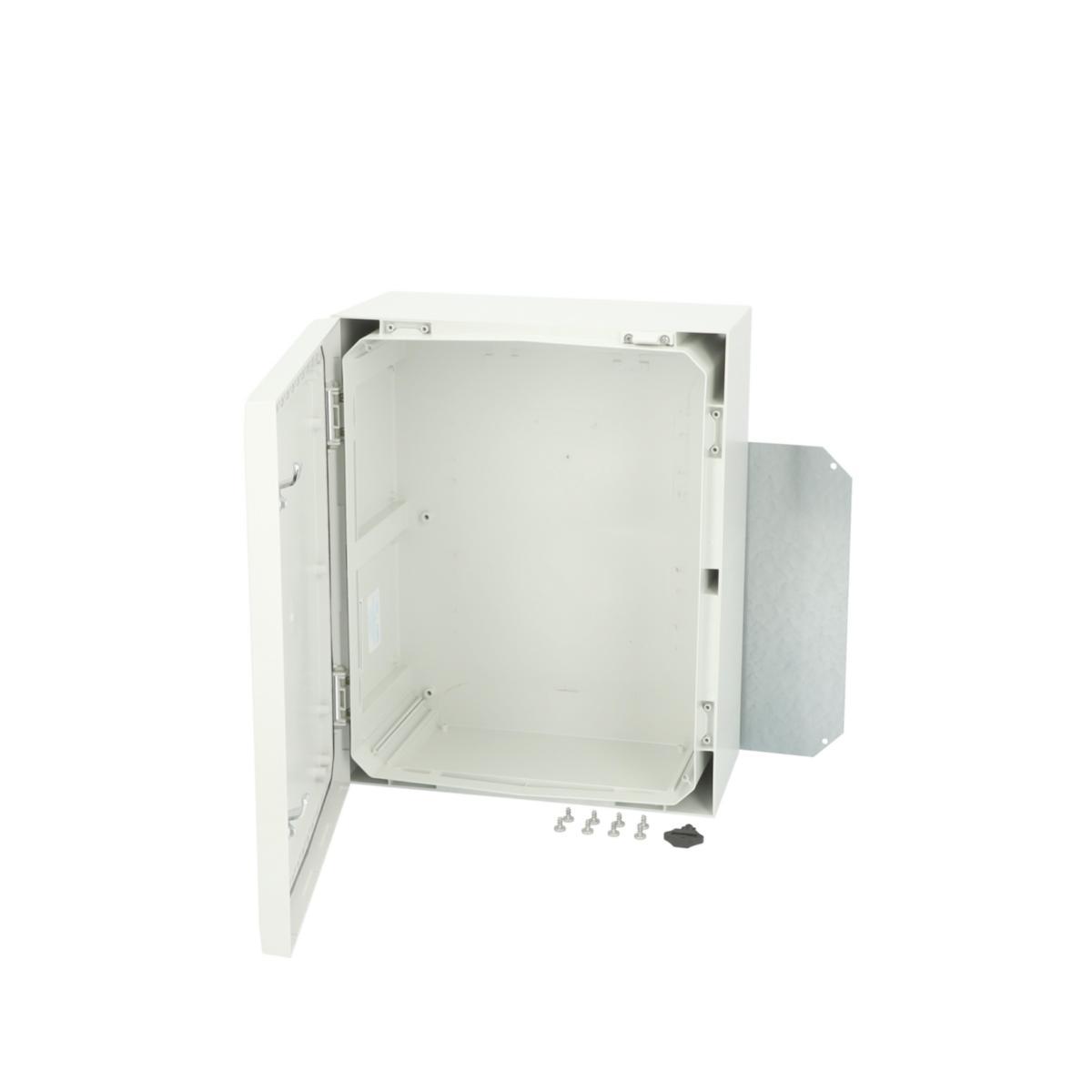

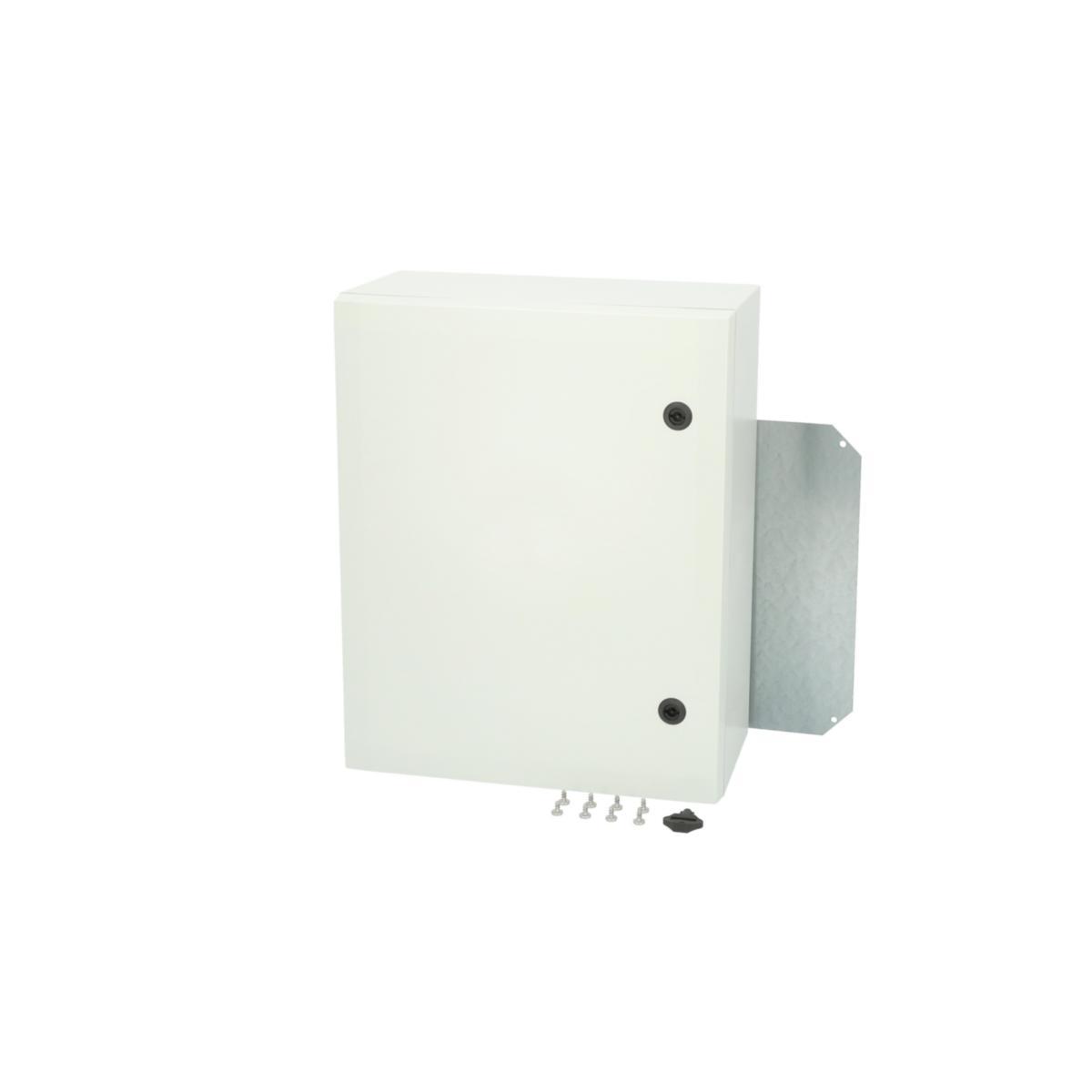

Control cabinet Arca Grey door 3-point lock
CABINET, GREY 2LOCK HING/LONG ARCA 504021
Article number: Suppl. article no:
2500116E
8120011
Normally in stock
to view the store status of the store
to see price and stock
Corrosion-free wall cabinets for extremely tough and demanding environments
High-class polycarbonate construction
• The low voltage directive 2006/95 / EC up to 1500 V
• Wide working temperature range
• UV stabilized polycarbonate guarantees maintained enclosure class outdoors
• Resistant to chemical attack
• Raw material with fire classification UL 94-5VA
• Robust Design
• Protection class IP 66 for safe use in wet and dusty environments
• High impact strength. IK10
• Patented heavy-duty hinges designed to withstand a continuous 120 ° opening and the weight of door-mounted components
• A variety of locking options, which offers a secure solution for every application
• Innovative features
• Patented lockable interior door - no tools needed for installation
• Patented rail system for DIN rail - no special tools needed - quick and easy installation
• Mounting lugs in the bottom of the base, the sides of the base and in the lid
• Adjustable height of mounting plates
High-class polycarbonate construction
• The low voltage directive 2006/95 / EC up to 1500 V
• Wide working temperature range
• UV stabilized polycarbonate guarantees maintained enclosure class outdoors
• Resistant to chemical attack
• Raw material with fire classification UL 94-5VA
• Robust Design
• Protection class IP 66 for safe use in wet and dusty environments
• High impact strength. IK10
• Patented heavy-duty hinges designed to withstand a continuous 120 ° opening and the weight of door-mounted components
• A variety of locking options, which offers a secure solution for every application
• Innovative features
• Patented lockable interior door - no tools needed for installation
• Patented rail system for DIN rail - no special tools needed - quick and easy installation
• Mounting lugs in the bottom of the base, the sides of the base and in the lid
• Adjustable height of mounting plates
- Article number: 2500116E
- Suppl. article no: 8120011
- Ean no: 6418074079220
- Material class QM532B
Technical data
- Type: 504021
- Width: 400 mm
- Height: 500 mm
- Depth: 210 mm
- Number of doors: 1
- Number of locks: 2
- With rear door: No
- With glazed door: No
- With mounting plate: Yes
- With ventilation door: No
- Mounting plate depth-adjustable: Yes
- Degree of protection (IP): IP66
- Impact strength: IK10
- Material: Plastic
- Surface finishing: Untreated
- Colour: Grey
- RAL-number: 7035
- EMC-version: No
- Suitable for metrical mounting: Yes
- Suitable for outdoor set-up: Yes
- Pole fastening: Yes
- Pitched roof: No
- Suitable for wall built-in: No
- REACH Date: 2019-01-15
- REACH Information obligation: No
