Fibox

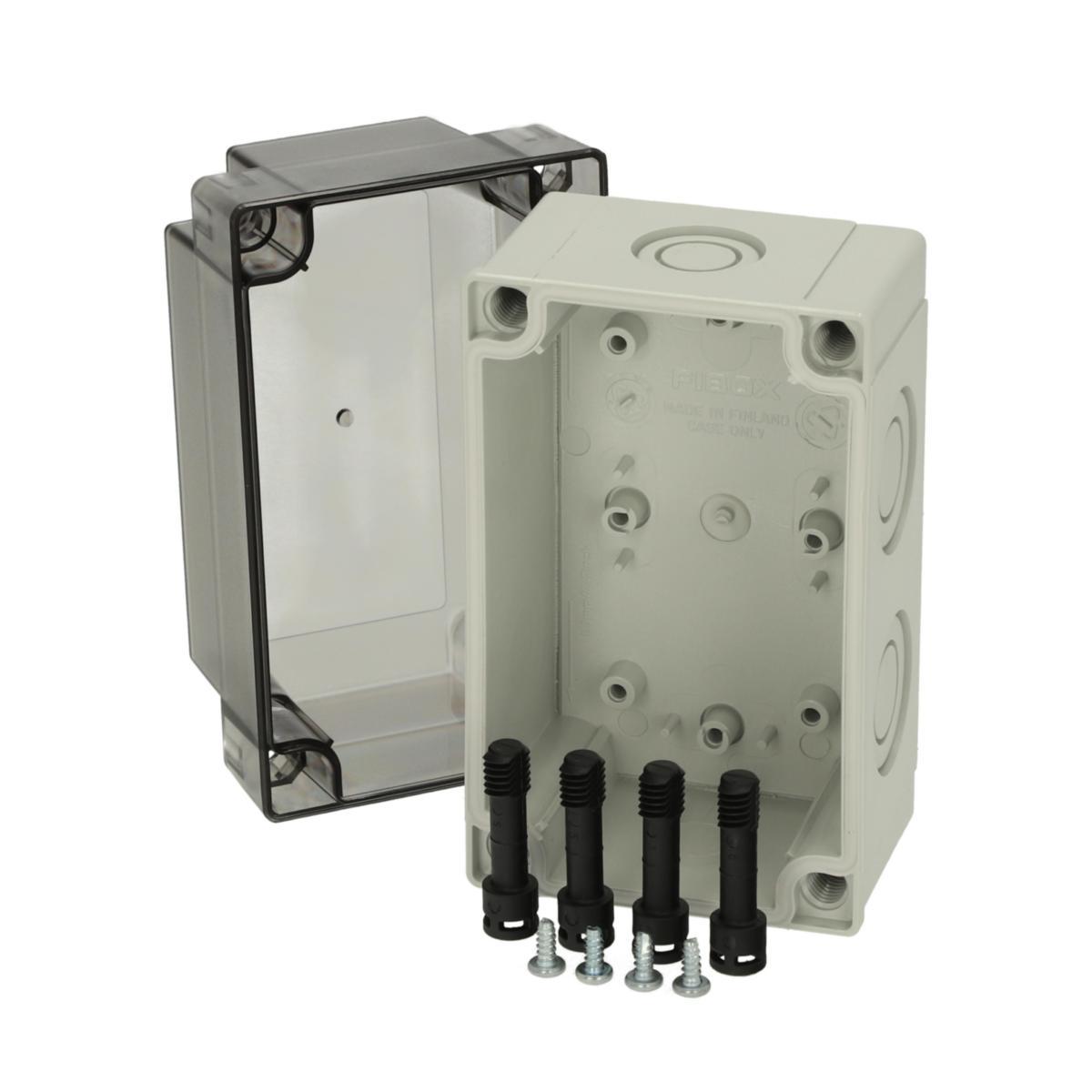

Device boxes MNX with smoke-coloured transparent cover
ENCLOSURE METRIC SMOKED COV. PCM 100/100H
Article number: Suppl. article no:
2535406
6016903
to see price and stock
MNX is a family of universal encapsulations of robust execution which are convenient and easy to use with many accessories. They are available in two different materials, ABS plastic with smooth sides (ABS9 and polycarbonate with smooth sides (PC9 or metric knock-outs (PCM). The polycarbonate cabinets are UV-resistant and very suitable for use outdoors. All underneath parts have attachment heels for mounting plate and DIN rails. For those who use mounting screws with large heads, outer lugs can be purchased extra. Other accessories are mounting plates, DIN rails, front plates, hinges, etc.
Environmental information: All encapsulations are bromine and halogen free and comply with the RoHS and REACH directives.
Knockout openings (knock-outs) for PCM
Size Knockout openings long side Knockout openings short side
PCM 100 2xM32/M20 1xM25/M16
PCM 125 2xM32/M20 1xM25/M16
PCM 150 3xM25/M16 2xM32/M20
PCM 175 3xM32/M20 3xM25/M16
PCM 200 3xM25/M16 + 2xM32/M20 3xM32/M20
PCM 200X 8xM20+1xM50/M32 2xM32/M20+1xM20
Environmental information: All encapsulations are bromine and halogen free and comply with the RoHS and REACH directives.
Knockout openings (knock-outs) for PCM
Size Knockout openings long side Knockout openings short side
PCM 100 2xM32/M20 1xM25/M16
PCM 125 2xM32/M20 1xM25/M16
PCM 150 3xM25/M16 2xM32/M20
PCM 175 3xM32/M20 3xM25/M16
PCM 200 3xM25/M16 + 2xM32/M20 3xM32/M20
PCM 200X 8xM20+1xM50/M32 2xM32/M20+1xM20
- Article number: 2535406
- Suppl. article no: 6016903
- Ean no: 6418074038180
- Material class QM370A
Technical data
- Packagin Size: 1 ST/8 ST
- Type: PCM 100/100 T
- Design: Smoked cover, metric knockout
- Material: Plastic
- Width: 80 mm
- Height: 130 mm
- Depth: 100 mm
- With glazed door: Yes
- With mounting plate: No
- Colour: Grey
- RAL-number: 7035
- Degree of protection (IP): IP66
- Impact strength: IK08
- REACH Date: 2019-01-15
- REACH Information obligation: No
