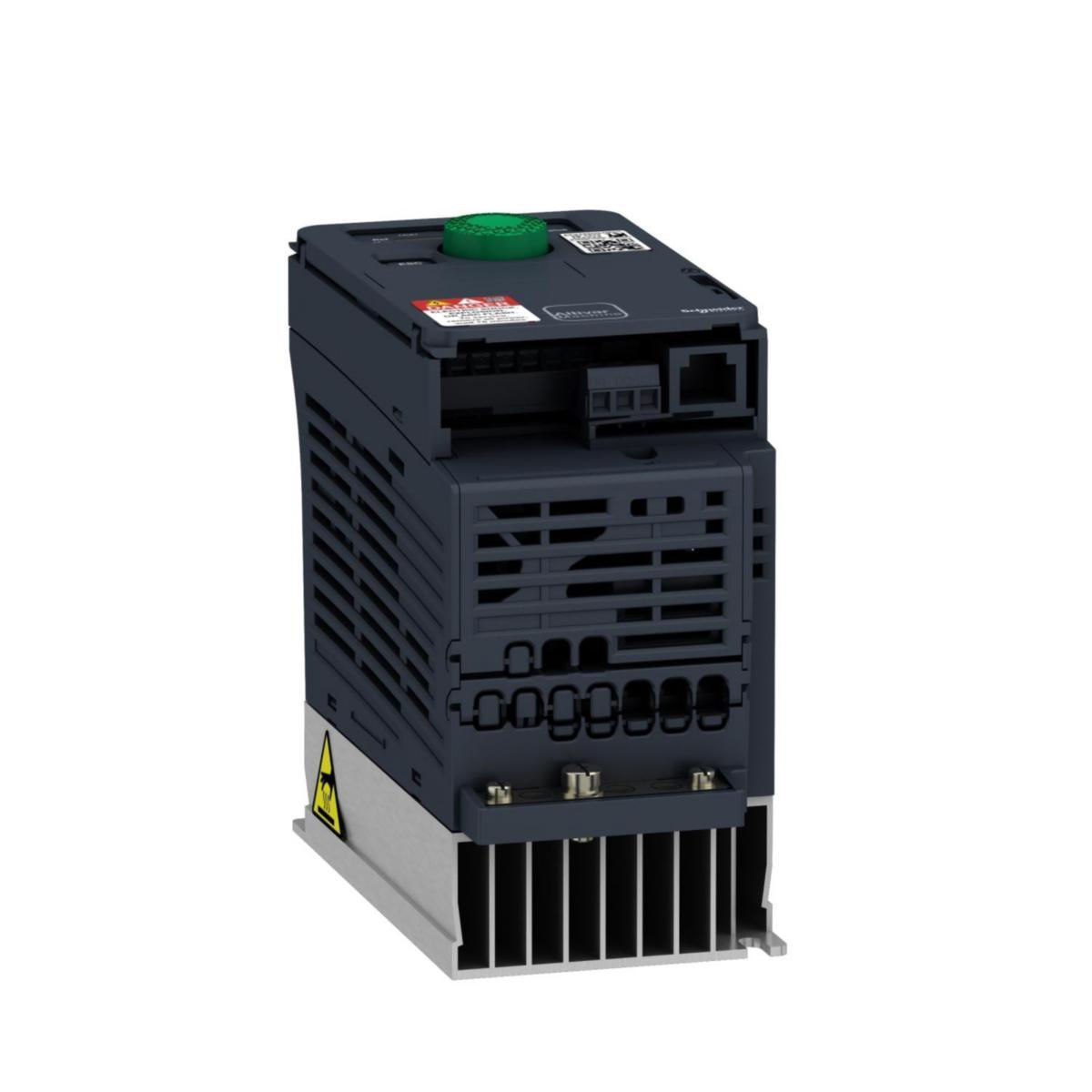

Frequency converter Altivar Machine 320 Compact
ATV320 0,37KW 230V 1PH ATV320U04M2C
Artikelnummer: Lev. artikelnr:
3345297
ATV320U04M2C
för att se saldo och pris
Active machine 320 is especially suited for use in applications that involve simple to complex industrial machinery. With built-in safety functions, integrated mini PLC, as well as being open for many communication protocols.
Selection of the correct output breaker and contactor is made quite simple by complete tables in the catalogue.
Flexible format
with two different physical formats, compact, and book stl. 0.18-4W, passes ATV320in both standard wiring cabinet and in narrow spaces.
Extra communication card for the most popular field busses: Profibus DP, ProfiNet, Ethernet IP – Modbus TCP, DeviceNet
Physical format
B = book
C = Compact
Selection of the correct output breaker and contactor is made quite simple by complete tables in the catalogue.
Flexible format
with two different physical formats, compact, and book stl. 0.18-4W, passes ATV320in both standard wiring cabinet and in narrow spaces.
Extra communication card for the most popular field busses: Profibus DP, ProfiNet, Ethernet IP – Modbus TCP, DeviceNet
Physical format
B = book
C = Compact
- Article number: 3345297
- Suppl. article no: ATV320U04M2C
- Ean no: 3606480966521
- Material class QO571B
Teknisk data
- Packagin Size: 1 ST/45 ST
- Type: ATV320U04M2C
- Number of phases input: 1
- Mains voltage: 200-240 V
- Nominal output current I2N: 3.3 A
- Max. output at linear load at rated output voltage: 0.37 kW
- Max. output at quadratic load at rated output voltage: 0.37 kW
- Height: 143 mm
- Width: 72 mm
- Depth: 138 mm
- Type of converter: U converter
- Application in industrial area permitted: Yes
- Application in domestic- and commercial area permitted: No
- Max. output voltage: 240 V
- Degree of protection (IP): IP20
- Degree of protection (NEMA): 1
- Number of phases output: 3
- Supporting protocol for PROFIsafe: No
- Supporting protocol for CAN: Yes
- Supporting protocol for Data-Highway: No
- Supporting protocol for TCP/IP: No
- Supporting protocol for INTERBUS-Safety: No
- Integrated breaking resistance: No
- Supporting protocol for PROFINET IO: Yes
- Supporting protocol for SafetyBUS p: No
- Number of analogue inputs: 3
- Number of analogue outputs: 1
- Number of digital inputs: 6
- Number of digital outputs: 1
- Number of HW-interfaces other: 1
- Number of HW-interfaces serial TTY: 0
- Number of HW-interfaces parallel: 0
- Number of HW-interfaces industrial Ethernet: 1
- 4-quadrant operation possible: Yes
- Max. output frequency: 599 Hz
- With PC connection: Yes
- With optical interface: No
- With control element: Yes
- Mains frequency: 50/60 Hz
- Relative symmetric net frequency tolerance: 5 %
- Relative symmetric net voltage tolerance: 10 %
- Number of HW-interfaces USB: 0
- Supporting protocol for ASI: No
- Number of HW-interfaces RS-485: 1
- Number of HW-interfaces RS-422: 0
- Supporting protocol for DeviceNet: Yes
- Supporting protocol for KNX: No
- Supporting protocol for INTERBUS: No
- Supporting protocol for Modbus: Yes
- Number of HW-interfaces RS-232: 0
- Supporting protocol for SERCOS: No
- Supporting protocol for SUCONET: No
- Number of interfaces PROFINET: 0
- Supporting protocol for LON: No
- Supporting protocol for other bus systems: Yes
- Supporting protocol for AS-Interface Safety at Work: No
- Supporting protocol for BACnet: No
- Supporting protocol for DeviceNet Safety: No
- Supporting protocol for EtherNet/IP: Yes
- Supporting protocol for Foundation Fieldbus: No
- Supporting protocol for PROFINET CBA: No
- Supporting protocol for PROFIBUS: Yes
- REACH Date: 2022-07-20
- REACH contains candidate substances: Bly
- GWP-tot (A1-A3): 22,5223 kgCO2e/ST
- REACH Information obligation: Yes
