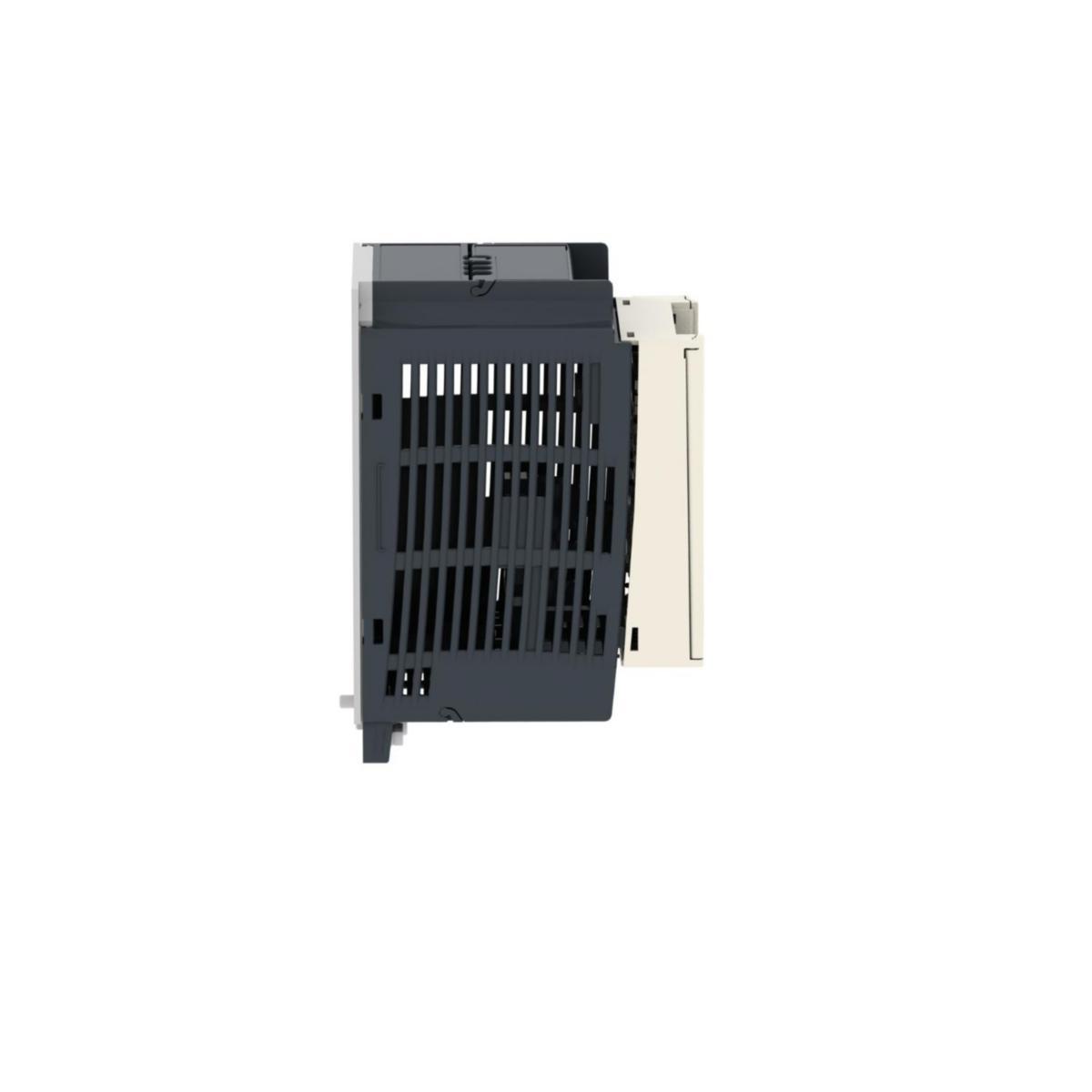

Frequency converter Altivar 12 1-phase 230 V IP20 with cooler, inbuilt EMC-filter
ATV12 0,37KW 240V 1PH HEATSINK ATV12H037M2
Article number: Suppl. article no:
3344954
ATV12H037M2
to see price and stock
• Mini frequency converters, up to 30% energy savings! The smallest drive on the market with or without cooler/fan. For connection to 1- or 3-phase power, 230 volts, and also 110 volts for RPM control of 3-phase asynchronous motors.
• Motor output 3 200-240V regardless of feed voltage.
• Always built-in terminal for programming and local control
• Also with built-in Modbus communication
• Can be wirelessly programmed via a Bluetooth adapter
• Can be programmed while de-energized, directly in its package
Available from 0.18 till 2.2 kW, protection class IP20 and in 2 versions:
• With radiator and fan for installation in cabinet
• Without radiator/fan for installation directly on the machine’s chassis.
• Motor output 3 200-240V regardless of feed voltage.
• Always built-in terminal for programming and local control
• Also with built-in Modbus communication
• Can be wirelessly programmed via a Bluetooth adapter
• Can be programmed while de-energized, directly in its package
Available from 0.18 till 2.2 kW, protection class IP20 and in 2 versions:
• With radiator and fan for installation in cabinet
• Without radiator/fan for installation directly on the machine’s chassis.
- Article number: 3344954
- Suppl. article no: ATV12H037M2
- Ean no: 3606480071058
- Replaces art.nbr: 3298944
- Material class QO571B
Technical data
- Packagin Size: 1 ST/45 ST
- Type: ATV12H037M2
- Design: 1-phase with chiller
- Number of phases input: 1
- Mains voltage: 200-240 V
- Nominal output current I2N: 2.4 A
- Max. output at linear load at rated output voltage: 0.37 kW
- Max. output at quadratic load at rated output voltage: 0.37 kW
- Height: 143 mm
- Width: 72 mm
- Depth: 121.2 mm
- Type of converter: I converter
- Application in industrial area permitted: Yes
- Application in domestic- and commercial area permitted: Yes
- Max. output voltage: 230 V
- Degree of protection (IP): IP20
- Number of phases output: 3
- Supporting protocol for PROFIsafe: No
- Supporting protocol for CAN: No
- Supporting protocol for Data-Highway: No
- Supporting protocol for TCP/IP: No
- Supporting protocol for INTERBUS-Safety: No
- Integrated breaking resistance: No
- Supporting protocol for PROFINET IO: No
- Supporting protocol for SafetyBUS p: No
- Number of analogue inputs: 1
- Number of analogue outputs: 1
- Number of digital inputs: 4
- Number of digital outputs: 1
- Number of HW-interfaces other: 8
- Number of HW-interfaces serial TTY: 0
- Number of HW-interfaces parallel: 0
- Number of HW-interfaces industrial Ethernet: 0
- 4-quadrant operation possible: No
- Max. output frequency: 400 Hz
- With PC connection: Yes
- With optical interface: No
- With control element: Yes
- Mains frequency: 50/60 Hz
- Relative symmetric net frequency tolerance: 5 %
- Relative symmetric net voltage tolerance: 10 %
- Number of HW-interfaces USB: 0
- Supporting protocol for ASI: No
- Number of HW-interfaces RS-485: 1
- Number of HW-interfaces RS-422: 0
- Supporting protocol for DeviceNet: No
- Supporting protocol for KNX: No
- Supporting protocol for INTERBUS: No
- Supporting protocol for Modbus: Yes
- Number of HW-interfaces RS-232: 0
- Supporting protocol for SERCOS: No
- Supporting protocol for SUCONET: No
- Number of interfaces PROFINET: 0
- Supporting protocol for LON: No
- Supporting protocol for other bus systems: No
- Supporting protocol for AS-Interface Safety at Work: No
- Supporting protocol for BACnet: No
- Supporting protocol for DeviceNet Safety: No
- Supporting protocol for EtherNet/IP: No
- Supporting protocol for Foundation Fieldbus: No
- Supporting protocol for PROFINET CBA: No
- Supporting protocol for PROFIBUS: No
- REACH Date: 2022-07-20
- REACH contains candidate substances: Bly
- Nominal operating current: 2,4
- REACH Information obligation: Yes
