Schneider Electric

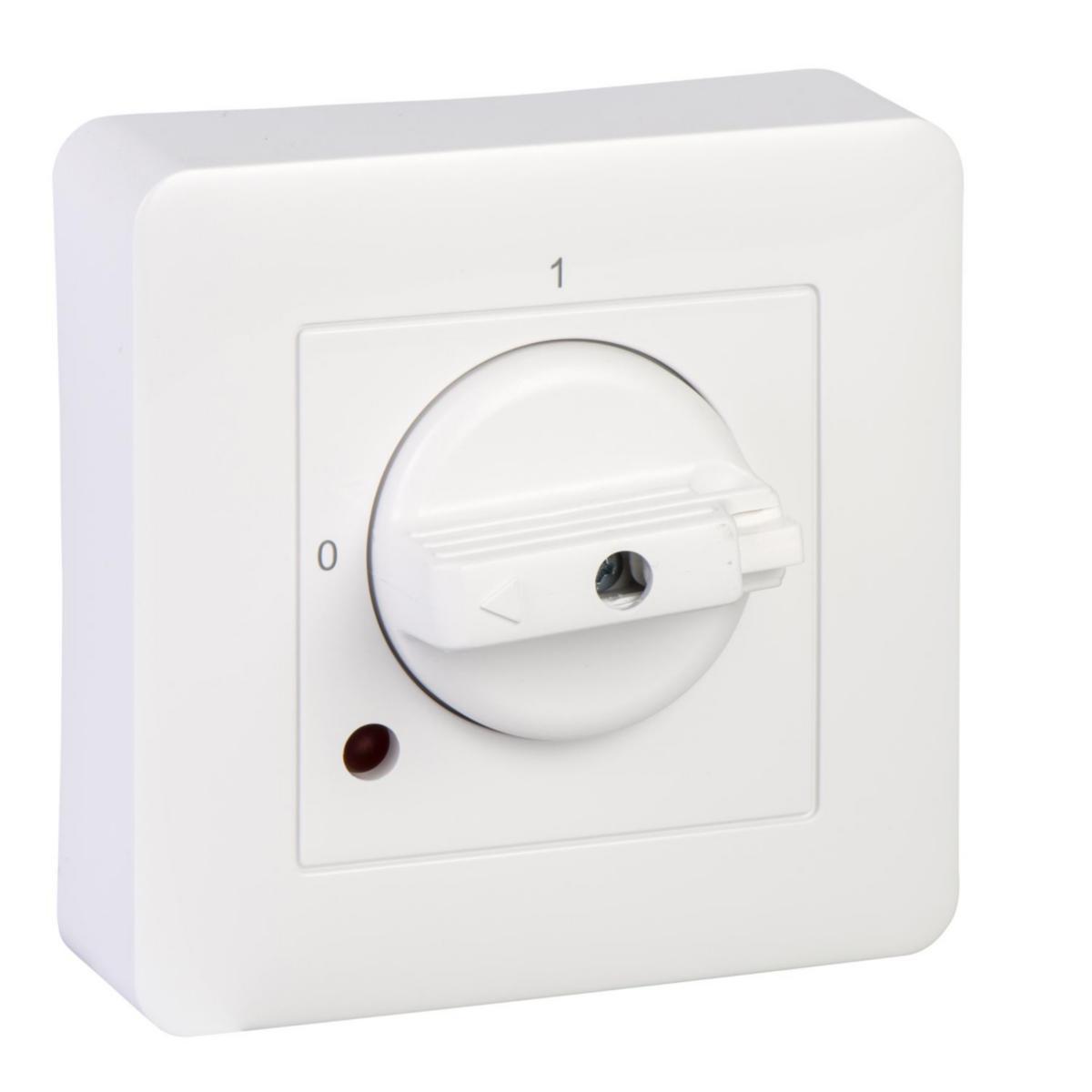

Washing machine switch 3-pole 0-1 incl. red signal light 230V
EXXACT SECTION SW 1-0 LAMP W WDE002202
Article number: Suppl. article no:
3157715
WDE002202
to see price and stock
With nipples for two incoming connection wires and tension relief, lockable knob, screw connection, for recessed installation in device box c/c 60mm.
For IP 44 installation, supplement with sealing set 1820711.
For IP 44 installation, supplement with sealing set 1820711.
- Article number: 3157715
- Suppl. article no: WDE002202
- Ean no: 3606480202636
- Material class QO2700
Technical data
- Packagin Size: 1 ST/10 ST/1200 ST
- Type: Exxact
- Number of poles: 3
- Number of switch positions: 2
- With zero (off) position: Yes
- With retraction in 0-position: No
- Number of rockers: 1
- Nominal voltage: 400 V
- Rated current: 16 A
- Colour: White
- RAL-number (similar): 9003
- Mounting method: Flush-mounted
- Assembly arrangement: Basic element with central cover plate
- Method of operation: Turn button
- Push button switch: No
- Washing machine switch: Yes
- Suitable for degree of protection (IP): IP20
- Halogen free: Yes
- Material: Plastic
- Material quality: Thermoplastic
- Lighting: Yes
- Surface protection: Untreated
- Function lighting: Illuminated (on)
- Type of lighting: Glow lamp
- Type of fastening: Screw mounting
- Surface finishing: Glossy
- Device width: 90 mm
- Device depth: 48 mm
- Device height: 90 mm
- Feedback-signal contact: No
- Switching current for fluorescent lamps: 16 AX
- Number of modules (module system): 0
- Label space/information surface: Yes
- With mounting plate: No
- REACH Date: 2022-07-20
- Built-in depth: 31 mm
- Design: 3-pole 0-1
- REACH Information obligation: No
- Connection type: Screwed terminal
