Garo
Power switch encased 16-25 A
SWITCH GREY 3P 16A
Article number: Suppl. article no:
3155002
3155002
to see price and stock

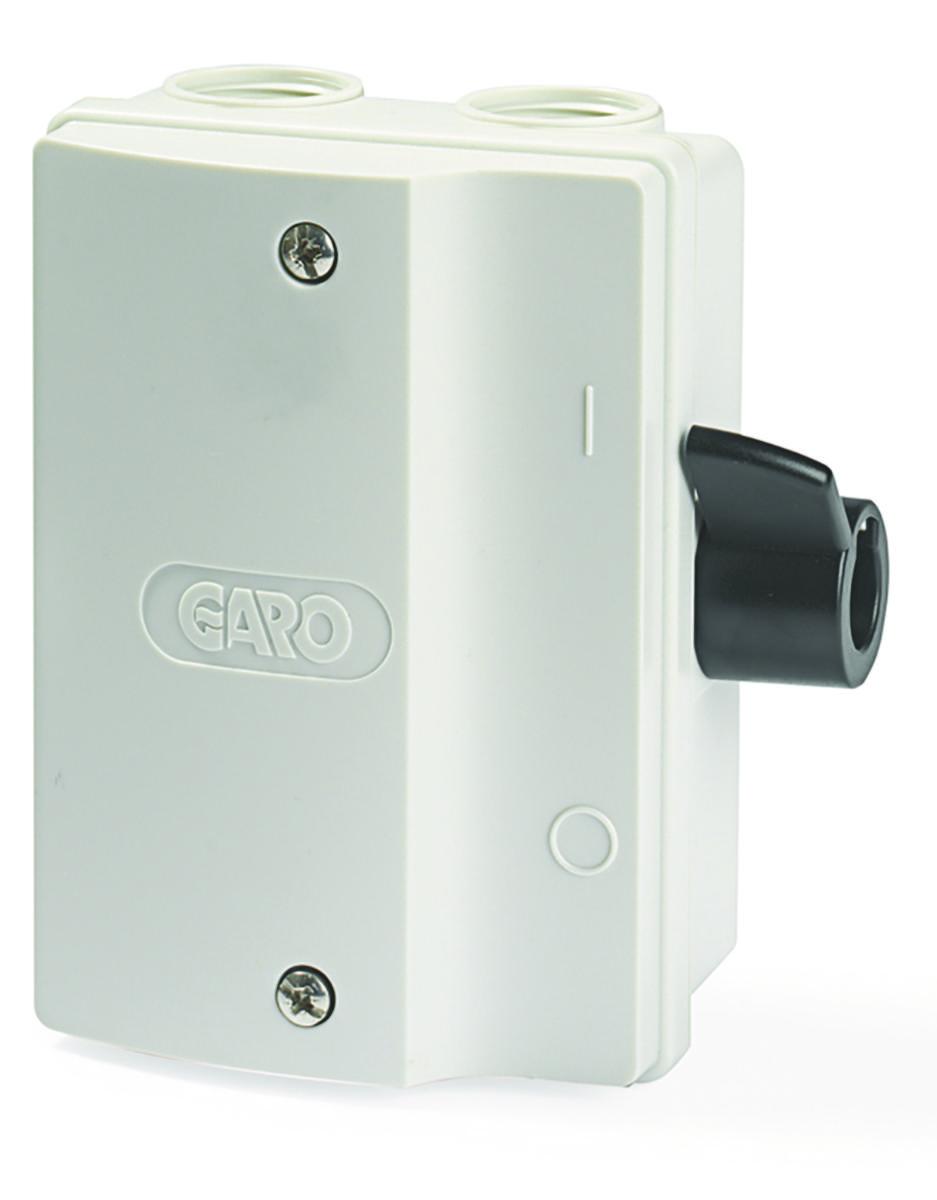

Three-pole switch with an enclosure made of impact-resistant, isolated, corrosion-resistant and halogen-free material with enclosure class IP65. They come as standard with connection options for neutral and protective conductor. The switches are available in grey (RAL 7035) or white (RAL 9010). The white switches are designed to suit the surroundings in a home environment.
GARO switches are designed and tested in accordance with EN 60 947-3, CE-marked, and Intertek Semko certified.
The switches have threaded knock-out holes with metric thread M25 for 16A and M32 for 25A switches, for cable insertion upwards and downwards. Good connection space and a knock-out at the bottom with a 21 mm diameter.
The switch cover screws are so-called captive screws, which means they remain in place in the cover after removal.
The cable connection screws have self-lifting clamps. These are delivered unscrewed for direct connection of wires. The switches come with sealing nipple for IP65.
The switch is designed for construction and industrial environments as well as public and home environments. Switch BGL 316 also has a lamp that comes on when the switch is on.
GARO switches are designed and tested in accordance with EN 60 947-3, CE-marked, and Intertek Semko certified.
The switches have threaded knock-out holes with metric thread M25 for 16A and M32 for 25A switches, for cable insertion upwards and downwards. Good connection space and a knock-out at the bottom with a 21 mm diameter.
The switch cover screws are so-called captive screws, which means they remain in place in the cover after removal.
The cable connection screws have self-lifting clamps. These are delivered unscrewed for direct connection of wires. The switches come with sealing nipple for IP65.
The switch is designed for construction and industrial environments as well as public and home environments. Switch BGL 316 also has a lamp that comes on when the switch is on.
- Article number: 3155002
- Suppl. article no: 3155002
- Ean no: 7331185066899
- Replaces art.nbr: 1930800 1930805
- Material class QO2610
Technical data
- Packagin Size: 1 ST/5 ST
- Type: BGG 316
- Degree of protection (IP), front side: IP65
- Rated permanent current Iu: 16 A
- Colour: Grey
- Rated permanent current at AC-21, 400 V: 0 A
- Rated permanent current at AC-23, 400 V: 0 A
- Rated operation power at AC-23, 400 V: 0 kW
- Rated operation power at AC-3, 400 V: 0 kW
- Switching power at 400 V: 0 kW
- Width: 116 mm
- Depth: 62 mm
- Height: 137 mm
- Number of switches: 0
- Number of poles: 3
- Number of auxiliary contacts as normally open contact: 0
- Number of auxiliary contacts as change-over contact: 0
- Number of auxiliary contacts as normally closed contact: 0
- Device construction: Complete device in housing
- Colour control element: Black
- Type of electrical connection of main circuit: Cable clamp
- Motor drive integrated: No
- Interlockable: Yes
- Suitable for front mounting centre: Yes
- Suitable for front mounting 4-hole: Yes
- Suitable for floor mounting: No
- Suitable for distribution board installation: Yes
- Suitable for intermediate mounting: Yes
- Max. rated operation voltage Ue AC: 690 V
- Motor drive optional: No
- Rated short-time withstand current lcw: 0 kA
- Rated operating voltage: 400-690 V
- Degree of protection (NEMA): Other
- Voltage release optional: No
- Type of control element: Rocker
- Version as main switch: Yes
- Version as emergency stop installation: No
- Version as maintenance-/service switch: No
- Version as safety switch: No
- Version as reversing switch: No
- Conditioned rated short-circuit current Iq: 25 kA
- REACH Date: 2021-06-15
- Max connection area: 6
- REACH Information obligation: No
