Kraus & Naimer

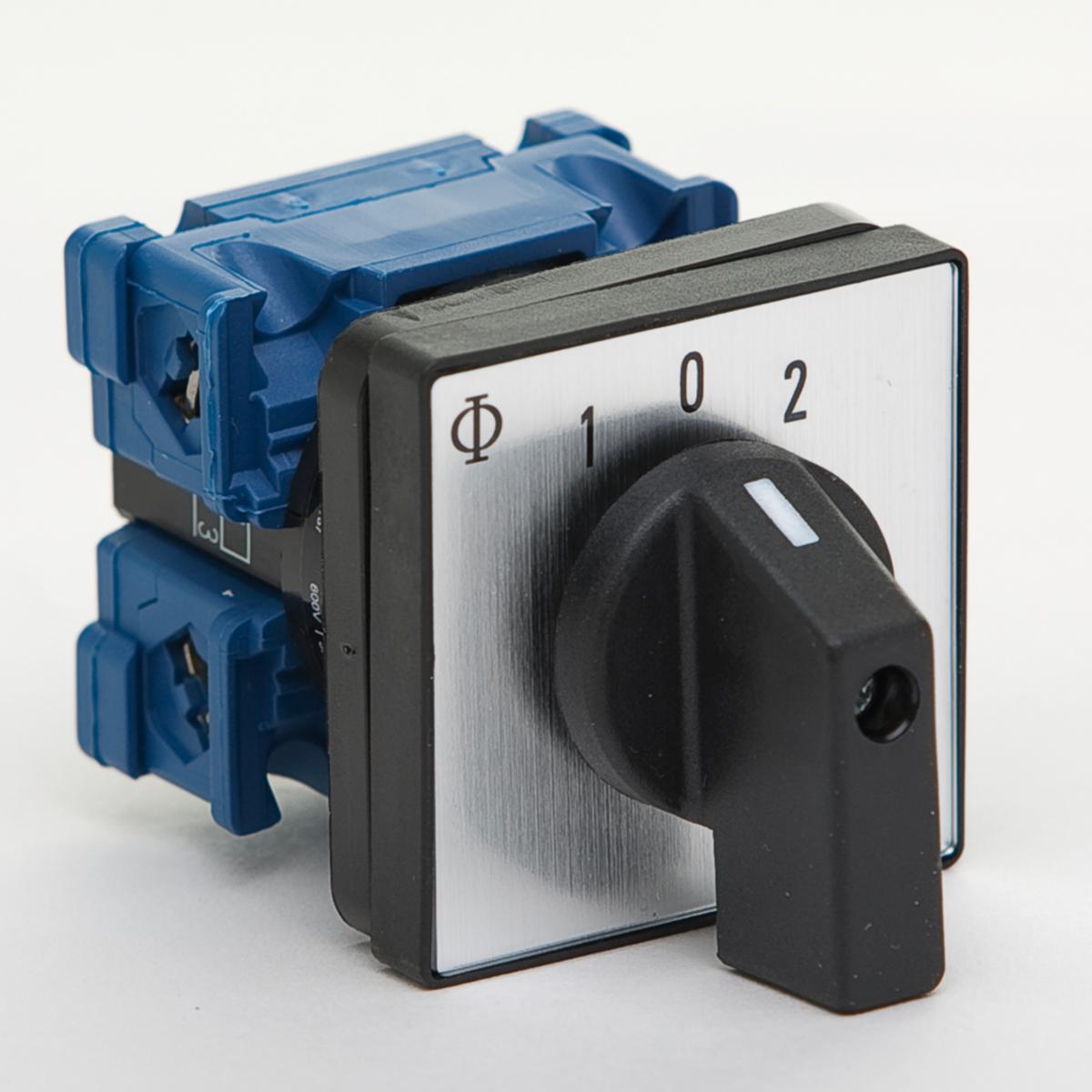

Switch zero position 1-0-2 and springback to 0-position
SWITCH CH10 A214-600 E-V
Article number: Suppl. article no:
3134828
70014548
to see price and stock
Connection diagram A214
- Article number: 3134828
- Suppl. article no: 70014548
- Ean no: 9004257202546
- Replaces art.nbr: 1934028
- Material class QO280B
Technical data
- Packagin Size: 1 PCS/6 PCS
- Type: CH10 A214-600 E-V
- Design: 5-hole, panel
- Number of poles: 1
- Max. rated operation voltage Ue AC: 690 V
- Rated permanent current Iu: 20 A
- Number of switch positions: 3
- With zero (off) position: Yes
- With retraction in 0-position: Yes
- Device construction: Built-in device
- Front shield size: 48x48 mm
- Complete device in housing: No
- Degree of protection (IP), front side: IP40
- Suitable for floor mounting: No
- Suitable for front mounting: Yes
- Type of control element: Turn button
