Kraus & Naimer

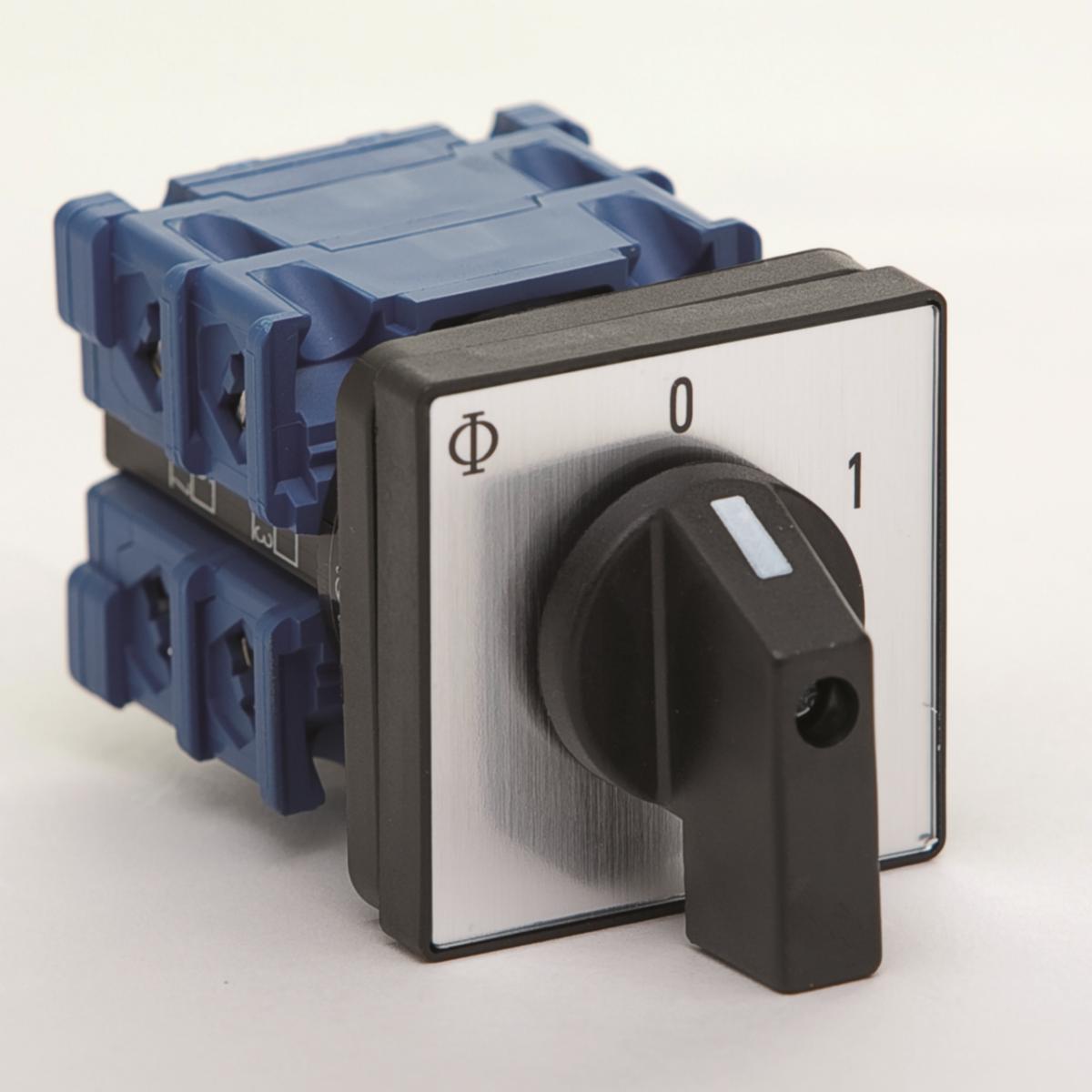

Power switch 0-1, 4-pole
SWITCH CH10 A203-600 E-V
Article number: Suppl. article no:
3134816
70014406
to see price and stock

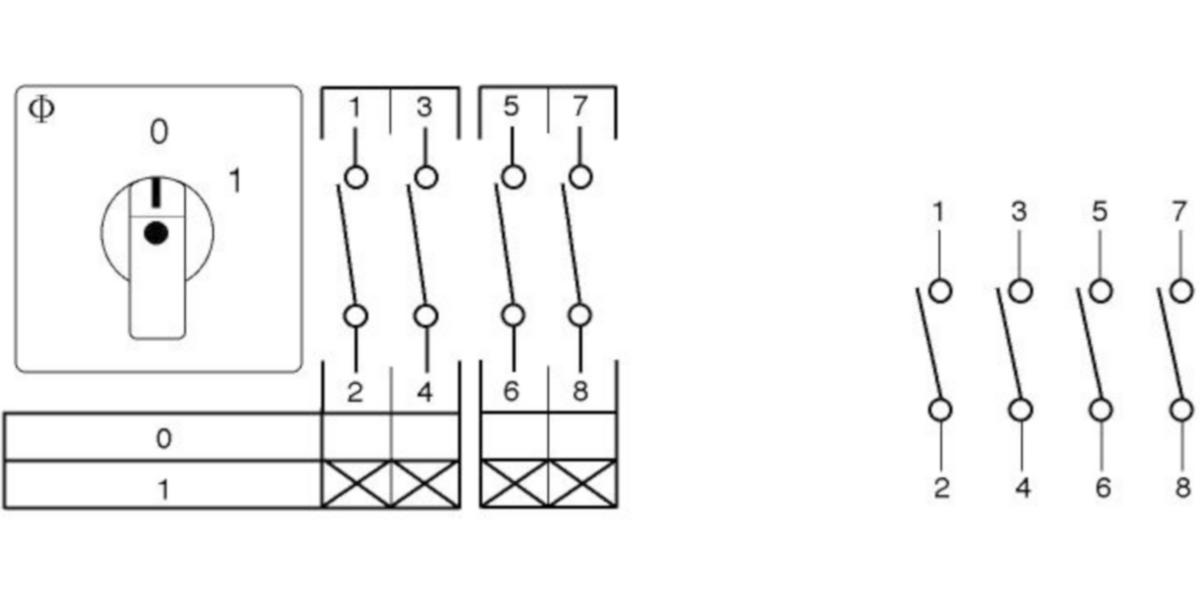

Connection diagram A203
- Article number: 3134816
- Suppl. article no: 70014406
- Ean no: 9004257187294
- Material class QO280B
Technical data
- Packagin Size: 1 ST/6 ST/6 ST
- Type: CH10 A203-600 E-V
- Design: 5-hole, panel
- Number of poles: 4
- Max. rated operation voltage Ue AC: 690 V
- Rated permanent current Iu: 20 A
- Number of switch positions: 2
- With zero (off) position: Yes
- With retraction in 0-position: No
- Device construction: Built-in device
- Front shield size: 48x48 mm
- Complete device in housing: No
- Degree of protection (IP), front side: IP40
- Suitable for floor mounting: No
- Suitable for front mounting: Yes
- Type of control element: Turn button
