ABB

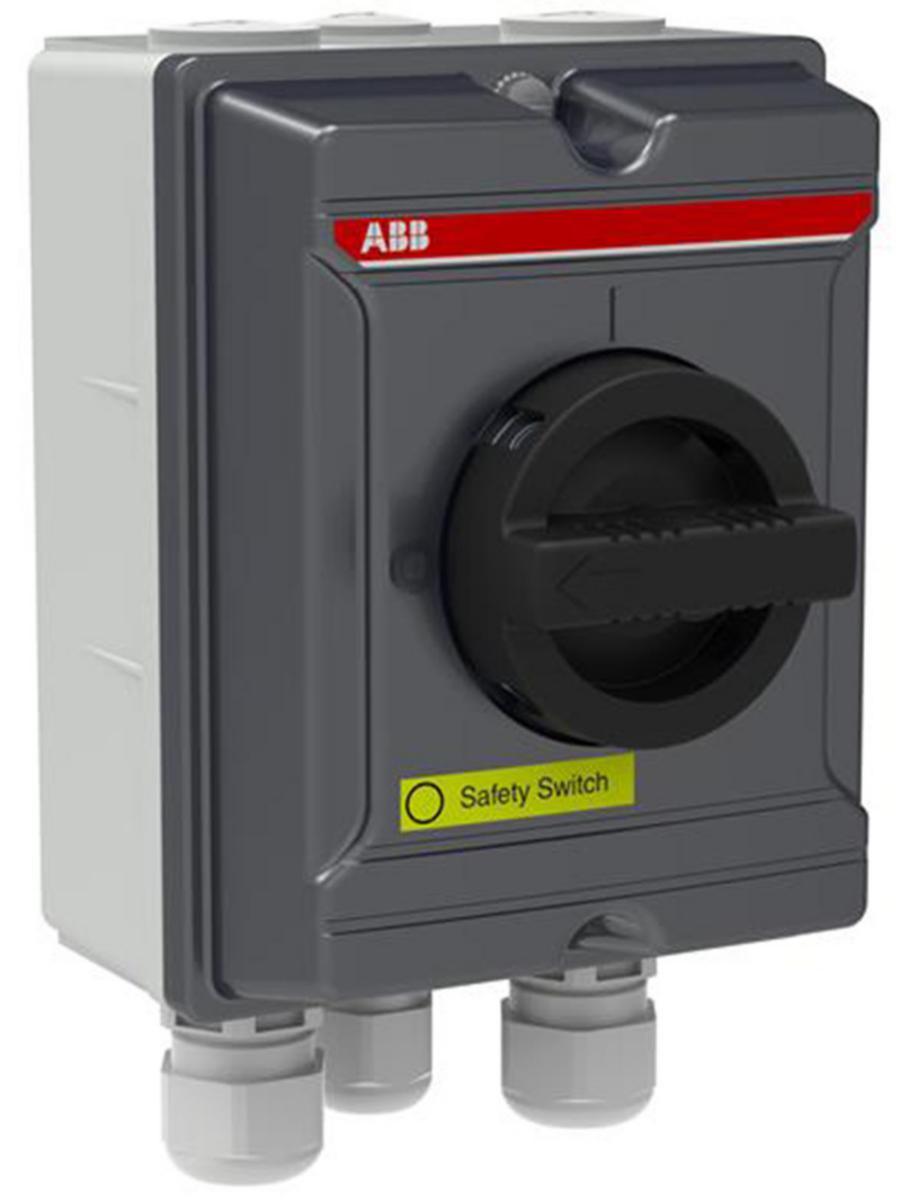

Safety switch light metal OTA 16-63 A

OTA63S3G EMC SAFETY SWITCH 1SCA142679R1001
Artikelnummer:
3134596
Lev. artikelnr:
1SCA142679R1001





 för att se saldo och pris
Safety switch in Aluminum IP65 with black knob, 3 cable glands from below, auxiliary contact: 1NO, including PE terminal. Can be locked with a padlock.
  • Article number:
    3134596
  • Suppl. article no:
    1SCA142679R1001
  • Ean no:
    6417019701783
  • Material class
    QO1300
Teknisk data
  • Rated permanent current at AC-23, 400 V: 63 A
  • Rated permanent current Iu: 115 A
  • Number of poles: 3
  • Number of auxiliary contacts as normally open contact: 1
  • Version as main switch: Yes
  • Version as maintenance-/service switch: Yes
  • Version as safety switch: Yes
  • Max. rated operation voltage Ue AC: 750 V
  • Rated operation power at AC-23, 400 V: 30 kW
  • Rated permanent current at AC-21, 400 V: 63 A
  • Version as emergency stop installation: No
  • Degree of protection (IP), front side: IP65
  • Number of switches: 1
  • Rated operating voltage: 750 V
  • Colour control element: Black
  • Device construction: Complete device in housing
  • Type of electrical connection of main circuit: Screw connection
  • Motor drive integrated: No
  • Interlockable: Yes
  • Suitable for front mounting 4-hole: No
  • Suitable for front mounting centre: No
  • Suitable for floor mounting: No
  • Suitable for distribution board installation: Yes
  • Motor drive optional: No
  • Voltage release optional: No
  • Type of control element: Long rotary handle
  • Version as reversing switch: No
  • Rated short-time withstand current lcw: 2.5 kA
  • Switching power at 400 V: 30 kW
  • REACH Date: 2023-01-18
  • REACH Information obligation: No
