ABB

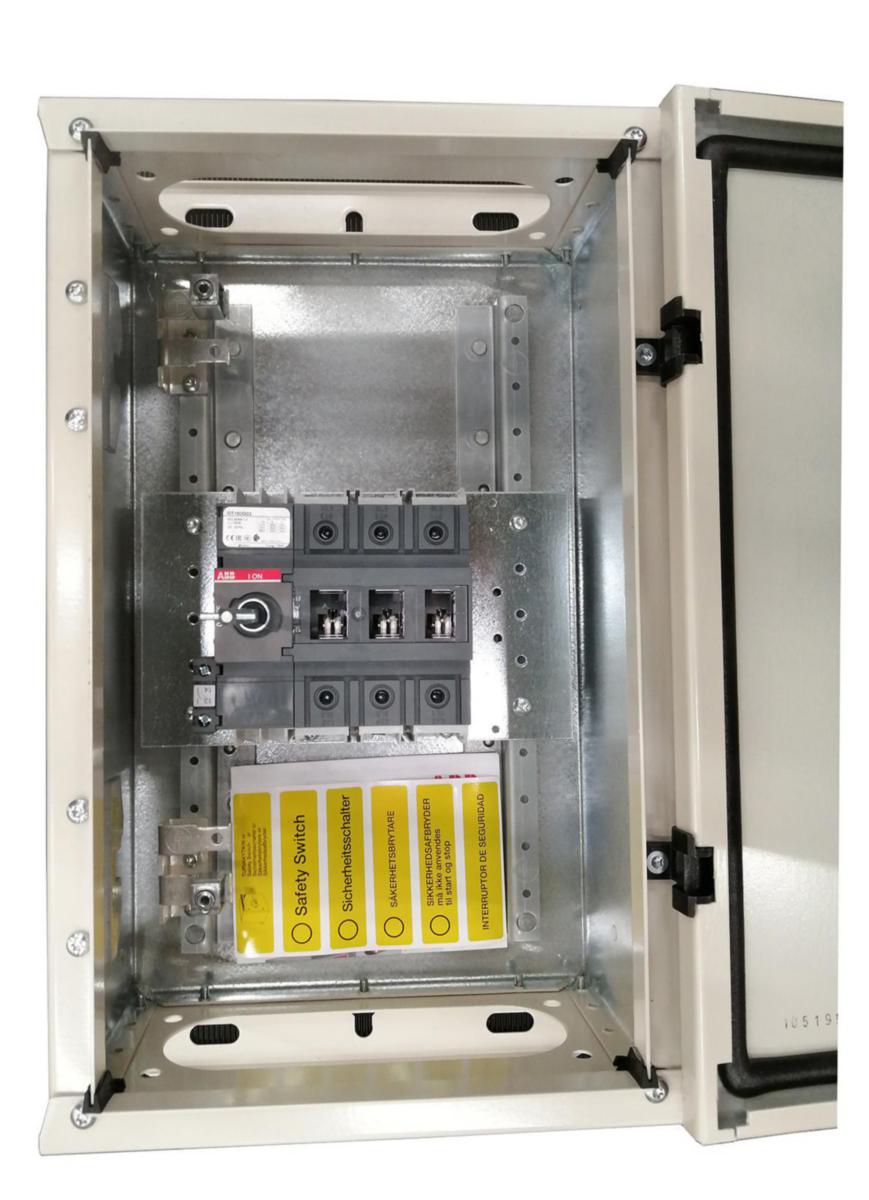

Safety switch OT 90-160 A throughput connector
OT125GLCC3TZ SAFETY SWITCH 1SCA148212R1001
Article number: Suppl. article no:
3134566
1SCA148212R1001
to see price and stock
3-pole for FL21 flanges.
Complete safety switches with mounted end plates.
Auxiliary contact included closing / breaking. Cover plates attached.
Complete safety switches with mounted end plates.
Auxiliary contact included closing / breaking. Cover plates attached.
- Article number: 3134566
- Suppl. article no: 1SCA148212R1001
- Ean no: 6417019776033
- Material class QO1300
Technical data
- Rated permanent current at AC-23, 400 V: 125 A
- Rated permanent current Iu: 125 A
- Number of poles: 3
- Number of auxiliary contacts as normally open contact: 1
- Number of auxiliary contacts as normally closed contact: 1
- Version as main switch: Yes
- Version as maintenance-/service switch: Yes
- Version as safety switch: Yes
- Max. rated operation voltage Ue AC: 1000 V
- Rated operation power at AC-23, 400 V: 55 kW
- Rated permanent current at AC-21, 400 V: 125 A
- Version as emergency stop installation: No
- Degree of protection (IP), front side: IP65
- Number of switches: 1
- Rated operating voltage: 1000 V
- Colour control element: Black
- Device construction: Complete device in housing
- Type of electrical connection of main circuit: Screw connection
- Motor drive integrated: No
- Interlockable: Yes
- Suitable for front mounting 4-hole: No
- Suitable for front mounting centre: No
- Suitable for floor mounting: No
- Suitable for distribution board installation: Yes
- Motor drive optional: No
- Voltage release optional: No
- Type of control element: Long rotary handle
- Version as reversing switch: No
- Conditioned rated short-circuit current Iq: 24 kA
- Rated short-time withstand current lcw: 4 kA
- Switching power at 400 V: 55 kW
- REACH Date: 2023-01-18
- REACH contains candidate substances: Bly
- REACH Information obligation: Yes
