Motor starter protector switch GV3P

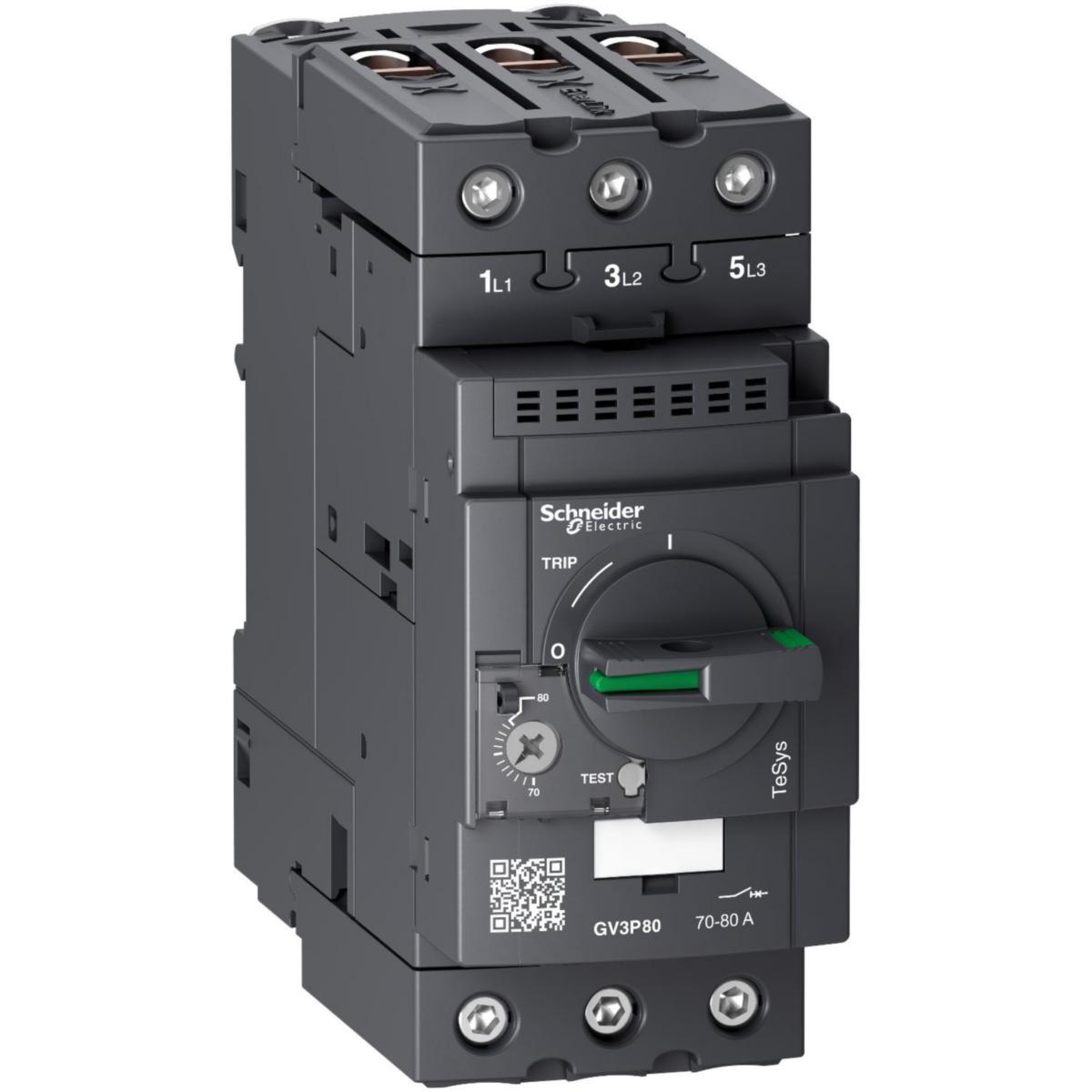

MOTOR CIRCUIT BREAKER GV3P80
Article number: Suppl. article no:
3110442
GV3P80
to see price and stock
GV3 P is a 3 pole motor protection switch with thermal and magnetic protection against overload and short circuit. GV3 P offers 7 different sizes with setting ranges 9- 65A. Breaking capacity Icu 100kA from 9-32A and Icu 50kA from 40-65A at 400V. The magnetic protection Id (short-circuit protection) has a fixed trigger level of 13 times maximum adjustable current for thermal dissipation power. GV3 P has a width of 55 mm. GV3 P has a rotating 3 position knob. GV3 P is specially designed for operation and protection of motors according to the standards IEC 947-1, IEC 9 47-2 and UL / CSA; UL 508 Type E Certificate.
Safety:
• IP20 touch guard
• Hexagonal connection screw
• Schneider patented power connection which always guarantees 5Nm tightening torque (regardless of using 2 different cable areas).
• Trip current (A) = the magnetic protection trigger level of 20%.
Safety:
• IP20 touch guard
• Hexagonal connection screw
• Schneider patented power connection which always guarantees 5Nm tightening torque (regardless of using 2 different cable areas).
• Trip current (A) = the magnetic protection trigger level of 20%.
- Article number: 3110442
- Suppl. article no: GV3P80
- Ean no: 3606481304568
- Material class QO021B
Technical data
- Packagin Size: 1 ST/120 ST/120 ST
- Type: GV3P80
- Overload release current setting: 70-80 A
- Adjustment range undelayed short-circuit release: 1120 A
- Rated short-circuit breaking capacity Icu at 400 V, AC: 50 kA
- Switch off technique: Thermomagnetic
- Rated operating voltage: 0-690 V
- Rated operation power at AC-3, 400 V: 45 kW
- Rated permanent current Iu: 80 A
- Phase failure sensitive: Yes
- Number of poles: 3
- Device construction: Complete device in housing
- With integrated auxiliary switch: No
- With integrated under voltage release: No
- Rated operation power at AC-3, 230 V: 22 kW
- Degree of protection (IP): IP20
- Type of electrical connection of main circuit: Screw connection
- With thermal overload protection: Yes
- Type of control element: Turn button
- Width: 55 mm
- Depth: 136 mm
- Height: 132 mm
- REACH Date: 2022-07-20
- REACH contains candidate substances: 1,2-dimetoxietan, Dimethyl Glycol, 1,2-dimethoxyethane
- Product series: EVlink
- REACH Information obligation: Yes
