Kraus & Naimer

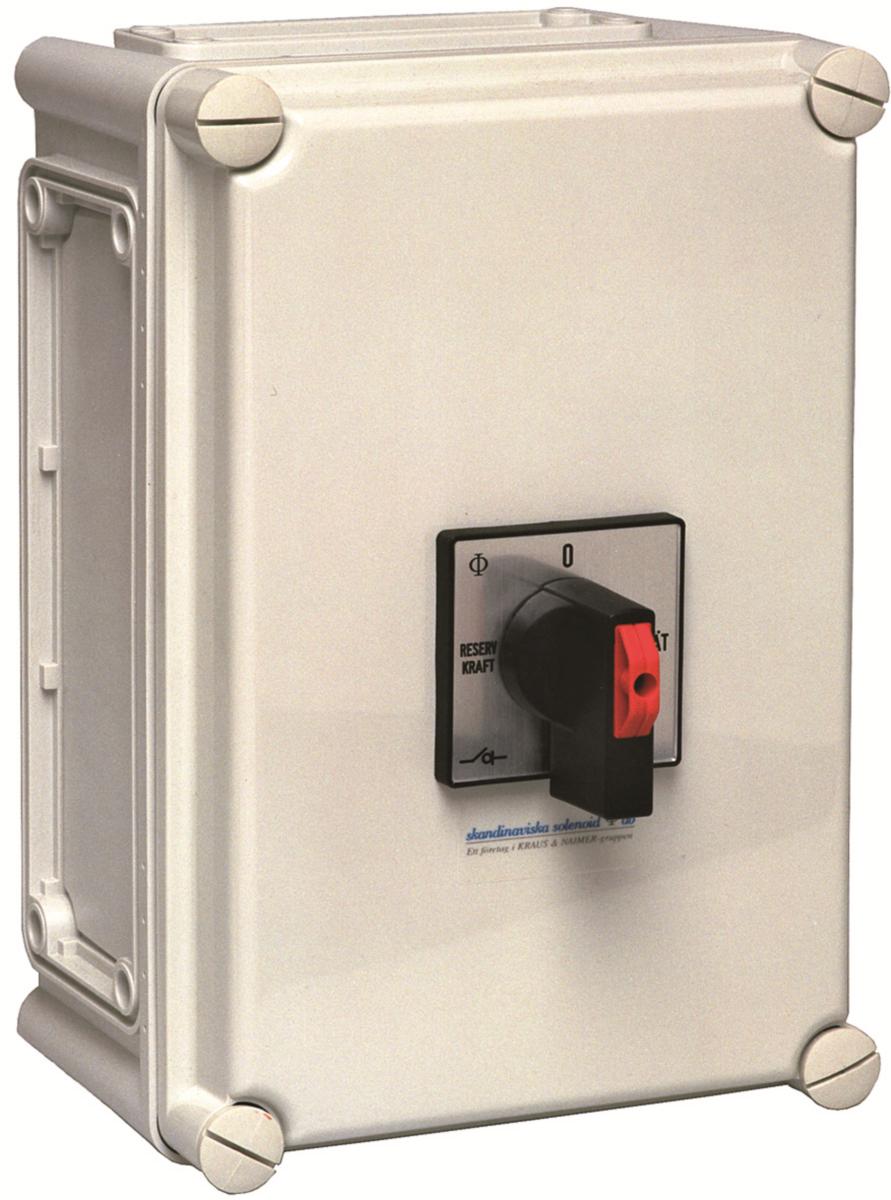

Auxiliary power switch 4-pole fixed
SWITCH KG41B T904/S-A420 *ST
Article number: Suppl. article no:
3134502
70042411
to see price and stock
In encapsulated design for fixed installation
Lockable black knob. Electro-gray enclosure of polycarbonate. IP 65. Earth- and neutral base.
An earthed aux. contact in each position, AUX POWER and MAINS.
Cable inputs: 4×FL21
Lockable black knob. Electro-gray enclosure of polycarbonate. IP 65. Earth- and neutral base.
An earthed aux. contact in each position, AUX POWER and MAINS.
Cable inputs: 4×FL21
- Article number: 3134502
- Suppl. article no: 70042411
- Ean no: 9004257086610
- Material class QO221B
Technical data
- Type: KG41B T904/S-A420*ST
- Model: Reverser
- Number of poles: 4
- With zero (off) position: Yes
- Rated permanent current Iu: 40 A
- Rated operation power at AC-3, 400 V: 11 kW
- Height: 280 mm
- Width: 280 mm
- Deep: 130 mm
- Degree of protection (IP), front side: IP65
- Number of auxiliary contacts as normally open contact: 2
- Number of auxiliary contacts as change-over contact: 0
- Number of auxiliary contacts as normally closed contact: 0
- Type of electrical connection of main circuit: Screw connection
- Complete device in housing: Yes
- Type of control element: Wing knob
