WVFX Pressure Controlled Water Walves for high pressure Refrigerants

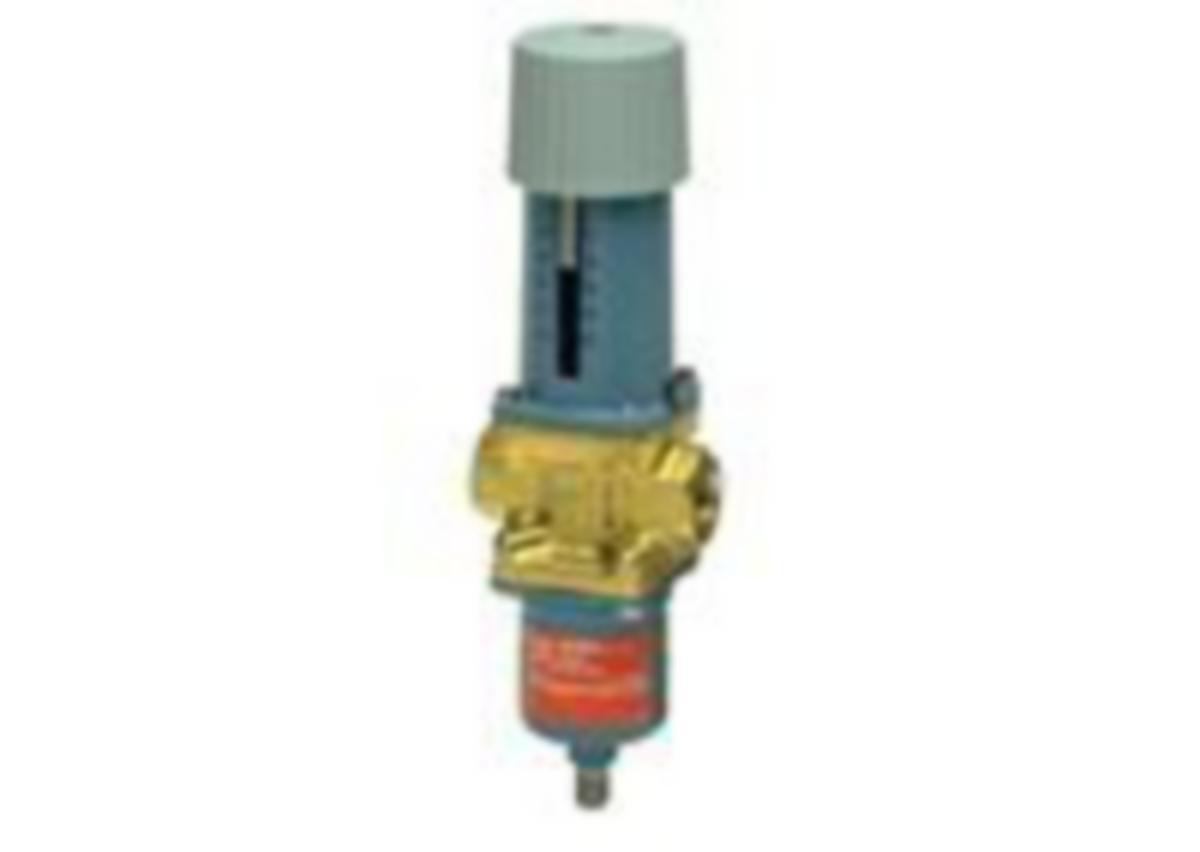

WVFX 15, PRESSURE-CONTROLLED WATER VALVE R410
Article number: Suppl. article no:
003N2410
003N2410
to see price and stock
WVFX 10-25 pressure controlled water valves are designed for high pressure coolants such as R410A and CO2. Connection impulse line 1/4 "flare.
Coolant (liquid): water, neutral brine.
Temperature range coolant: –25 - +130°C.
Opening differential pressure: max 10 bar.
Max working pressure water side: 16 bar.
Max working pressure coolant side: 45.2 bar
Coolant (liquid): water, neutral brine.
Temperature range coolant: –25 - +130°C.
Opening differential pressure: max 10 bar.
Max working pressure water side: 16 bar.
Max working pressure coolant side: 45.2 bar
- Article number: 003N2410
- Suppl. article no: 003N2410
- Material class RN6510
Technical data
- Connection: 1/2"
- Work area: 15-29 bar
- Cv-value: 1.900 m³/h
- Refrigerant: R134a, R290, R404A, R407A, R407C, R407F, R410A, R448A, R449A, R450A, R452A, R454C (XL20), R513A, R600a, R1234yf, R1270, R600
