Copeland
Copeland ZF, Rotalock

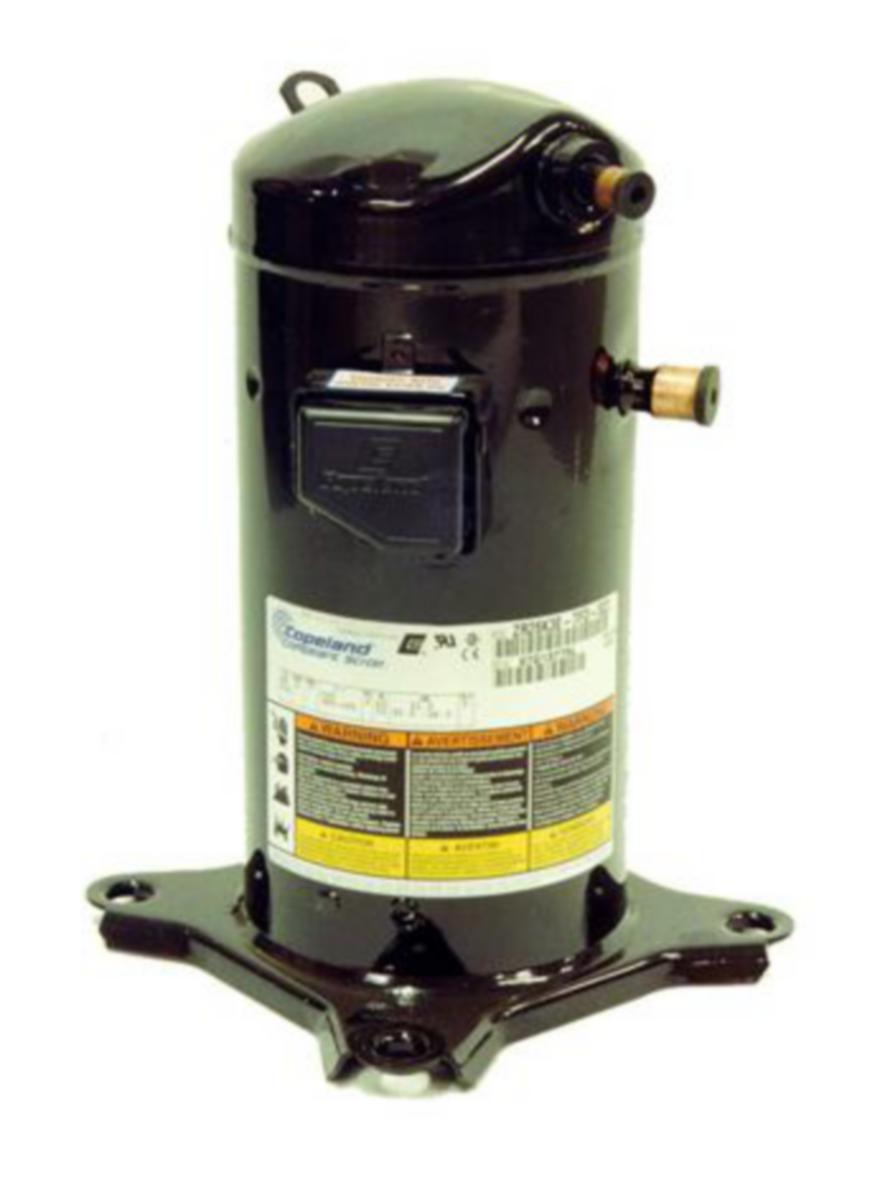

COMPRESSOR ZF06 K4E incl. DTC 400/3/50
Article number: Suppl. article no:
6858295
8814296
to see price and stock
For rotalock connection including oil sight glass, 400V 3-phase 50Hz.Cooling via liquid injection.
Compressor ZF09 - ZF18 supplied with DTC/LIV valve and hot gas thermostat. Compressor ZF24 - ZF48 supplied with hot gas thermostat, power relay and capillary tubes kit.
All of the cooling effect is specified in accordance with EN12900 at 0°C undercooling and +20°C suction line temperature, condensation temperature +40°C. The cooling outputs given below are specified at -35°C evaporation temperature. The compressor is supplied without crankcase heater and rotalock valves.
Approved for the majority of HCF and HFO refrigerants, contact Ahlsell Kyl for further information.
Compressor ZF09 - ZF18 supplied with DTC/LIV valve and hot gas thermostat. Compressor ZF24 - ZF48 supplied with hot gas thermostat, power relay and capillary tubes kit.
All of the cooling effect is specified in accordance with EN12900 at 0°C undercooling and +20°C suction line temperature, condensation temperature +40°C. The cooling outputs given below are specified at -35°C evaporation temperature. The compressor is supplied without crankcase heater and rotalock valves.
Approved for the majority of HCF and HFO refrigerants, contact Ahlsell Kyl for further information.
- Article number: 6858295
- Suppl. article no: 8814296
- Material class RC0060
Technical data
- Packagin Size: 1 STK/12 STK
- Stroke volume: 5.9 m³/h
- Cooling capacity R404A: 1.4 kW
- Weight: 25 kg
- Rated current: 5 A
