Acetec
Heat Recovery Unit EvoAir A250S Evocontrol, Acetec
EVOAIR A250S AIR HANDLING UNIT EVOCONTROL ACETEC
Article number: Suppl. article no:
66120602
30251
to see price and stock
![Produkten är miljöbedömd av SundaHus Produkten är miljöbedömd av SundaHus](/globalassets/site-images/sv_icons/step/sha.jpg)

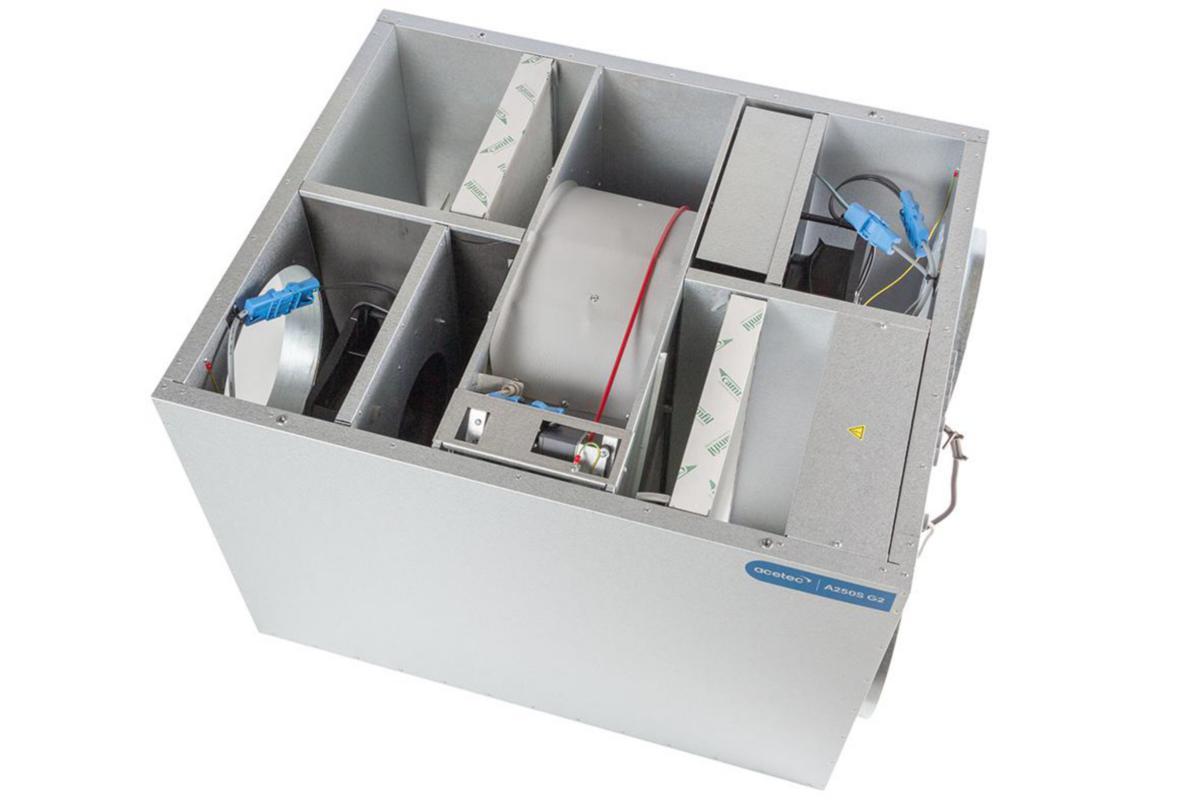

EvoAir A250S is a side-connected unit with the highest air technical performance in compact format. Suitable for, for example, school environments. The EvoAir A250S ventilation unit is designed with the latest technology to provide high air comfort at low operating cost. Suitable for residential ventilation and other smaller premises. For example. offices, day care centers, workshops etc. The ventilation unit is equipped with rotating heat exchangers with efficiency up to 89% and EC fans for the lowest energy consumption.The placement is most suitable on wind, in storage or similar space. Complete with user-friendly control equipment with separate display. simple and quick installation as the after-heat battery and sensors are mounted internally in the unit, clearly ready for commissioning via cord with plug / connection glove.
EvoControl
• 4.3 inch color panel with touch display. • Wired network connection. • Cloud solution with responsive design that adapts to mobile, tablet or computer.
features
• Control via the cloud • Timer • Pressure control • Air quality control • Humidity control • Logging of measurement values and history • Clear text and parameters • Flow chart
EvoControl
• 4.3 inch color panel with touch display. • Wired network connection. • Cloud solution with responsive design that adapts to mobile, tablet or computer.
features
• Control via the cloud • Timer • Pressure control • Air quality control • Humidity control • Logging of measurement values and history • Clear text and parameters • Flow chart
- Article number: 66120602
- Suppl. article no: 30251
- Material class PNK280
Technical data
- Design: Side connected
- Air volume at 100 Pa: 235 l/s
- Width: 780 mm
- Length: 960 mm
- Height: 710 mm
- Nominal current: 10 A
- Voltage: 230 V
- Weight: 103 kg
- Degree of protection (IP): IP21
- Filter class: F7
- Filter class ePM1: 55%
- Insulation thickness: 30 mm
- Air connection diameter: 315 mm
- Additional electrical heating: 0.45-1.7 kW
- Reheater: 450 - 1700 W
- Max air flow at 100Pa: 250 l/s
