Swegon
Fire damper ABC-SC+60, ABC Vent
FIRE DAMPER SC+60 D:100 ABC VENT
Article number: Suppl. article no:
6542730
50031-1500000
Normally in stock
to view the store status of the store
to see price and stock

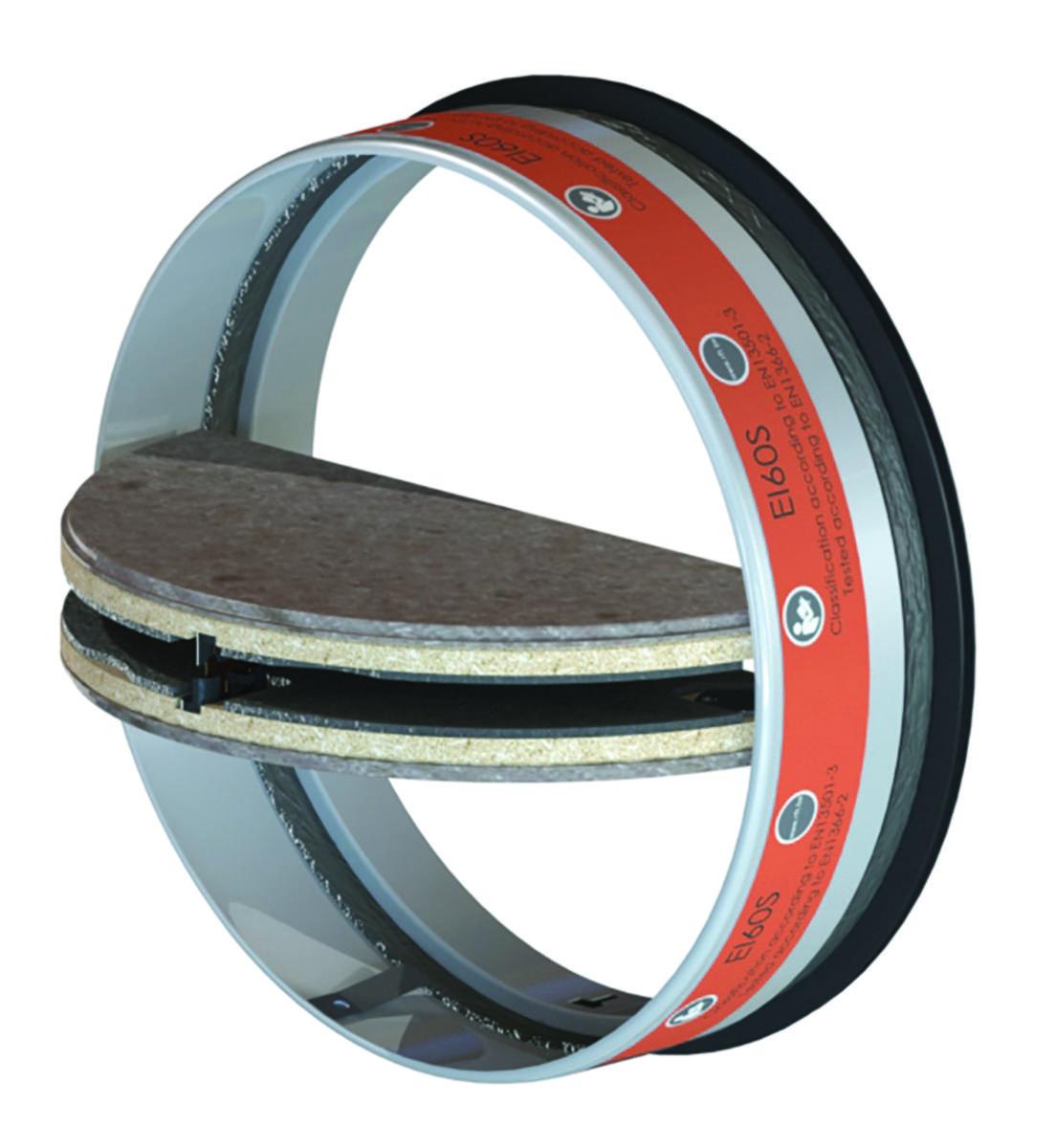

Circular fire damper for installation in ventilation ducts that pass through a building element designed to prevent the spread of fire/fire gases. The circular fire backdraught ABC-SC60 is held in open position with the aid of a fusible plug. When the temperature in the duct exceeds 72º the fusible plug is triggered and the blade damper is closed automatically. Two locking blades keep the damper blade in its safety position which prevents the spread of fire, fire gases.
Version:
Circular damper made of steel plate with flame resistant strip around the tunnel. Rubber seal ring. Fusible plug 72ºC.
Fire resistance class:
EI 60 S Fire tests are conducted in accordance with 1366-2.
Version:
Circular damper made of steel plate with flame resistant strip around the tunnel. Rubber seal ring. Fusible plug 72ºC.
Fire resistance class:
EI 60 S Fire tests are conducted in accordance with 1366-2.
- Article number: 6542730
- Suppl. article no: 50031-1500000
- Material class PNI80B
Technical data
- Packagin Size: 1 ST/10 ST
- Connection diameter: 100 mm
- Length: 60 mm
- Weight: 0.3 kg
- Fire class: EI 60 (ve i o) S
- Damper motor, Belimo: Standard fuse
