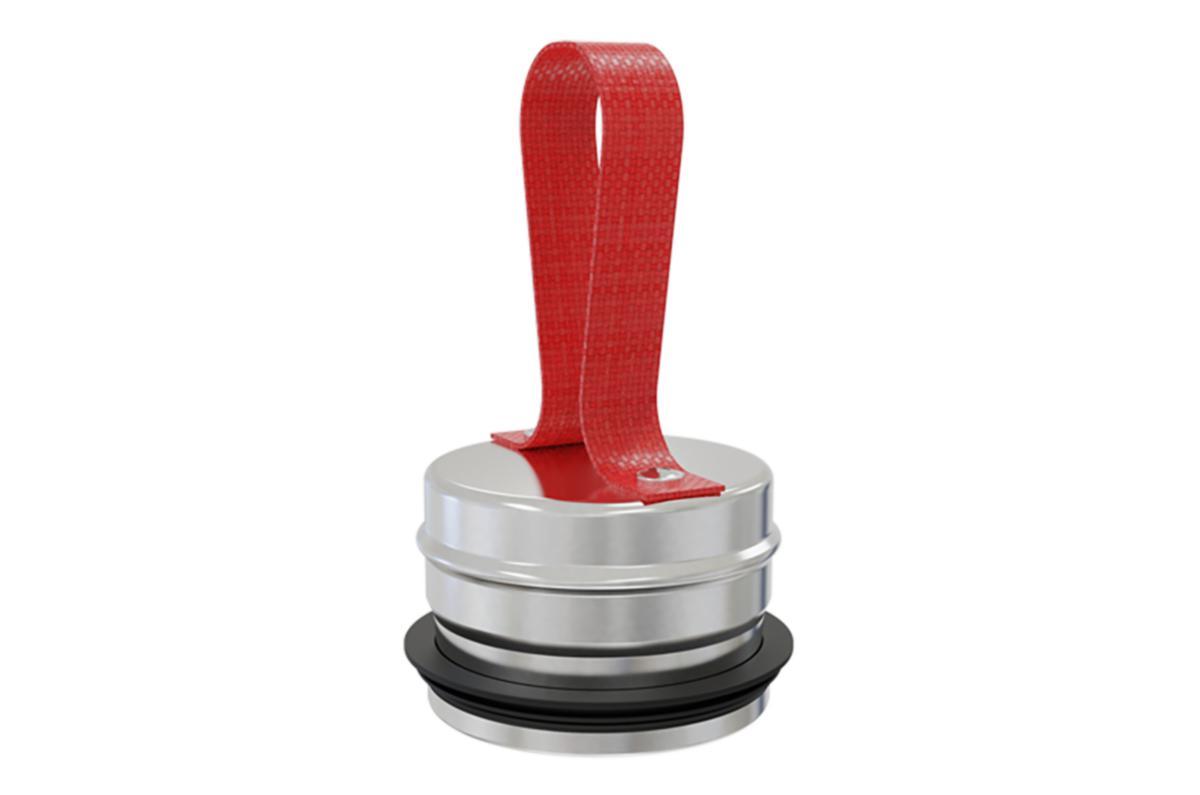

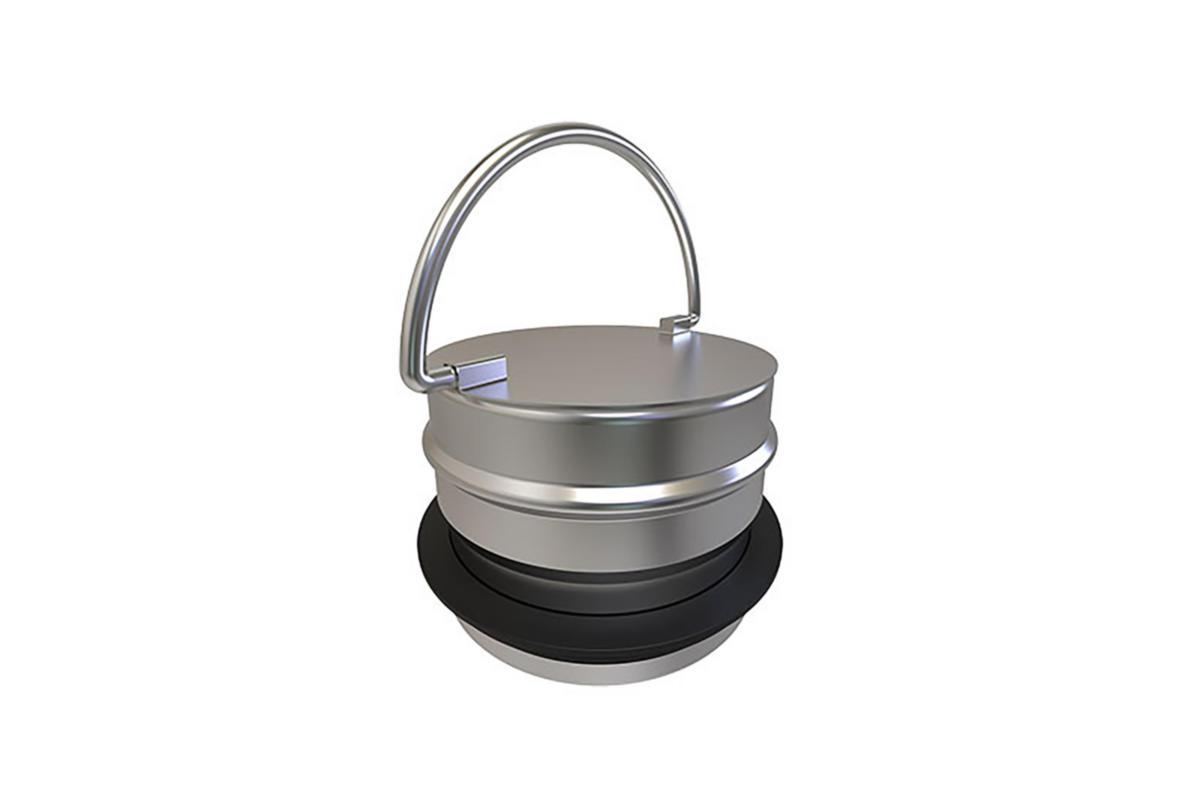

Cleaning Lid HÄLH, uninsulated, push-in, Hallström
END-CAP HANDLE HÄLH 80 NIPPLE HALLSTRÖM
Article number: Suppl. article no:
9942030
FE10002
to see price and stock
Uninsulated cleaning cover HÄLH, push-in. VENT details for ventilation systems.
Dimensions and tolerances according to standard SS-EN 1506. The details are made of hot-dip galvanized steel sheet DX51 + Z275MAC according to SS-EN 10346.
Surface coating with Z275 meets corrosion class C3 according to SS-EN ISO 12944-2. Duct system meets tightness class D according to SS-EN 12237.
The system's components have sealing rings made of EPDM rubber.
Type approval 1666/78
Dimensions and tolerances according to standard SS-EN 1506. The details are made of hot-dip galvanized steel sheet DX51 + Z275MAC according to SS-EN 10346.
Surface coating with Z275 meets corrosion class C3 according to SS-EN ISO 12944-2. Duct system meets tightness class D according to SS-EN 12237.
The system's components have sealing rings made of EPDM rubber.
Type approval 1666/78
- Article number: 9942030
- Suppl. article no: FE10002
- Ean no: 7332460080883
- Material class PNH340
Technical data
- Packagin Size: 1 PCS/50 PCS/1200 PCS
- Nominal duct diameter: 80 mm
- Connection: Insert end
- Length: 63 mm
- Material: Steel
- With pre-mounted seal: Yes
- With handgrip: Yes
- Weight: 0.1 kg
- Surface treatment: Hot-dip galvanised
