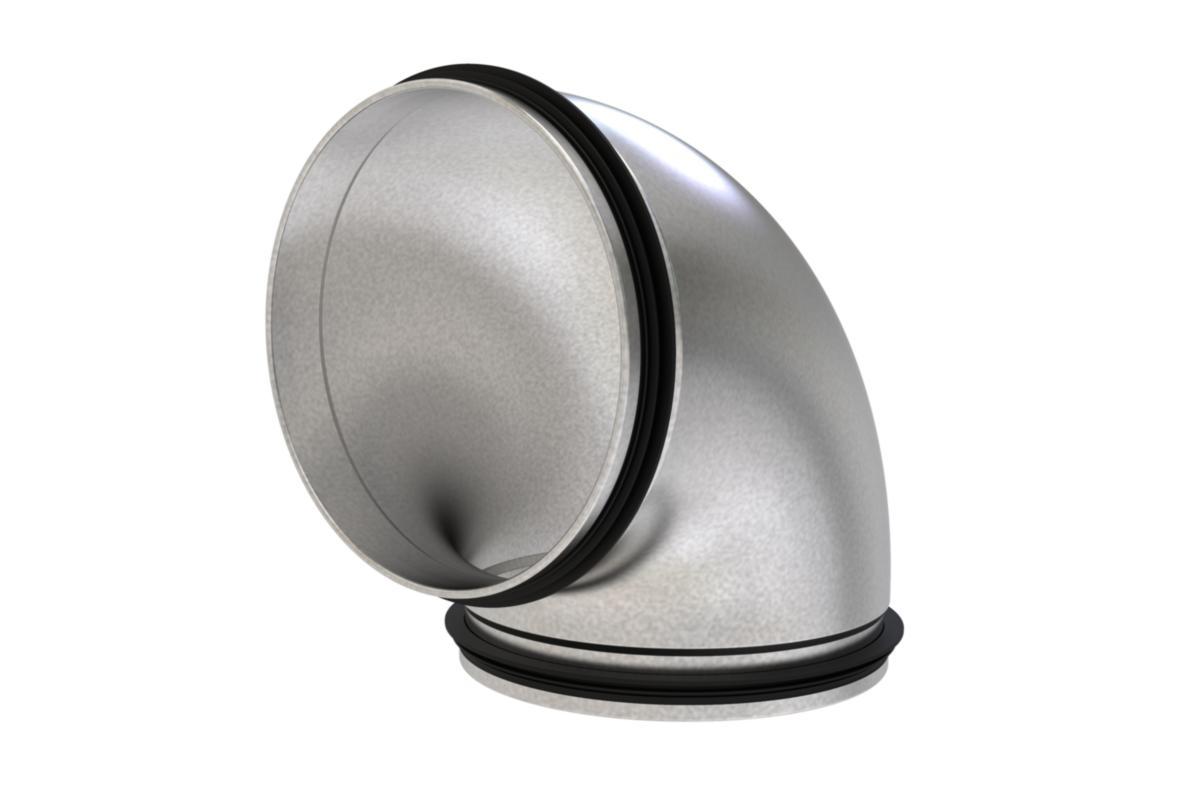

Short Bend HIBK-90°, nipple - nipple, Hallström
SHORT BEND HIBK 100-90 NN HALLSTRÖM
Article number: Suppl. article no:
9940998
DF10003
to see price and stock
Short bend HIBK-90°, in a short design. VENT details for ventilation systems, segment-built or pressed depending on size. Push-fit connection (nipple) on both sides.
Dimensions and tolerances according to standard SS-EN 1506. The details are made of hot-dip galvanized steel sheet DX51 + Z275MAC according to SS-EN 10346.
Surface coating with Z275 meets corrosion class C3 according to SS-EN ISO 12944-2. Duct systems meet tightness class D according to SS-EN 12237.
The system's components have sealing rings made of EPDM rubber.
Type approval 1666/78
Dimensions and tolerances according to standard SS-EN 1506. The details are made of hot-dip galvanized steel sheet DX51 + Z275MAC according to SS-EN 10346.
Surface coating with Z275 meets corrosion class C3 according to SS-EN ISO 12944-2. Duct systems meet tightness class D according to SS-EN 12237.
The system's components have sealing rings made of EPDM rubber.
Type approval 1666/78
- Article number: 9940998
- Suppl. article no: DF10003
- Ean no: 7332460075766
- Material class PNH342
Technical data
- Packagin Size: 1 PCS/50 PCS/400 PCS
- Nominal duct diameter: 100 mm
- Bend angle: 90 °
- Outer surface protection: Hot-dip galvanised
- Material duct: Steel
- Inner surface protection: Hot-dip galvanised
- Bend model: Smooth bend
