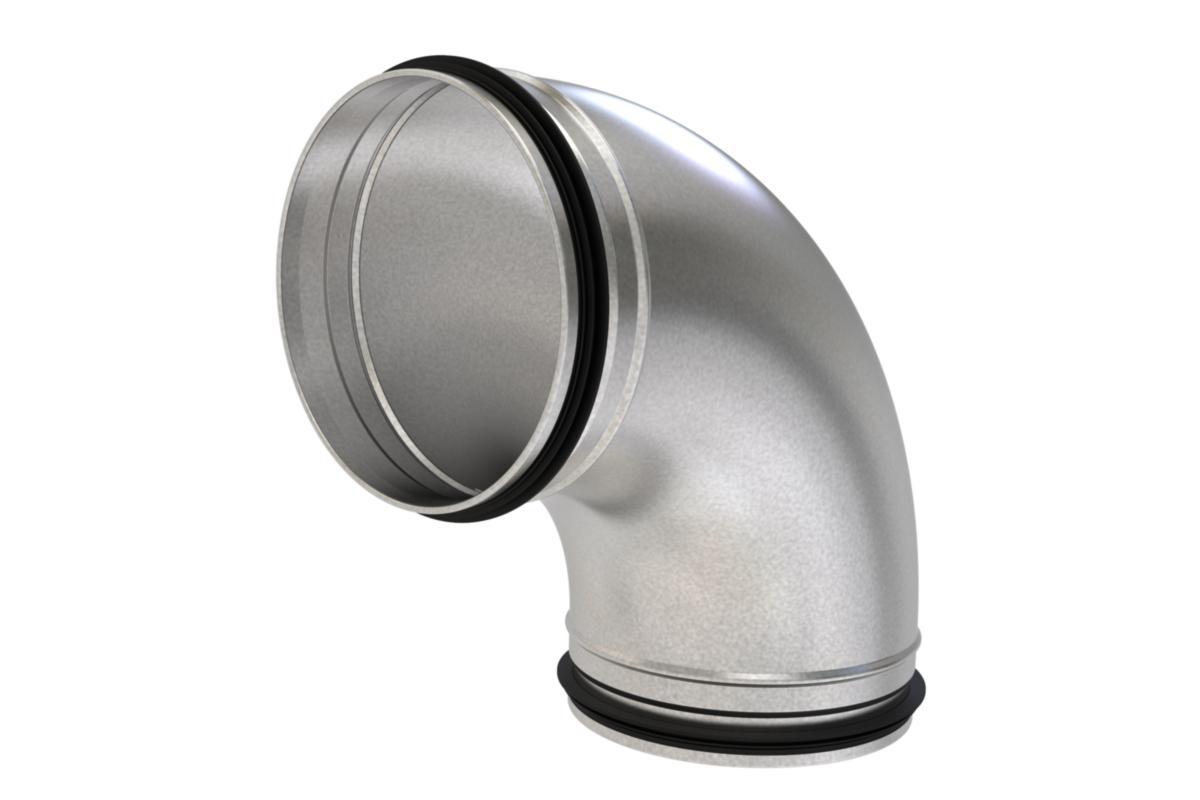

Bend HV-90°, Hallström
BEND HV 63-90° HALLSTRÖMS
Article number: Suppl. article no:
9940906
DA10001
to see price and stock
Bend HV-90°. VENT components for ventilation systems, segment-built or pressed depending on size.
Dimensions and tolerances according to standard SS-EN 1506. The components are made of hot-dip galvanized steel sheet DX51 + Z275MAC according to SS-EN 10346.
Surface coating with Z275 meets corrosion class C3 according to SS-EN ISO 12944-2. Duct systems meet tightness class D according to SS-EN 12237.
The system's components have sealing rings made of EPDM rubber.
Type approval 1666/78
Dimensions and tolerances according to standard SS-EN 1506. The components are made of hot-dip galvanized steel sheet DX51 + Z275MAC according to SS-EN 10346.
Surface coating with Z275 meets corrosion class C3 according to SS-EN ISO 12944-2. Duct systems meet tightness class D according to SS-EN 12237.
The system's components have sealing rings made of EPDM rubber.
Type approval 1666/78
- Article number: 9940906
- Suppl. article no: DA10001
- Ean no: 7332460072680
- Material class PNH270
Technical data
- Nominal duct diameter: 63 mm
- Bend angle: 90 °
- Outer surface protection: Hot-dip galvanised
- Material duct: Steel
- Inner surface protection: Hot-dip galvanised
