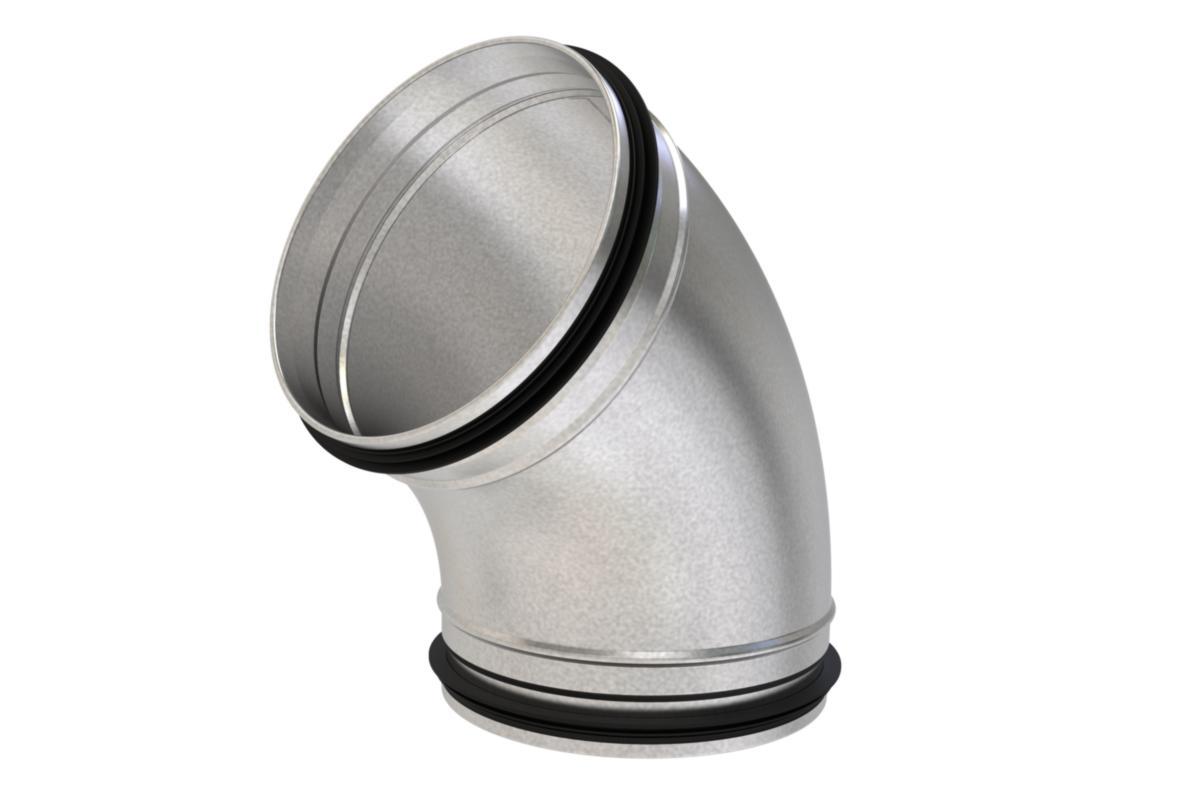

Bend HV-60°, Hallström
BEND HV 100-60 HALLSTRÖM
Article number: Suppl. article no:
9940642
DD10003
to see price and stock
Bend HV-60°. VENT components for ventilation systems, segment-built or pressed depending on size.
Dimensions and tolerances according to standard SS-EN 1506. The components are made of hot-dip galvanized steel sheet DX51 + Z275MAC according to SS-EN 10346.
Surface coating with Z275 meets corrosion class C3 according to SS-EN ISO 12944-2. Duct systems meet tightness class D according to SS-EN 12237.
The system's components have sealing rings made of EPDM rubber.
Type approval 1666/78
Dimensions and tolerances according to standard SS-EN 1506. The components are made of hot-dip galvanized steel sheet DX51 + Z275MAC according to SS-EN 10346.
Surface coating with Z275 meets corrosion class C3 according to SS-EN ISO 12944-2. Duct systems meet tightness class D according to SS-EN 12237.
The system's components have sealing rings made of EPDM rubber.
Type approval 1666/78
- Article number: 9940642
- Suppl. article no: DD10003
- Ean no: 7332460075414
- Material class PNH340
Technical data
- Nominal duct diameter: 100 mm
- Bend angle: 60 °
- Outer surface protection: Hot-dip galvanised
- Material duct: Steel
- Inner surface protection: Hot-dip galvanised
- Bend model: Smooth bend
