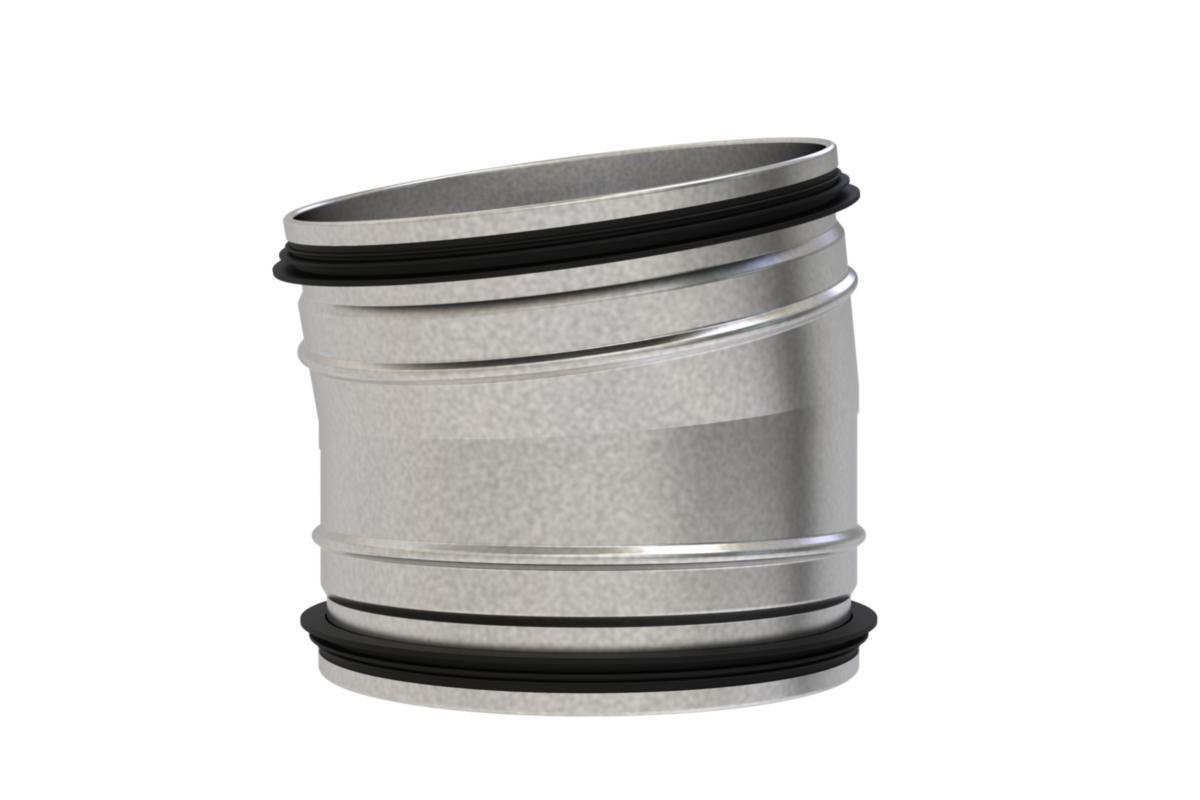

Bend HV-15°, Hallström
BEND HV 80-15 HALLSTRÖM
Article number: Suppl. article no:
9940620
DE10002
to see price and stock
Bend HV-15°. VENT components for ventilation systems, segment-built or pressed depending on size.
Dimensions and tolerances according to standard SS-EN 1506. The components are made of hot-dip galvanized steel sheet DX51 + Z275MAC according to SS-EN 10346.
Surface coating with Z275 meets corrosion class C3 according to SS-EN ISO 12944-2. Duct system meets tightness class D according to SS-EN 12237.
The system's components have sealing rings made of EPDM rubber.
Type approval 1666/78
Dimensions and tolerances according to standard SS-EN 1506. The components are made of hot-dip galvanized steel sheet DX51 + Z275MAC according to SS-EN 10346.
Surface coating with Z275 meets corrosion class C3 according to SS-EN ISO 12944-2. Duct system meets tightness class D according to SS-EN 12237.
The system's components have sealing rings made of EPDM rubber.
Type approval 1666/78
- Article number: 9940620
- Suppl. article no: DE10002
- Ean no: 7332460075537
- Material class PNH340
Technical data
- Packagin Size: 1 PCS/30 PCS
- Nominal duct diameter: 80 mm
- Bend angle: 15 °
- Outer surface protection: Hot-dip galvanised
- Material duct: Steel
- Inner surface protection: Hot-dip galvanised
- Bend model: Smooth bend
