Roof and Wall Connector HTPM Socket, Hallström
WALL COUPLING HTPM 100 SLEEVE HALLSTRÖM
Article number: Suppl. article no:
9941586
RH10003
to see price and stock

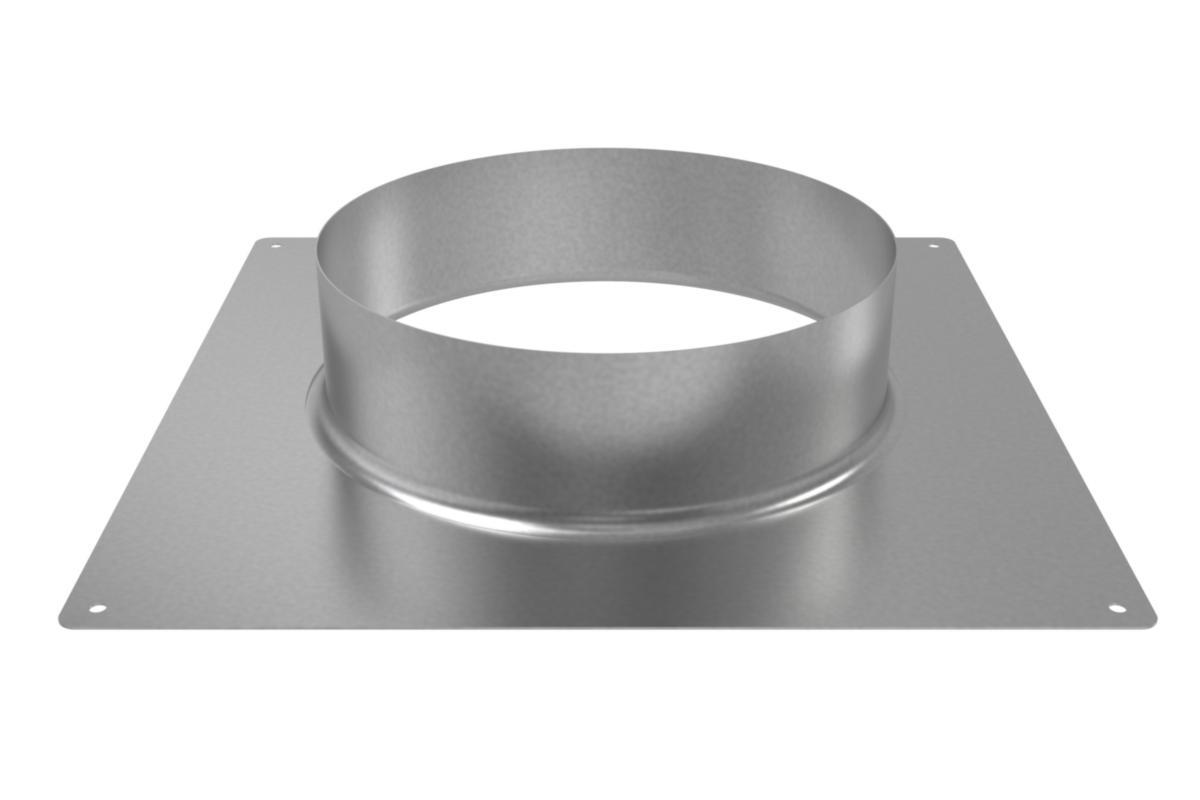

HTPM is a roof and wall collar with socket dimensions. The size of the plate is: 250x250 mm. VENT details for ventilation systems.
Dimensions and tolerances according to standard SS-EN 1506. The details are made of hot-dip galvanized steel sheet DX51 + Z275MAC according to SS-EN 10346.
Surface coating with Z275 meets corrosion class C3 according to SS-EN ISO 12944-2. The duct system meets tightness class D according to SS-EN 12237.
The system's components have sealing rings made of EPDM rubber.
Type approval 1666/78
Dimensions and tolerances according to standard SS-EN 1506. The details are made of hot-dip galvanized steel sheet DX51 + Z275MAC according to SS-EN 10346.
Surface coating with Z275 meets corrosion class C3 according to SS-EN ISO 12944-2. The duct system meets tightness class D according to SS-EN 12237.
The system's components have sealing rings made of EPDM rubber.
Type approval 1666/78
- Article number: 9941586
- Suppl. article no: RH10003
- Ean no: 7332460119972
- Material class PNH340
Technical data
- Packagin Size: 1 PCS/30 PCS
- Nominal duct diameter: 100 mm
- Material: Steel
- Surface protection: Galvanised
- Connection branch: Duct end
