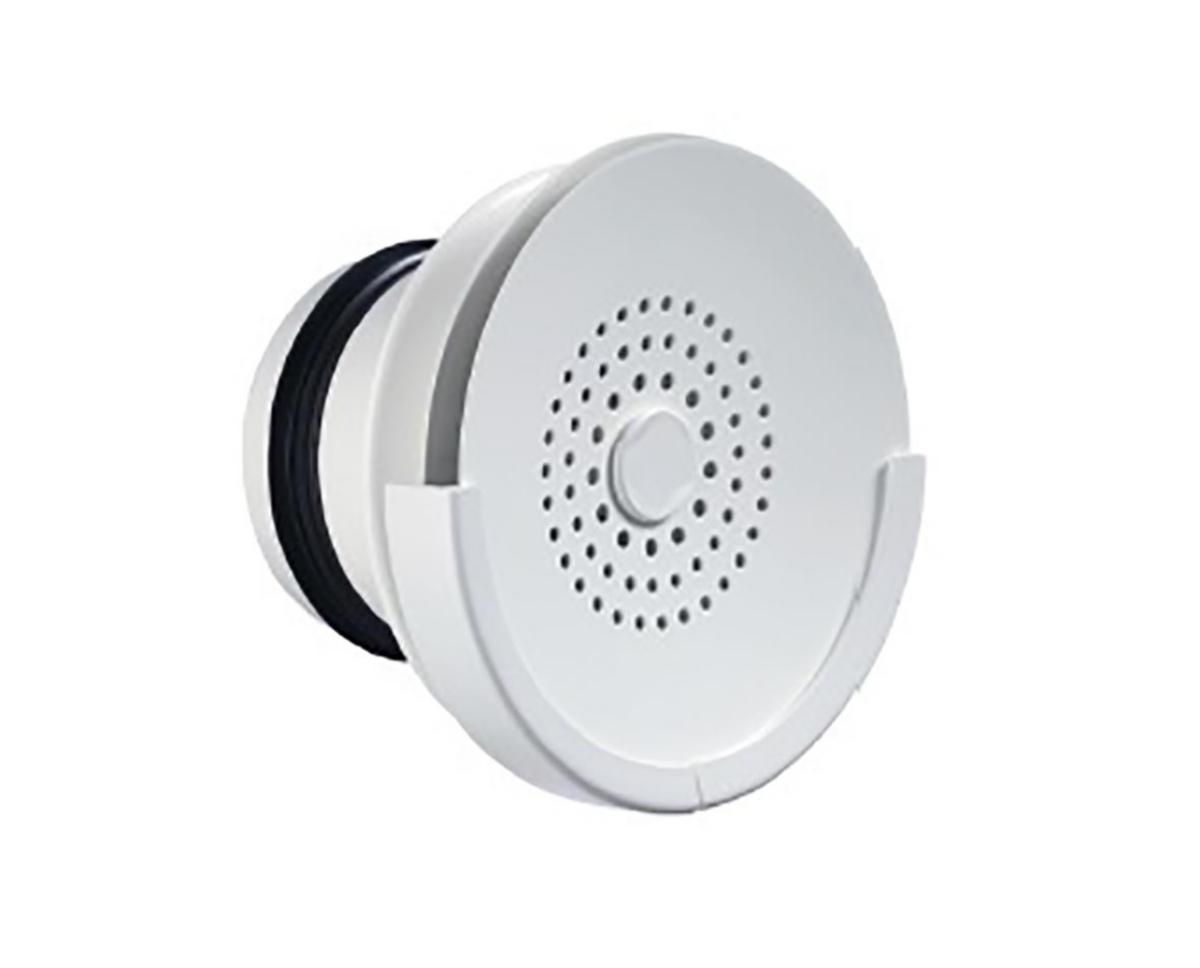

Supply air diffuser STI-C for wall mounting, FläktGroup

STI-C is available in four sizes from 100 to 200 mm. KTI-C’s special feature is that it can be mounted directly, without the need for a mounting frame. It has an adjustable neck between 25-60 mm. The diffusion area can be set with the aid of the two air-flow deflectors supplied. Adjustment, measuring of the level and also locking of the setting can be made without removing the device from its position. The flow can be adjusted by covering parts of the perforation on the front using the attached shielding tag.
