FläktGroup

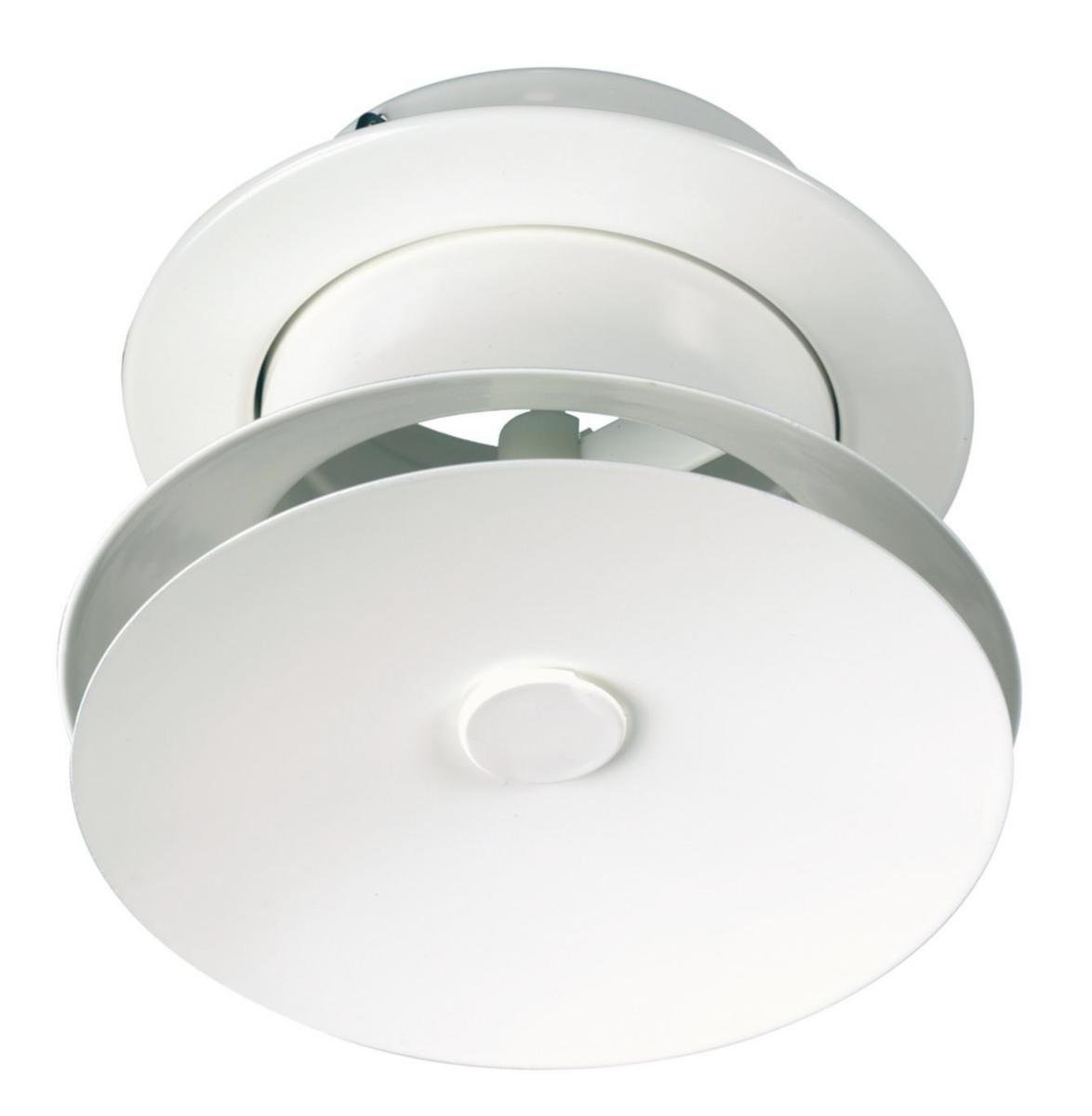

Supply air diffuser KTI-C, FläktGroup
SUPPLY VALVE KTI-125-C TAK CLEANVENT FLÄKTGROUP
Article number: Suppl. article no:
6620111C
KTI-125-C
to see price and stock
![Listad i Svanens husproduktportal Listad i Svanens husproduktportal](/globalassets/site-images/sv_icons/step/PropertyNordicSwanHouseProductPortal.png)
KTI-C is available in four sizes from 100 to 200 mm. The special feature of KTI-C is that it can be fitted in directly, without mounting frame. It has an adjustable neck between 25-60 mm. The diffusion area can be set with the aid of the two air-flow deflectors supplied. Adjustment, measuring of the level and also locking of the setting can be made without removing the device from its position.
- Article number: 6620111C
- Suppl. article no: KTI-125-C
- Ean no: 641746103016, 6417461030165
- Replaces art.nbr: 6620111
- Material class PNJ11A
Technical data
- Packagin Size: 1 ST/10 ST
- Connection diameter: 125 mm
- Air flow at sound level 35 dBA: 56 l/s
- Colour: White RAL 9003
- Outer diameter: 185 mm
