REC Indovent
Transfer unit RW60, REC Indovent

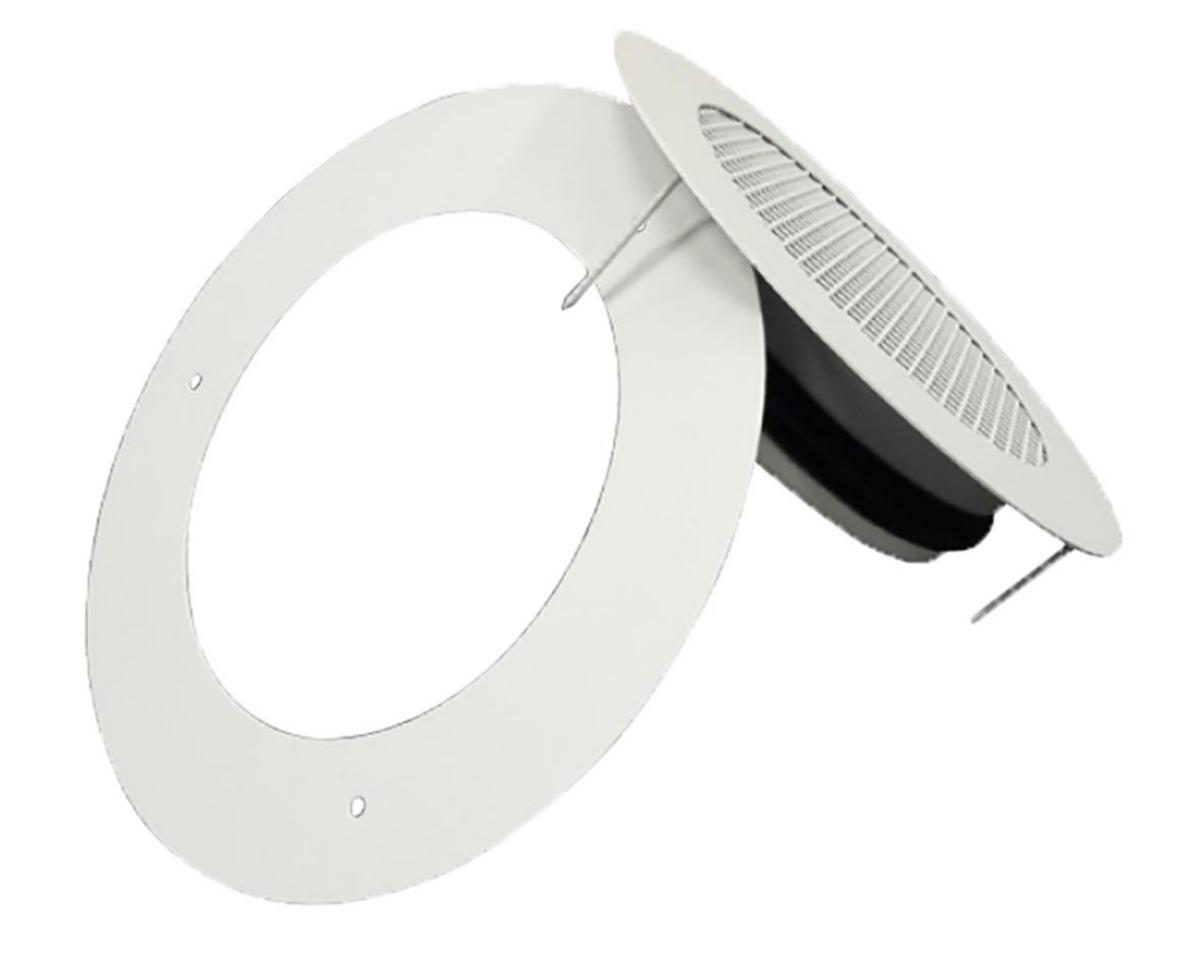

TRANSFER UNIT RW60-TV 125 COMPLETE ROOF WALL, REC
Article number: Suppl. article no:
6521020
70054125
to see price and stock


RW60 is a noise reducing excess air device that ensures that the sound value of the wall is maintained. With RW60, you'll get a complete solution with silencers and under ceiling units that meet all sound requirements when high noise reduction is required. RW60 meets the over hearing requirements for transfer air in all buildings that are up to sound class A.
The air duct has been developed to provide very good noise reduction with low pressure drop as well as the greatest possible combination of mounting flexibility while providing high airflow (up to 50 l / s) through high free area and very good noise reduction.
Well suited for use in schools, offices, hospitals, laundry rooms or in other areas where there is a sound dampening requirement for the wall.
The air duct has been developed to provide very good noise reduction with low pressure drop as well as the greatest possible combination of mounting flexibility while providing high airflow (up to 50 l / s) through high free area and very good noise reduction.
Well suited for use in schools, offices, hospitals, laundry rooms or in other areas where there is a sound dampening requirement for the wall.
- Article number: 6521020
- Suppl. article no: 70054125
- Material class PNJ28A
Technical data
- Packagin Size: 1 ST/16 ST/36 ST
- Connection diameter: 125 mm
- Outer diameter: 175 mm
- Height: 36 mm
- Design: Roof wall
- Colour: White RAL 9003
